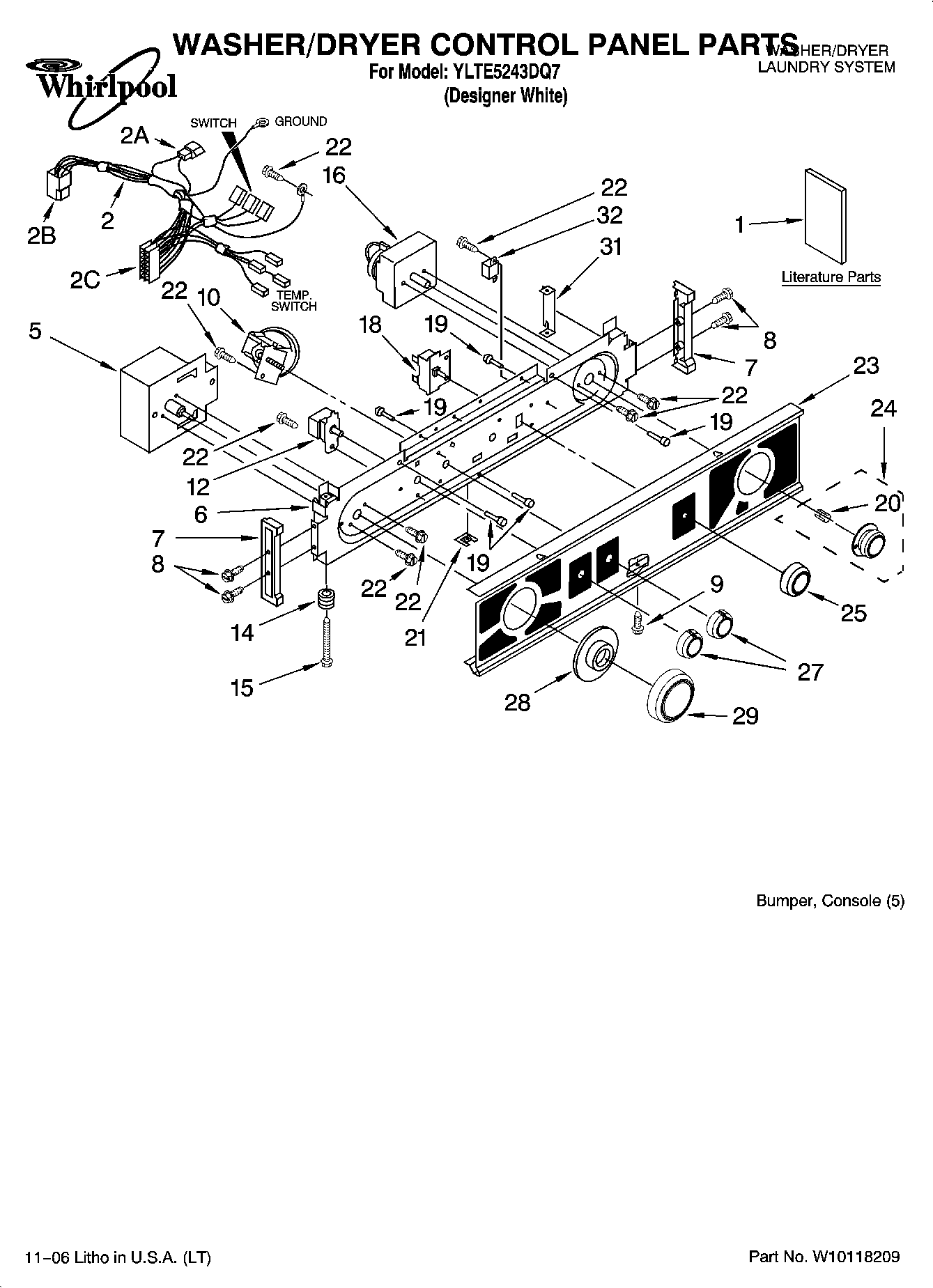

YLTE5243DQ7 01 – WASHER/DRYER CONTROL PANEL PARTS

YLTE5243DQ7 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YLTE5243DQ7 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
2Harness, Console Wiring (Automatic) (Includes Illus. 2A, 2B & 2C)
2B696073 Whirlpool Connector
2CTimer, Block Disconnect (White)
2A3350130 Whirlpool Connector
5WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10WP3362987 Whirlpool Washer Water Level Switch
12WP8054142 Whirlpool Temperature Switch
14WP693151 Whirlpool Lock Spring
15WP3400860 Whirlpool Screw
16WP3406720 Whirlpool Timer
18WP3977456 Whirlpool Start Switch
19693152 Whirlpool Bumper
20WP688805 Whirlpool Spring Clip
21694037 Whirlpool Clip
22Screw, (8-18 x 5/16)
23Panel, Control
24WP3957752 Whirlpool Knob
25WP3957800 Whirlpool Knob
27WP3957796 Whirlpool Knob
28WP3957841 Whirlpool Dial
29W10807860 Whirlpool White Control Knob
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
