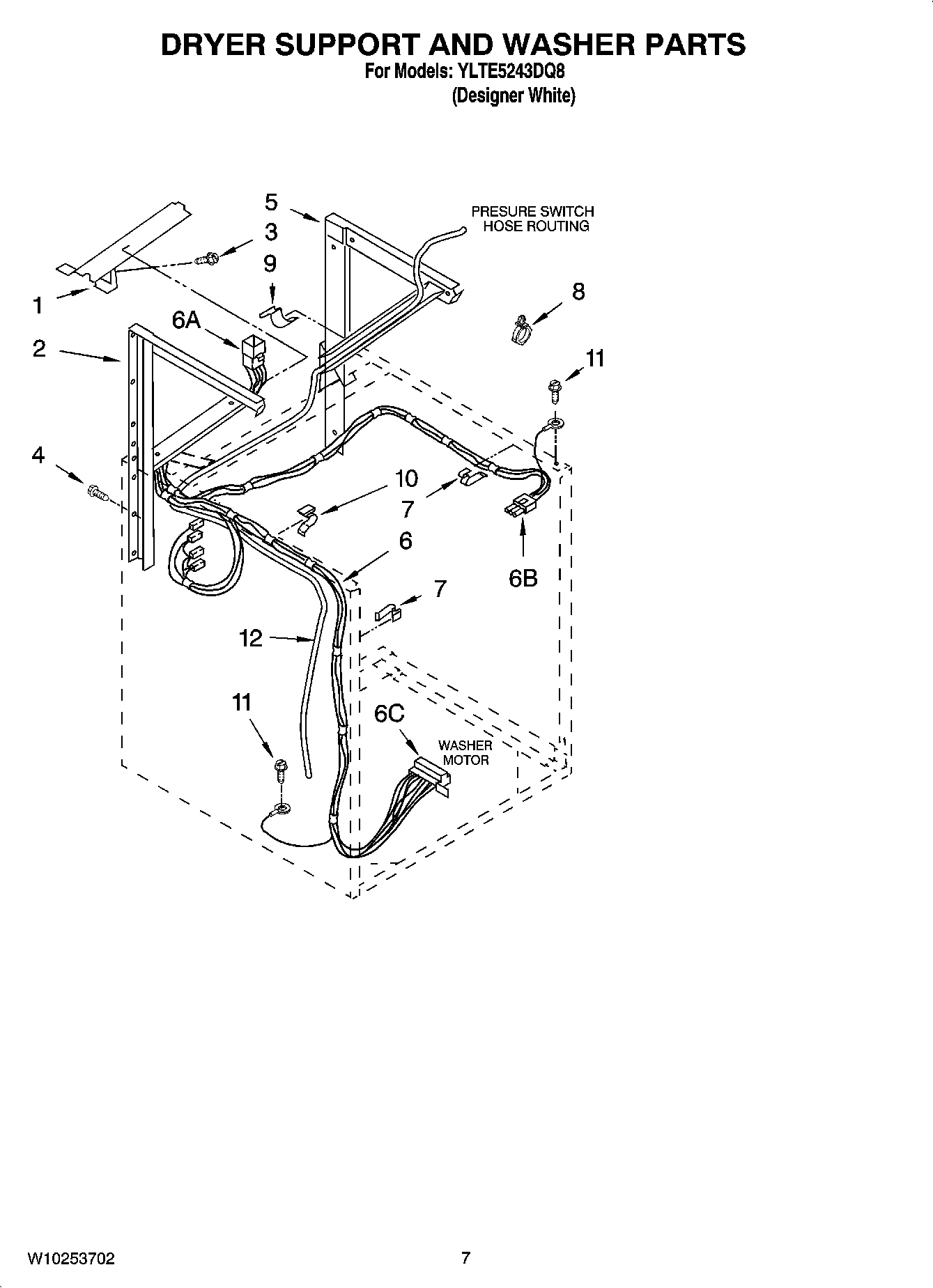

YLTE5243DQ8 05 – DRYER SUPPORT AND WASHER PARTS

Products

Position	Product
1	694304 Whirlpool Channel Cover
2	W11174025 Whirlpool Support Assembly
3	SCREW
4	W11676450 Whirlpool Screw
5	W11174024 Whirlpool Support
6	3957867 Whirlpool Wire Harness
6A	Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6C	WP62505 Whirlpool Connector
7	8528351 Whirlpool Clip
8	8559320 Whirlpool Clip
9	WP90016 Whirlpool Clip
10	CLIP
11	WP3351614 Whirlpool Screw
12	WP353244 Whirlpool Hose
