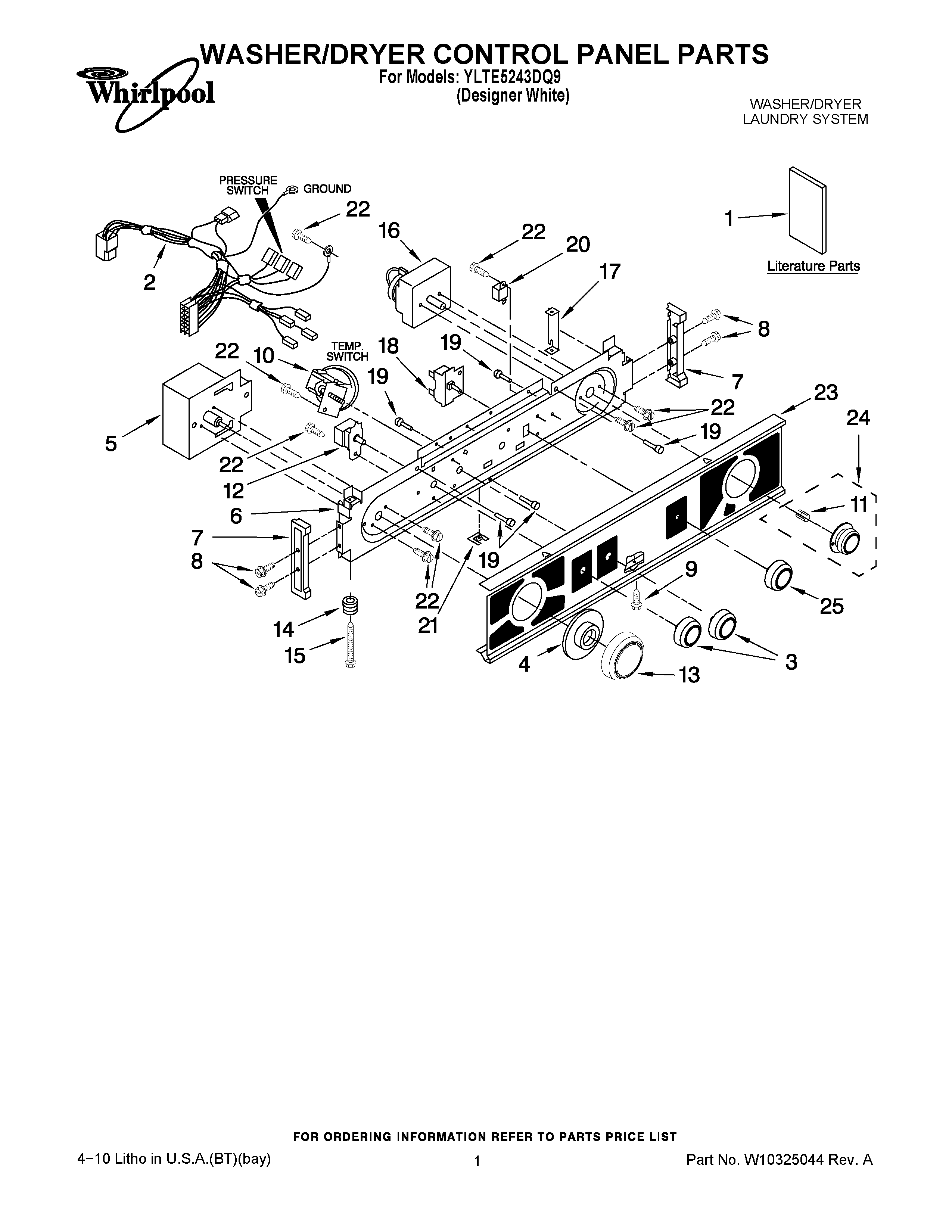

YLTE5243DQ9 01 – WASHER/DRYER CONTROL PANEL PARTS

YLTE5243DQ9 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

YLTE5243DQ9 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
1Sheet, Cycle Feature
2WPW10278751 Whirlpool Wire Harness
3WP3957796 Whirlpool Knob
4WP3957841 Whirlpool Dial
5WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10WPW10231404 Whirlpool Washer Water Level Switch
11WP688805 Whirlpool Spring Clip
12WP8054142 Whirlpool Temperature Switch
13W10807860 Whirlpool White Control Knob
14WP693151 Whirlpool Lock Spring
15WP3400860 Whirlpool Screw
16WP3406720 Whirlpool Timer
17WP692983 Whirlpool Console Lock
18WP3977456 Whirlpool Start Switch
19693152 Whirlpool Bumper
20WP694419 Whirlpool Buzzer Adjuster
21694037 Whirlpool Clip
22WP90767 Whirlpool Screw
23Panel, Control
24WP3957752 Whirlpool Knob
25WP3957800 Whirlpool Knob
