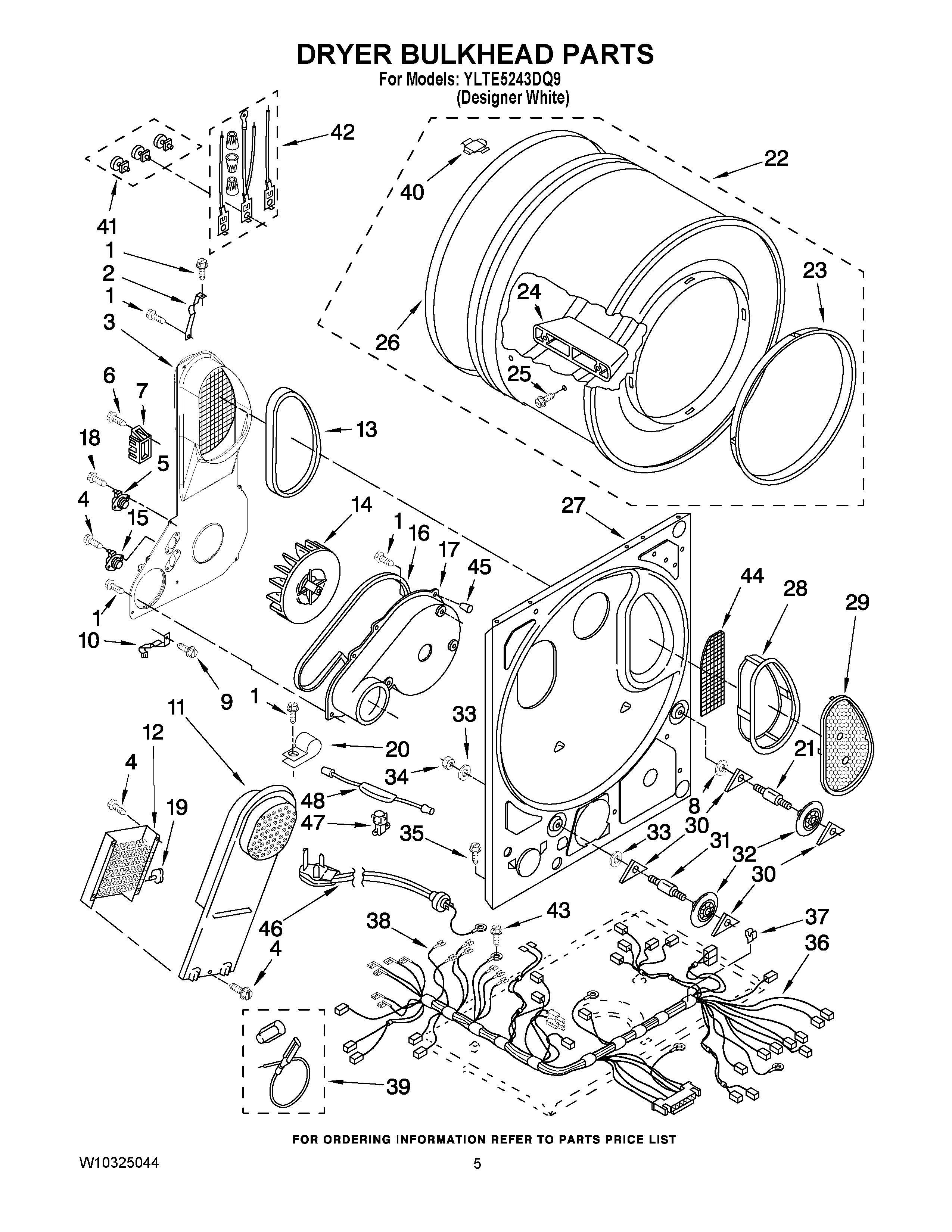

YLTE5243DQ9 04 – DRYER BULKHEAD PARTS

YLTE5243DQ9 04 – DRYER BULKHEAD PARTS

Written by

in

YLTE5243DQ9 04 – DRYER BULKHEAD PARTS

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3Air Duct & Bracket
4WP90767 Whirlpool Screw
5THRMST-FIX
6WP308685 Whirlpool Microwave Screw
7WP3397659 Whirlpool Terminal Block
8WP3388703 Whirlpool Washer
9WP489463 Whirlpool Refrigerator Screw
10279771 Whirlpool Clip
11WP3401380 Whirlpool Box
12WP279843 Whirlpool Heating Element
13SEAL
14WP696426 Whirlpool Wheel
15WP8572767 Whirlpool Cutoff TML
168066094 Whirlpool Seal
17WP696418 Whirlpool Fan Scroll
18WP488729 Whirlpool Refrigerator Door Screw
19THRMST-FIX
20488946 Whirlpool Air Conditioner Clamp
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25W10853898 Whirlpool Screw
26SEAL
27279848 Whirlpool Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP3359452 Whirlpool Nut
35WP3390631 Whirlpool Screw
368299819 Whirlpool Wire Harness
37CLIP
38WP94614 Whirlpool Terminal
39279457 Whirlpool Dryer Heating Element Wide Spade Connection
408066086 Whirlpool Plug
41279393 Whirlpool Terminal Block Screw and Nut Kit
42279318 Whirlpool Terminal
43W10850756 Whirlpool Screw
44Screen, Back-Up
45W10491983 Whirlpool Tine Tip
46WPL W10237089
47687000 Whirlpool Connector
48279872 Whirlpool Resistor
