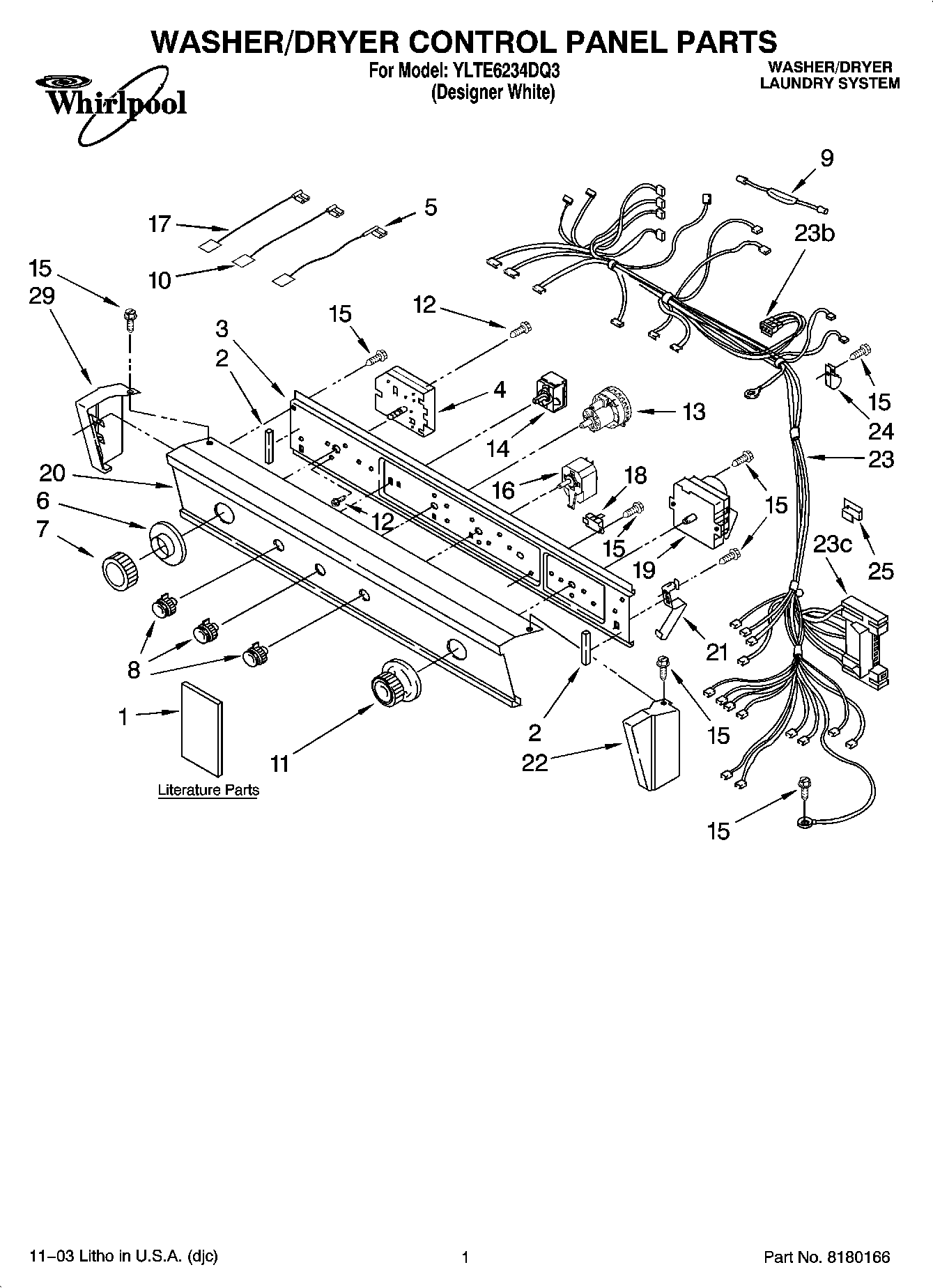

YLTE6234DQ3 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Energy Guide)
2	3390688 Whirlpool Bumper Assembly
3	W10732070 Whirlpool Bracket
4	WP3948357 Whirlpool Timer Assembly
5	Wire, Jumper (Black)
6	Dial (Washer)
7	WP3364293 Whirlpool Timer Knob
8	WP3957796 Whirlpool Knob
9	279872 Whirlpool Resistor
10	Wire, Jumper (Black)
11	WP3957750 Whirlpool Knob
12	WP3400064 Whirlpool Screw
13	Switch, Pressure
14	Switch, Temperature
15	WP90767 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
17	Wire, Jumper (Blue)
18	WP694419 Whirlpool Buzzer Adjuster
19	WP3976569 Whirlpool Timer
20	Panel, Control
21	3389453 Whirlpool Hinge Assembly
22	End Cap (RH)
23	Harness - Dryer
23C	3395683 Whirlpool Connector
23B	Receptacle,
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
29	End Cap (LH)
