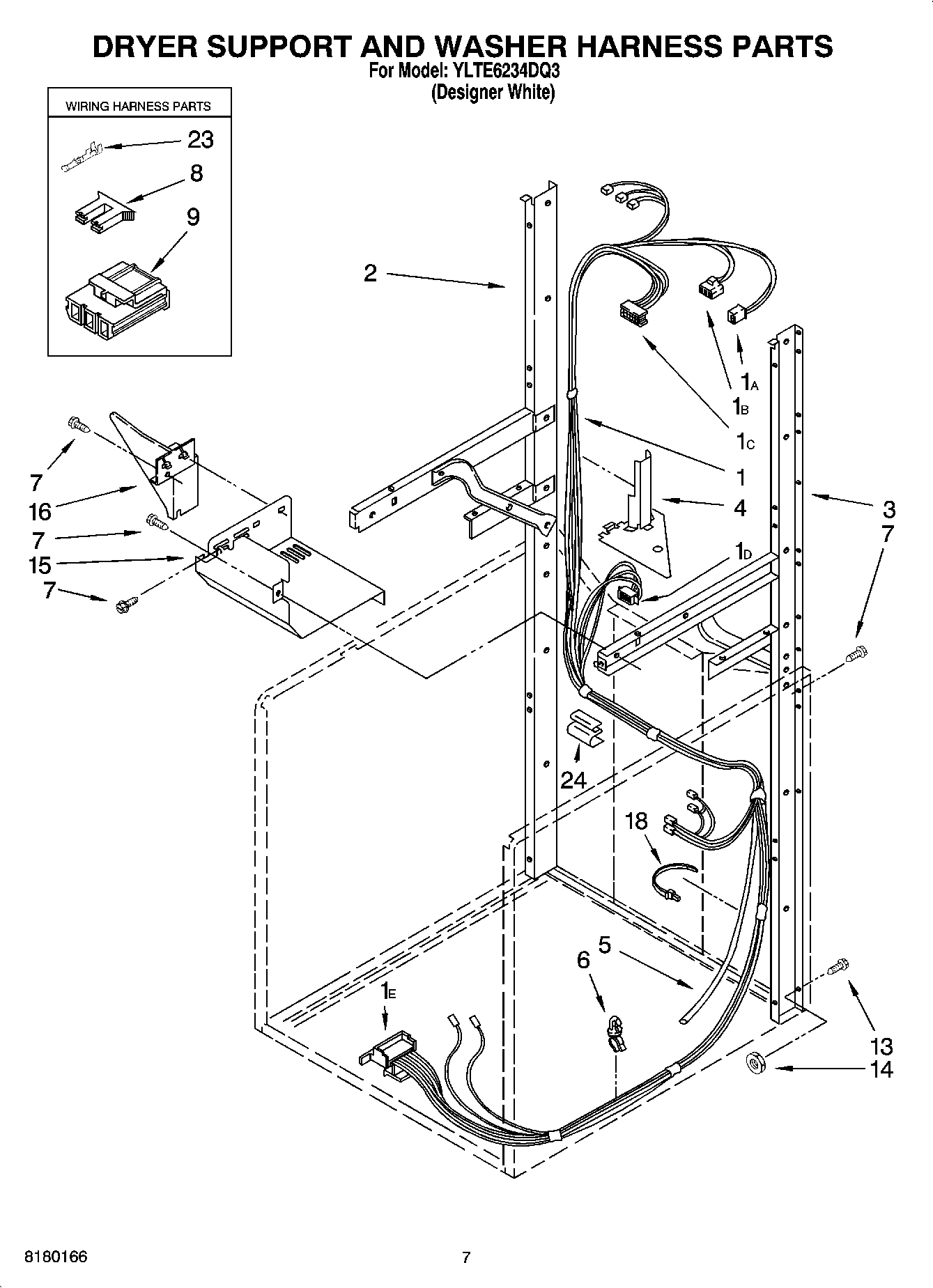

YLTE6234DQ3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

YLTE6234DQ3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

YLTE6234DQ3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
1DReceptacle, 3 Way
1A3350130 Whirlpool Connector
1EWP62505 Whirlpool Connector
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
83354925 Whirlpool Connector
9WP3360056 Whirlpool Connector
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
18Tie, Cable
23WP596797 Whirlpool Terminal
23WP94614 Whirlpool Terminal
24Protector, Harness
