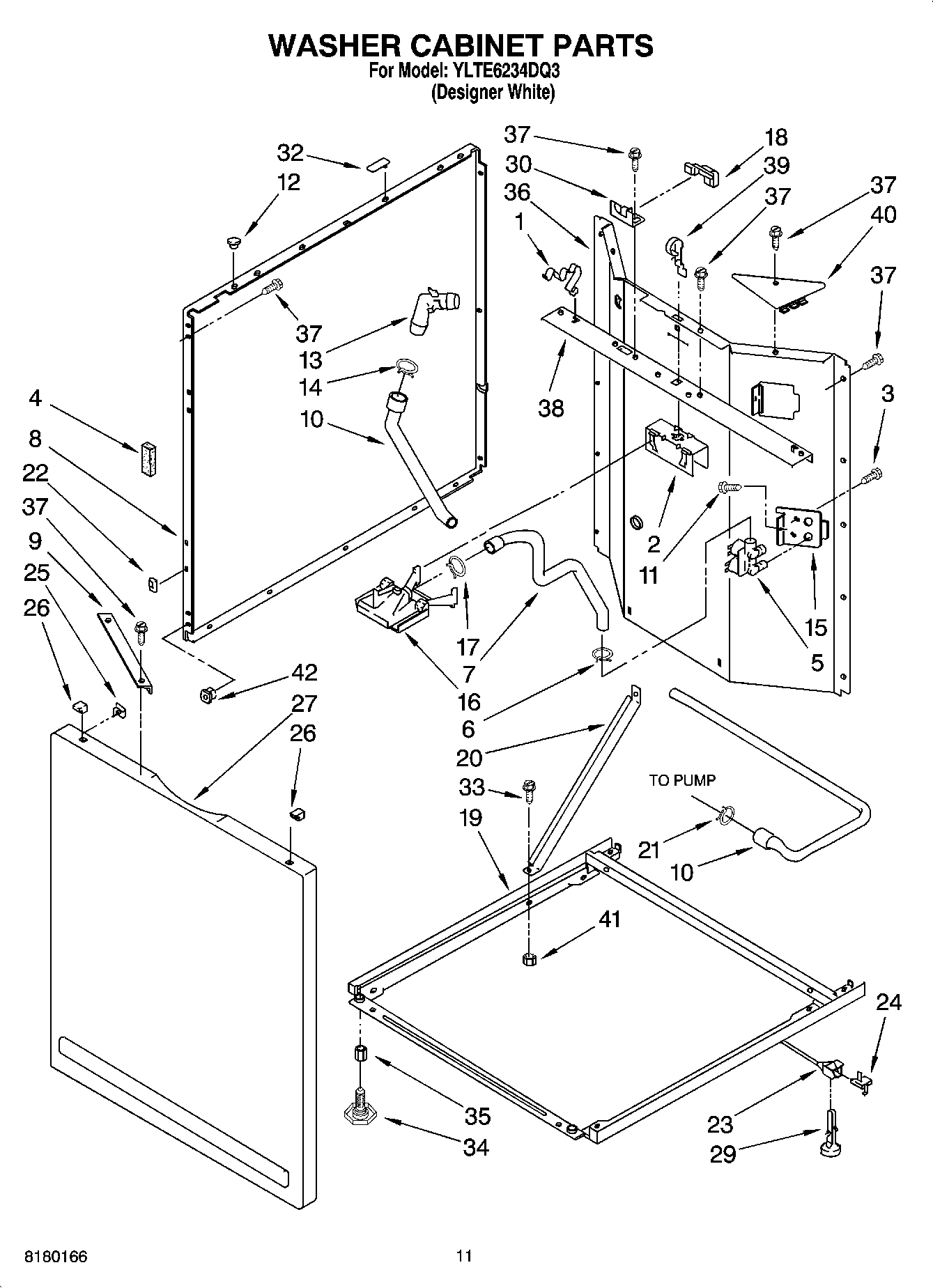

YLTE6234DQ3 07 – WASHER CABINET PARTS

Products

Position	Product
1	3349770 Whirlpool Clip
2	3349767 Whirlpool Bracket Assembly
3	WP3390631 Whirlpool Screw
4	3350013 Whirlpool Foam Seal
5	WP3952162 Whirlpool Valve Assembly
6	WP596669 Whirlpool Hose Clamp
7	3352236 Whirlpool Hose Assembly
8	WP3349455 Whirlpool Panel
9	3350744 Whirlpool Brace Assembly
10	Hose, Drain
11	WP9740848 Whirlpool Dishwasher Screw
12	WP660975 Whirlpool Button Plug
13	W11213338 Whirlpool Connector
14	WP356138 Whirlpool Hose Clamp
15	3349673 Whirlpool Bracket Assembly
16	WP3360977 Whirlpool Washer Tub Fill Nozzle
18	3350145 Whirlpool Shield Assembly
19	WP3402724 Whirlpool Washer Base
20	3388857 Whirlpool Bracket
21	WP371502 Whirlpool Clamp
22	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23	WP3349311 Whirlpool Link
24	WP359364 Whirlpool Clip
25	WP98234 Whirlpool Nut
26	WP345670 Whirlpool Lock
27	WP3349499 Whirlpool Panel
29	WP358594 Whirlpool Leveling Feet
30	3350144 Whirlpool Bracket
33	Bolt, 5/16-18 x 1/2
34	WPW10001130 Whirlpool Leveling Leg
35	3400917 Whirlpool Nut
36	8564987 Whirlpool Panel
37	SCREW
38	3349697 Whirlpool Back Rail
39	SPRING-LVR
40	3390608 Whirlpool Shield Assembly
41	Nut, Hex (4)
42	NUT, PUSH IN
