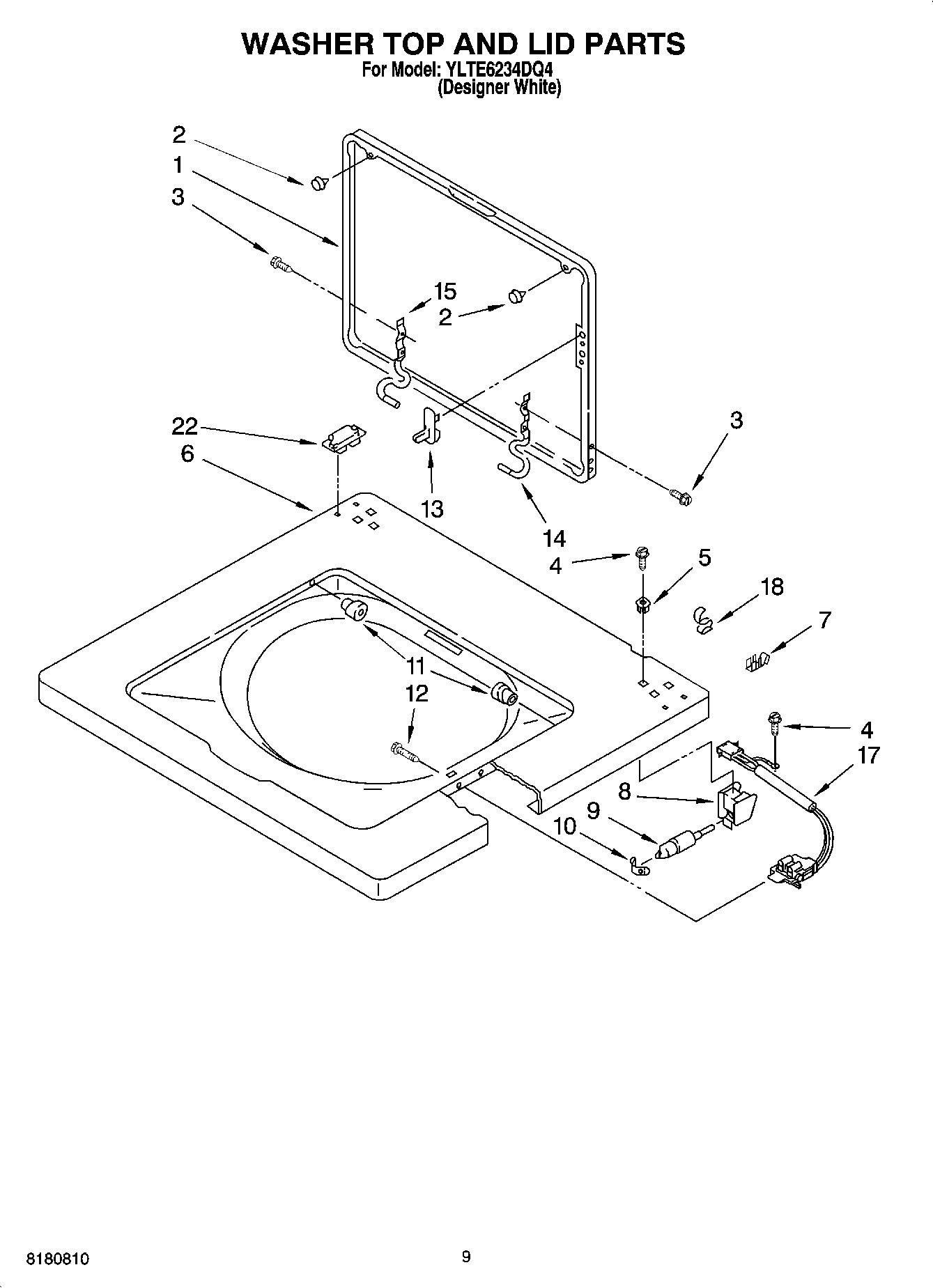

YLTE6234DQ4 06 – WASHER TOP AND LID PARTS

Products

Position	Product
1	Lid (White)
2	WP9724509 Whirlpool Bumper
3	SCREW
4	SCREW
5	WP692400 Whirlpool Nut
6	Top
7	W10113937 Whirlpool Clamp
8	3354020 Whirlpool Bracket
9	WP3350152 Whirlpool Retainer
10	Clip, Retainer
11	WP21258 Whirlpool Washer Lid Hinge Bearing
12	WP3356311 Whirlpool Screw
13	WP358684 Whirlpool Strike Assembly
14	3350101 Whirlpool Hinge
15	3350102 Whirlpool Hinge Assembly
17	WP3355458 Whirlpool Lid Switch
18	WP90016 Whirlpool Clip
22	W11116924 Whirlpool Locator
