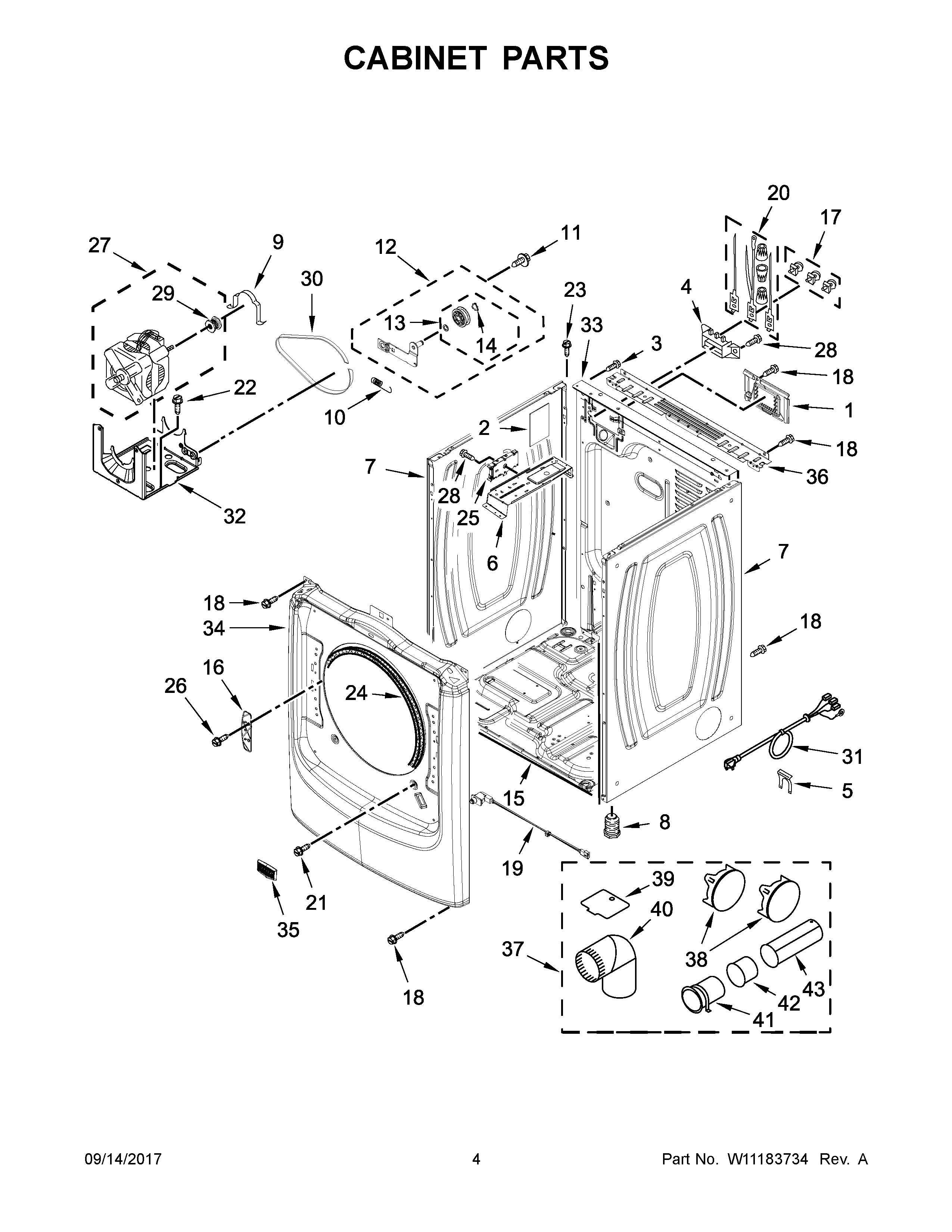

YMED3500FW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	SCREW
4	MAY 3397659
5	STRAIN-RELIEF CLIP
6	MAY W10259611
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	ASSEMBLY, IDLER
13	MAY W10468057
14	WASHER, TRI RING
15	MAY 8565046
16	MAY W10208250
17	MAY 279393
18	SCREW
19	DOOR SWITCH, SNAP IN
20	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
21	SCREW
22	SCREW
23	SCREW
24	MAY 3387242
25	BOARD, CONTROL
26	MAY W10288126
27	ASSEMBLY, MOTOR
28	Screw
29	Pulley, Motor
30	MAY W10112954
31	CORD, POWER
32	MAY W10242878
33	MAY W10487431
34	PANEL, FRONT (WHITE)
35	BADGE, MAYTAG
36	MAY W10208382
37	KIT, 4-WAY VENT
38	PLUG, MULTIVENT (MIDNIGHT GREY)
39	MAY W10354249
40	MAY W10416072
41	PIPE, EXHAUST (MEDIUM)
42	PIPE, EXHAUST (SHORT)
43	PIPE, EXHAUST (LONG)
