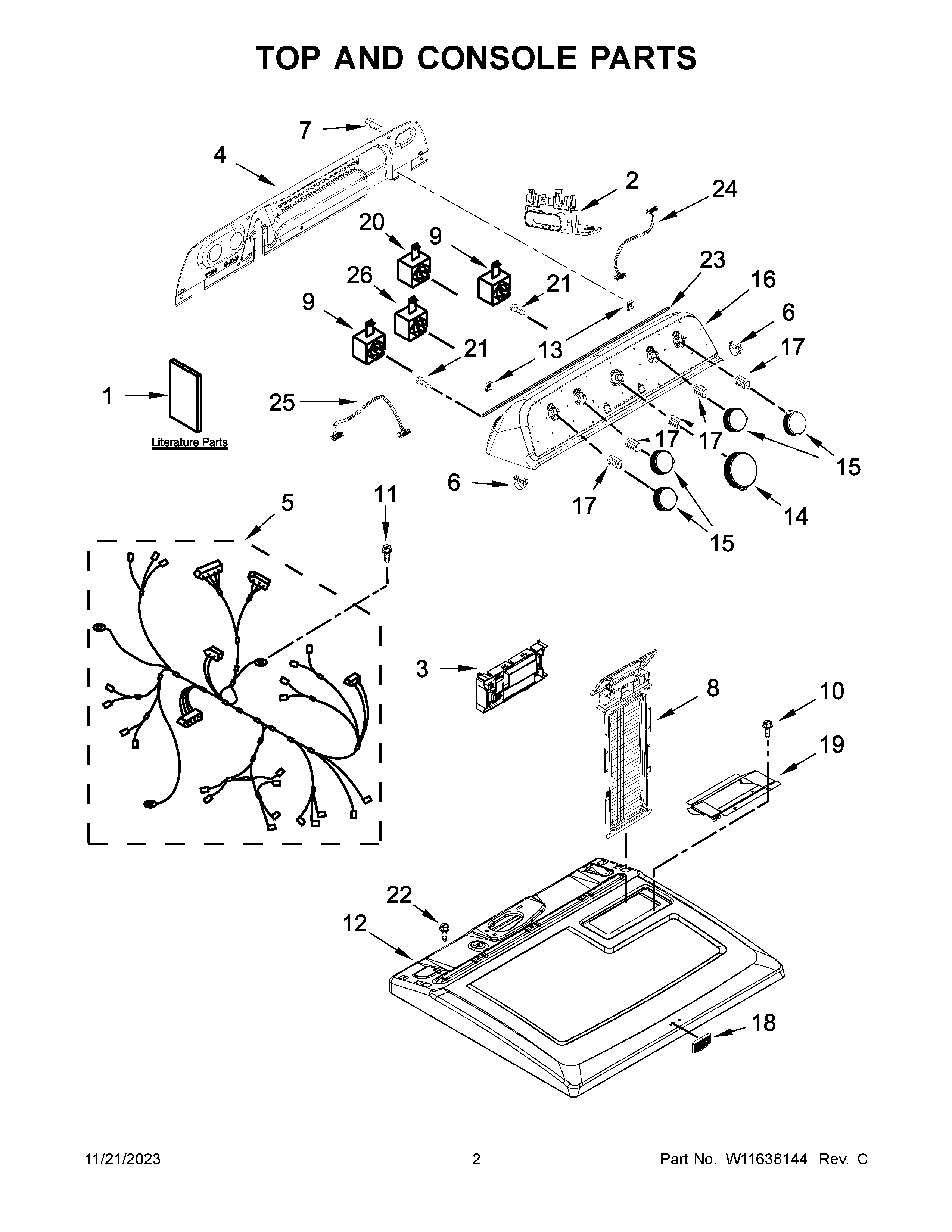

YMED5430MW0 02 – TOP AND CONSOLE PARTS

YMED5430MW0 02 – TOP AND CONSOLE PARTS

Written by

in

YMED5430MW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1ATECH SHEET
1BQUICK START GUIDE
2W11627417 Whirlpool Connector
3CNTRL-ELEC + CORE
4W10775189 Whirlpool Rear Panel
5HARNESS, MAIN
6WP8312709 Whirlpool Endcap Clip
7SCREW
8SCREEN
9W11168256 Whirlpool Cycle Switch
10W11693756 Whirlpool Screw Assembly
11WP90767 Whirlpool Screw
12W11222514 Whirlpool Top Assembly
13W11213336 Whirlpool Nut
14W11675852 Whirlpool Dryer Control Knob
15W11625514 Whirlpool Knob
16CONSOLE
17WP688805 Whirlpool Spring Clip
18WPW10612925 Whirlpool Microwave Nameplate
19W10662472 Whirlpool Cover Assembly
20WPW10414397 Whirlpool Cycle Switch
21WP9740848 Whirlpool Dishwasher Screw
23W11721376 Whirlpool Seal Assembly
24HARNESS, UPPER ENCODER RS
25HARNESS, UPPER ENCODER
26WPW10414398 Whirlpool Cycle Switch
