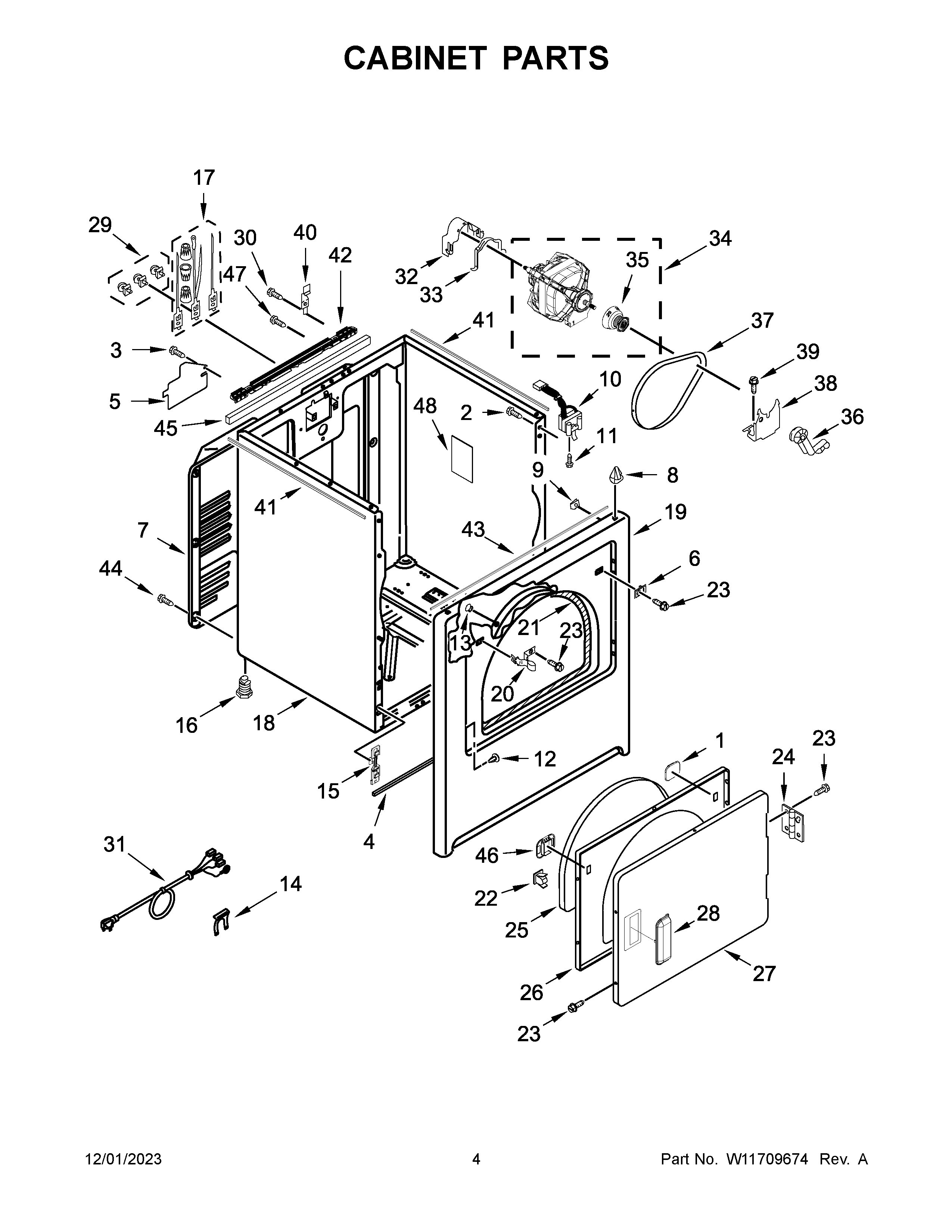

YMED5430PBK0 03 – CABINET PARTS

YMED5430PBK0 03 – CABINET PARTS

Written by

in

YMED5430PBK0 03 – CABINET PARTS

Products

PositionProduct
1W11173656 Whirlpool Cover
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4W11596046 Whirlpool Seal
5W11298298 Whirlpool Cover
6W11684591 Whirlpool Dryer Plug
7W11708115 Whirlpool Rear Panel
8WP8066092 Whirlpool Panel Clip
9WP98234 Whirlpool Nut
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12HINGE HOLE COVER (BLACK)
13279220 Whirlpool Clip
14W11712577 Whirlpool Clip
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16FEET-LVLNG (SET OF 4)
17279318 Whirlpool Terminal
18CABINET (BLACK)
19W11633281 Whirlpool Panel
20W11429589 Whirlpool Strike
21W11035878 Whirlpool Bearing and Seal
22W11429587 Whirlpool Catch Assembly
23WP488627 Whirlpool Refrigerator Screw
24HINGE
25SEAL-DOOR DRYER
26WPW10463967 Whirlpool Door Assembly
27W11633313 Whirlpool Door
28W11633280 Whirlpool Handle
29279393 Whirlpool Terminal Block Screw and Nut Kit
30W10850756 Whirlpool Screw
31W11710615 Whirlpool Cord-Power
32WP3404162 Whirlpool Clamp
33CLAMP
34279827 Whirlpool Dryer Drive Motor
35WP8066184 Whirlpool Dryer Motor Pulley
36WP691366 Whirlpool Dryer Idler Pulley Assembly
37341241 Whirlpool Dryer Drum Belt
38WP348780 Whirlpool Base
393400500 Whirlpool Screw
40W11715722 Whirlpool Hinge
41WPW10157932 Whirlpool Seal Foam
42W10641295 Whirlpool Bracket
43W10316619 Whirlpool Seal
44WP9740848 Whirlpool Dishwasher Screw
45W10685675 Whirlpool Seal
46WPW10529197 Whirlpool Catch Assembly
47SCREW
48W11409002 Whirlpool Pad
