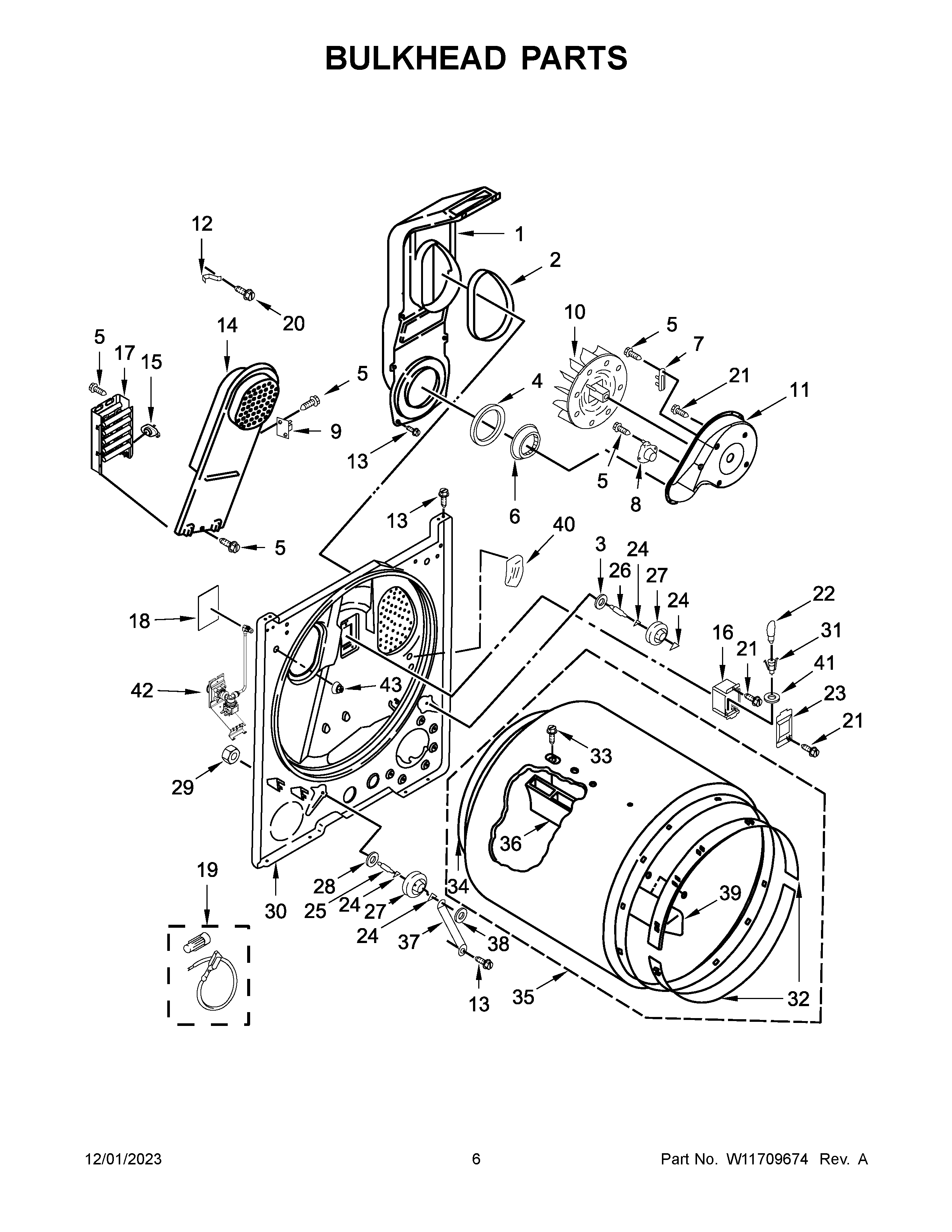

YMED5430PBK0 04 – BULKHEAD PARTS

YMED5430PBK0 04 – BULKHEAD PARTS

Written by

in

YMED5430PBK0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2SEAL
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP8577274 Whirlpool Dryer Thermistor
9W10900067 Whirlpool Dryer Cut-Off Timer
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13WP3390631 Whirlpool Screw
14W11676909 Whirlpool Dryer Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
18W11409002 Whirlpool Pad
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22WP22002263 Whirlpool Dryer 10W Light Bulb
23W11226088 Whirlpool Lens Assembly
24WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
25SHAFT SUPPORT ROLLER DRYER
26SHAFT SUPPORT ROLLER DRYER
27WPW10314173 Whirlpool Dryer Drum Support Wheel
28WP348197 Whirlpool Washer Assembly
29W11229607 Whirlpool Nut
30W11112242 Whirlpool Bulkhead Assembly
31W11222979 Whirlpool Socket
32279441 Whirlpool Front Bearing Ring
33W10853898 Whirlpool Screw
34W10612022 Whirlpool Felt Seal
35W10899578 Whirlpool Dryer Drum Assembly
36BAFFLE-DRM
37W11684613 Whirlpool Bracket
38WP90296 Whirlpool Clip
39WP3403636 Whirlpool Drum Baffle
40W11545746 Whirlpool Sensor
41SEAL, DRUM LIGHT
42W11267102 Whirlpool Valve
43W11230609 Whirlpool Nozzle
