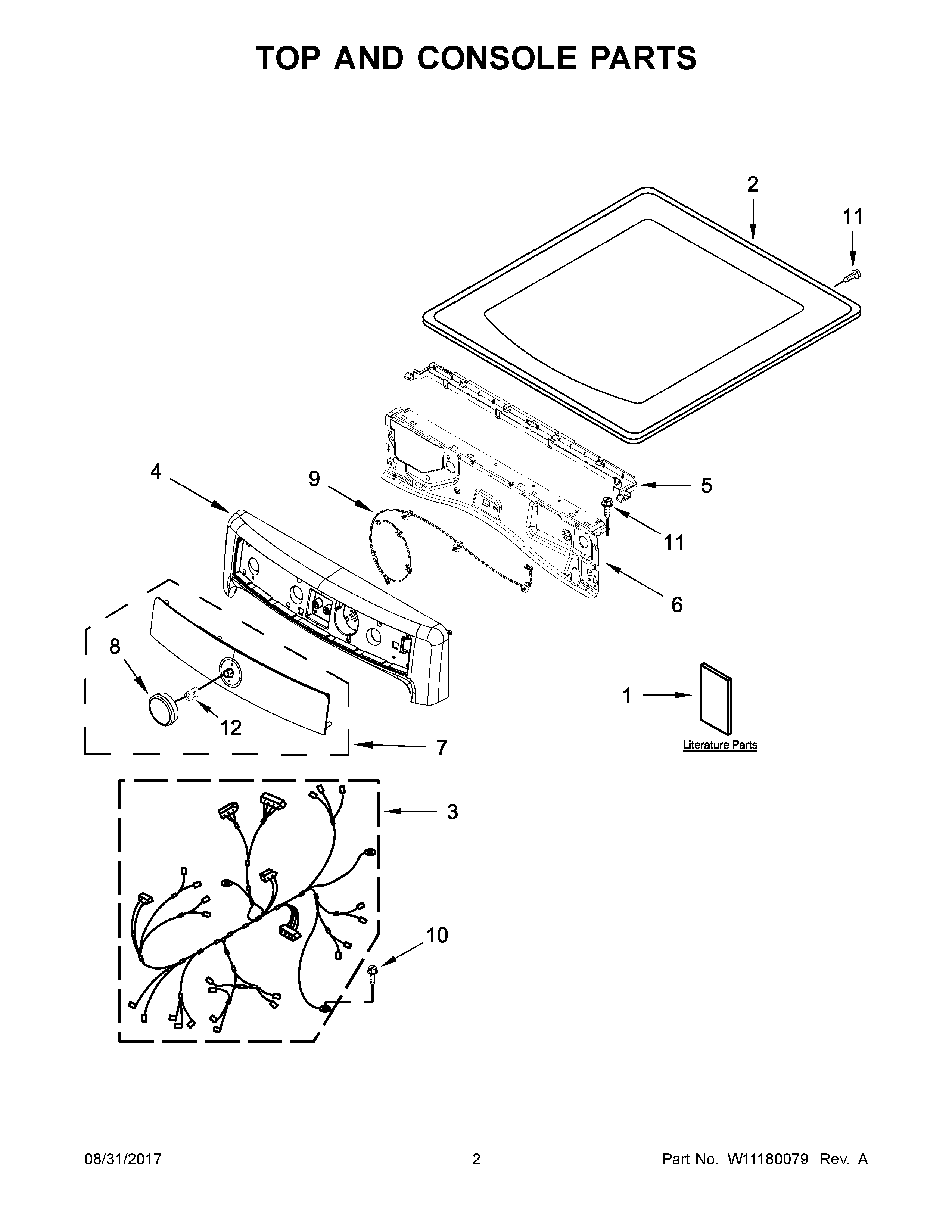

YMED5500FC1 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1D	QUICK START GUIDE
1B	INSTALLATION INSTRUCTIONS
1C	ENERGY GUIDE
1A	TECH SHEET
1	USE AND CARE GUIDE
2A	TOP (CHROME SHADOW)
2	MAY W10208383
3	MAY W10637534
4A	CONSOLE ASSEMBLY (CHROME SHADOW)
4	MAY W10391555
5	CHANNEL, WATER
6	MAY W10208198
7	MAY W10825121
7A	MAY W10825123
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540653
10	MAY W10489172
11	SCREW
12	CLIP, SPRING
