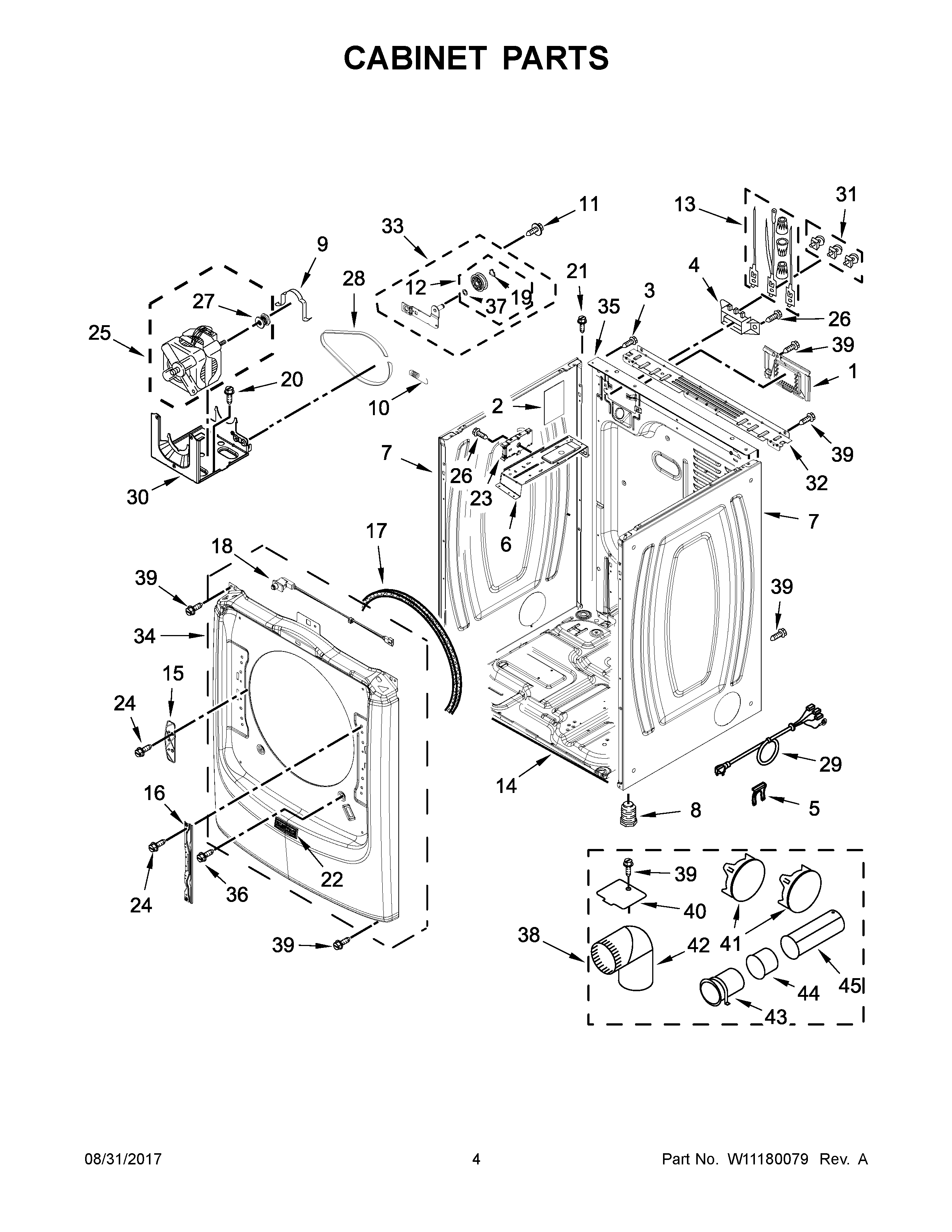

YMED5500FC1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	MAY W10504381
3	SCREW
4	MAY 3397659
5	STRAIN-RELIEF CLIP
6	MAY W10259611
7A	PANEL, SIDE (CHROME SHADOW)
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY W10468057
13	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
14	MAY 8565046
15	MAY W10208250
16	MAY W10315109
17	MAY 3387242
18	DOOR SWITCH, SNAP IN
19	WASHER, TRI RING
20	SCREW
21	SCREW
22	BADGE, MAYTAG
23	CONTROL BOARD
24	MAY W10288126
25	MAY W10806760
26	Screw
27	Pulley, Motor
28	MAY W10112954
29	CORD, POWER
30	MAY W10242878
31	MAY 279393
32	MAY W10208382
33	ASSEMBLY, IDLER
34A	PANEL, FRONT (COSMETALLIC)
34	PANEL, FRONT (WHITE)
35	MAY W10487430
36	SCREW
37	MAY W10121334
38	KIT, 4-WAY VENT
39	Screw
40	MAY W10354249
41	PLUG, MULTIVENT (MIDNIGHT GREY)
42	MAY W10416072
43	PIPE, EXHAUST (MEDIUM)
44	PIPE, EXHAUST (SHORT)
45	PIPE, EXHAUST (LONG)
