YMED5630HW2 02 – TOP AND CONSOLE PARTS

YMED5630HW2 02 – TOP AND CONSOLE PARTS

Written by

in

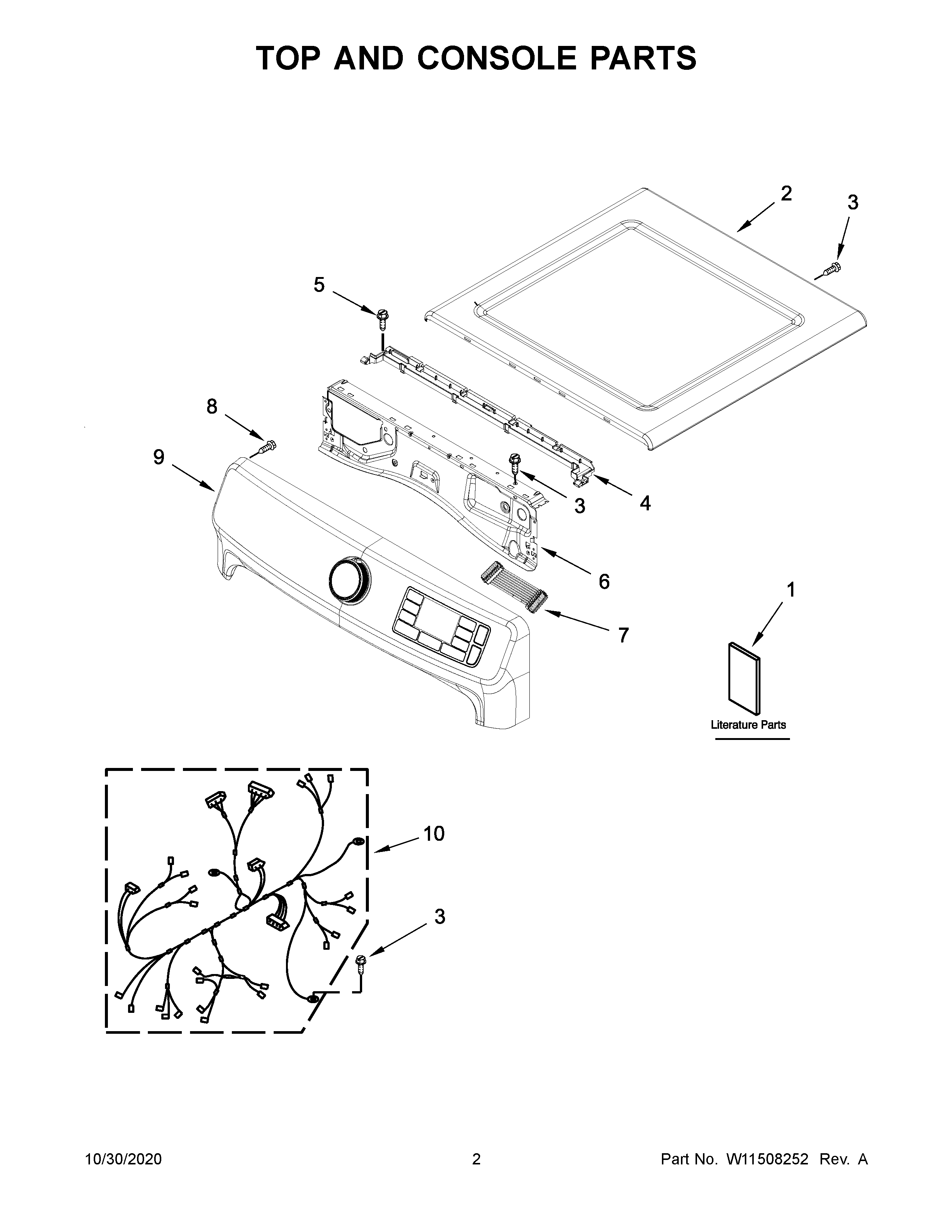

YMED5630HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICK START GUIDE
1BWIRING DIAGRAM
1ATECH SHEET
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11316625 Whirlpool Wire Harness
8WP8533993 Whirlpool Refrigerator Screw
9W11384511-includeCORE Whirlpool W11384511 Refrigerator Control Panel + Core
10HARNESS, WIRING (MAIN)
