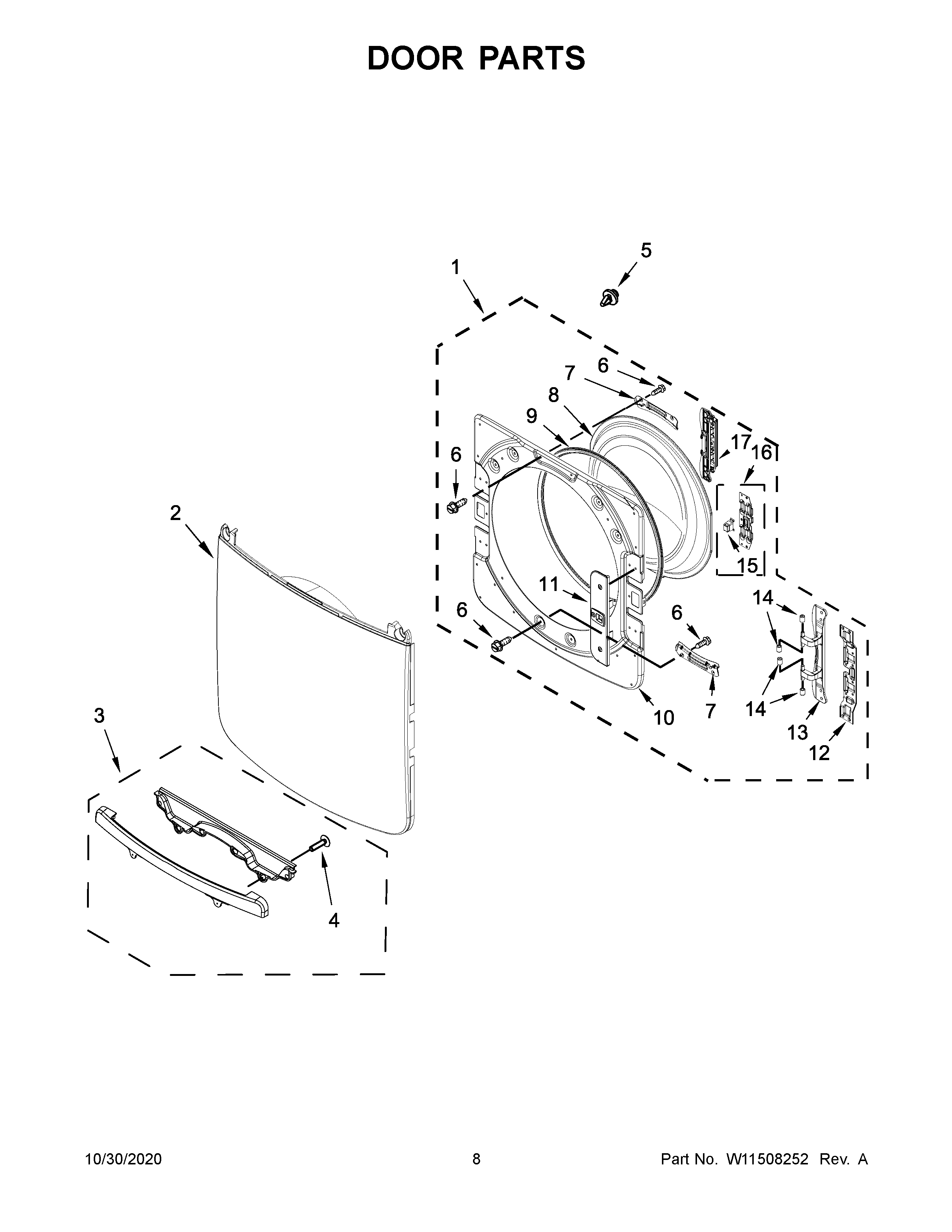

YMED5630HW2 05 – DOOR PARTS

Products

PositionProduct
1W11465962 Whirlpool Door Assembly
2W11310052 Whirlpool Door
3W10626039 Whirlpool Handle
4SCREW
5W11310051 Whirlpool Bumper
6SCREW
7BRACKET, GLASS
8W11310036 Whirlpool Door Glass
9W11310035 Whirlpool Seal
10W11491634 Whirlpool Door
11W11310050 Whirlpool Cover Assembly
12WPW10208419 Whirlpool Plate
13HINGE
14WPW10208398 Whirlpool Hinge Pin Cap
15W11240283 Whirlpool Catch Assembly
16WPW10208254 Whirlpool Catch
17HINGE
