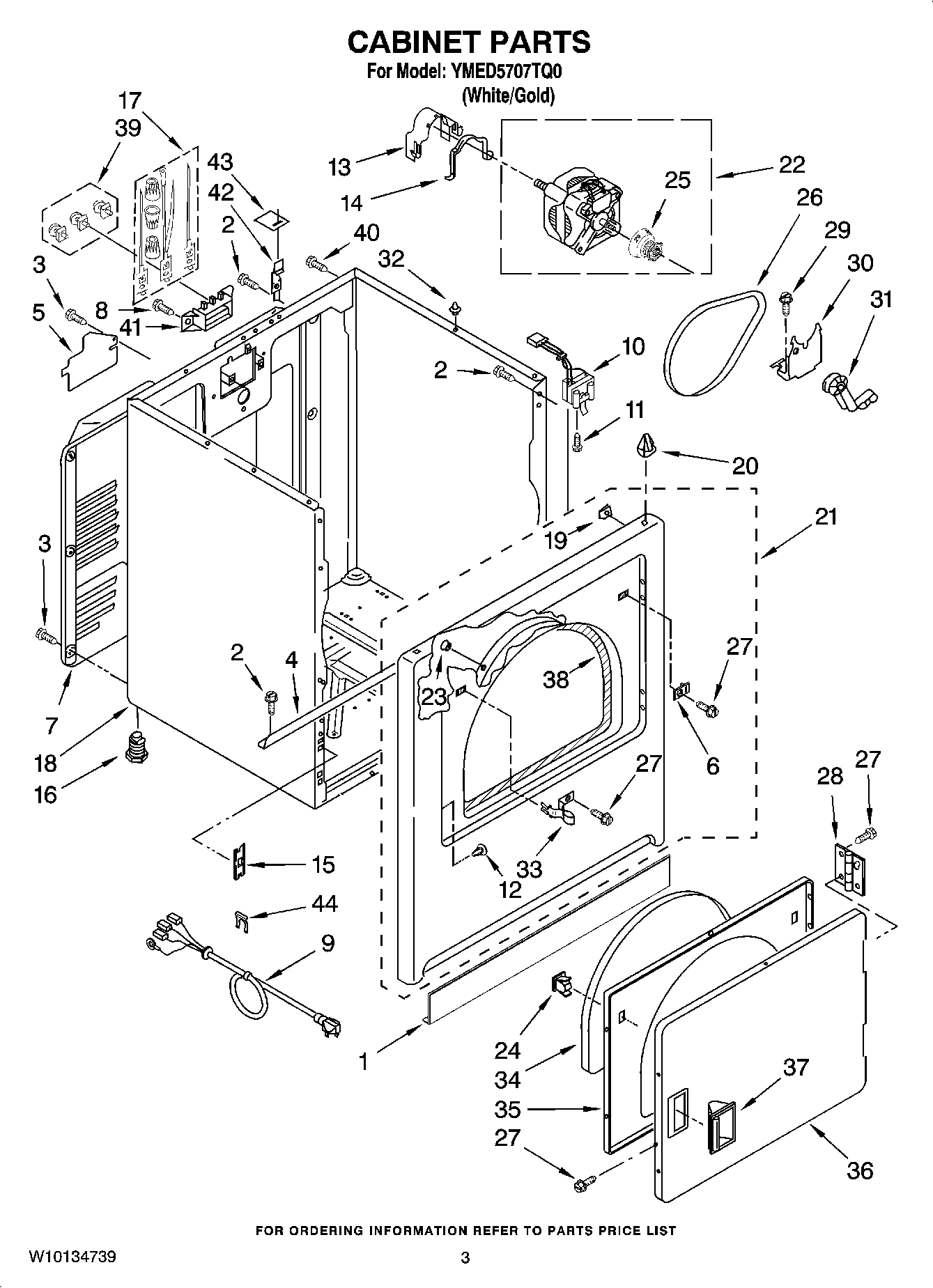

YMED5707TQ0 02 – CABINET PARTS

Products

Position	Product
1	MAY W10112593
2	SCREW
3	Screw
4	MAY 8541400
5	Cover, Terminal Block
6	PLUG-STRIKE
7	MAY 3396805
8	SCREW, 10-16 X 1/2
9	Power Cord
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	Clamp, Motor (With Shield)
14	MAY 660658
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	Lock, Front Top (2)
21	Panel, Front (White)
22	MAY 8066206
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	Pulley, Motor
26	MAY W10131364
27	MAY 342055
28	MAY W10112600
29	BOLT
30	MAY 348780
31	IDLER ASSEMBLY
32	Locator-Top
33	Strike, Door
34	MAY 3405246
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3406129
39	MAY 279393
40	Screw, 8-18 x 5/8 (External Ground)
41	MAY 3397659
42	Hinge, Top
43	Pad, Top Hinge (2)
44	STRAIN-RELIEF CLIP
