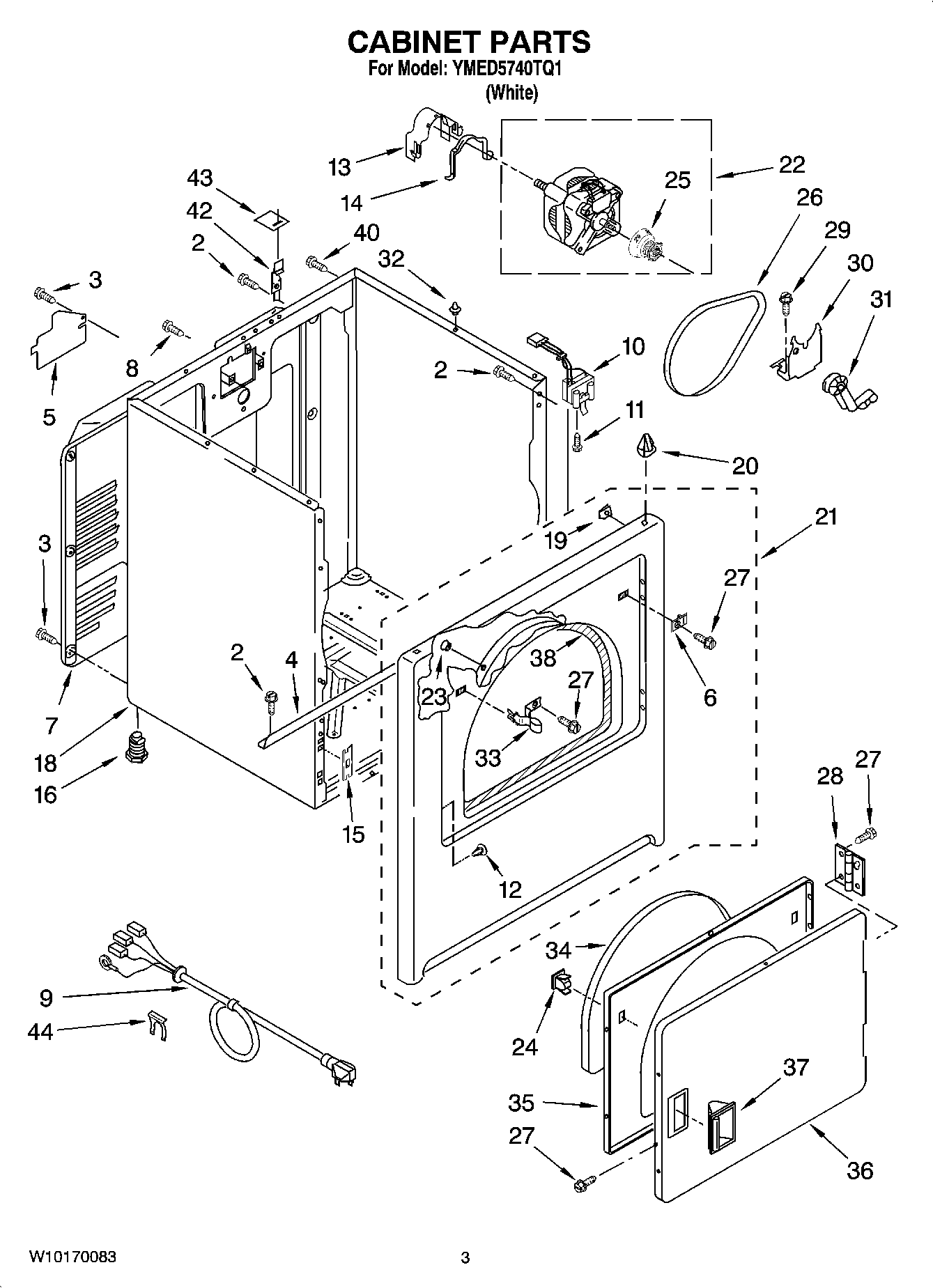

YMED5740TQ1 02 – CABINET PARTSadmin2025-04-26T08:49:33+00:00YMED5740TQ1 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 2 | SCREW |
| 3 | Screw |
| 4 | MAY 8541400 |
| 5 | Cover, Terminal Block |
| 6 | PLUG-STRIKE |
| 7 | MAY 3396805 |
| 8 | SCREW, 10-16 X 1/2 |
| 9 | Power Cord |
| 10 | Switch, Door |
| 11 | SCREW |
| 12 | PLUG, HINGE HOLES |
| 13 | Clamp, Motor (With Shield) |
| 14 | MAY 660658 |
| 15 | MAY 3394083 |
| 16 | MAY 3392100 |
| 16 | MAY 279810 |
| 18 | CABINET (WHITE) |
| 19 | Clip, Ground |
| 20 | Lock, Front Top (2) |
| 21 | Panel, Front (White) |
| 22 | MAY 8066206 |
| 23 | Clip, Felt Pad |
| 24 | DOOR CATCH ASSEMBLY |
| 25 | Pulley, Motor |
| 26 | MAY W10131364 |
| 27 | MAY 342055 |
| 28 | HINGE AND PIN ASSEMBLY |
| 29 | BOLT |
| 30 | MAY 348780 |
| 31 | IDLER ASSEMBLY |
| 32 | Locator-Top |
| 33 | Strike, Door |
| 34 | MAY 3405246 |
| 35 | Door, Rear |
| 36 | DOOR FRONT |
| 37 | Handle, Door |
| 38 | MAY 3406129 |
| 40 | Screw, 8-18 x 5/8 (External Ground) |
| 42 | Hinge, Top |
| 43 | Pad, Top Hinge (2) |
| 44 | STRAIN-RELIEF CLIP |
