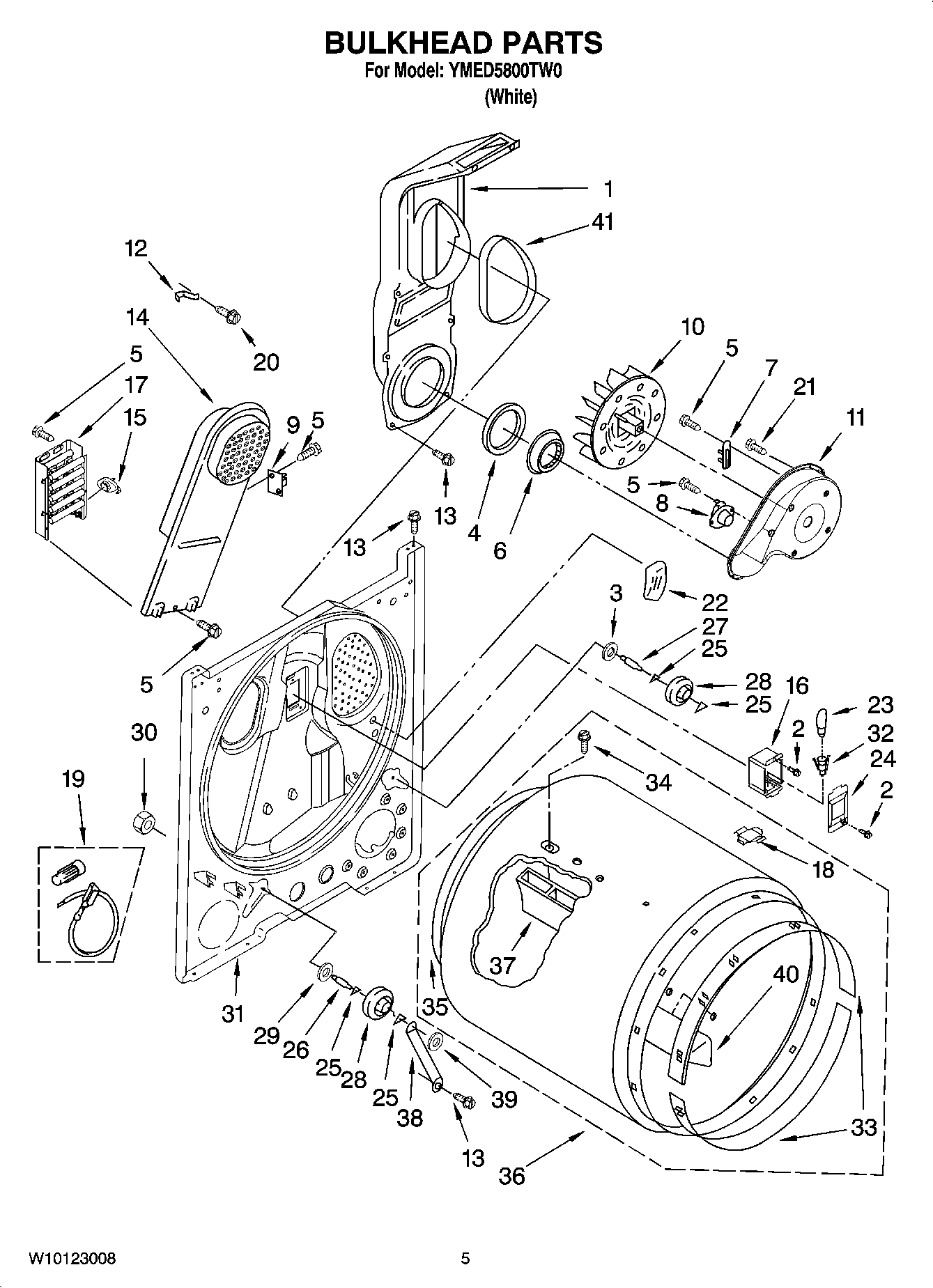

YMED5800TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

YMED5800TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

YMED5800TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY 3406839
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIMAY 4392901
NIMAY 4392899
NIPAINT, BULK (1 qt.) (Biscuit)
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
1MAY 348368
2MAY 487909
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 696302
7Fuse, Thermal (91 C)
8MAY 8318268
9MAY 3977393
10Wheel, Blower
11MAY 8577230
12CLIP HEATER BOX
13SCREW
14MAY 8541818
15MAY 3977767
16MAY 3977373
17MAY 3403590
18Plug, Drum Hole
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21SCREW
22MAY 3976479
23MAY 3406126
24MAY 3402841
25WASHER, TRI RING
26MAY 3399506
27MAY 3399507
28MAY 3397590
29WASHER
30Nut, 3/8-16
31MAY 3403414
32MAY W10136369
33Bearing, Ring
34MAY W10109200
35MAY 3406130
36MAY 695587
37BAFFLE, DRUM (LONG)
38MAY 3976434
39NUT, PUSH ON
40BAFFLE, DRUM (SHORT)
41MAY 339956
