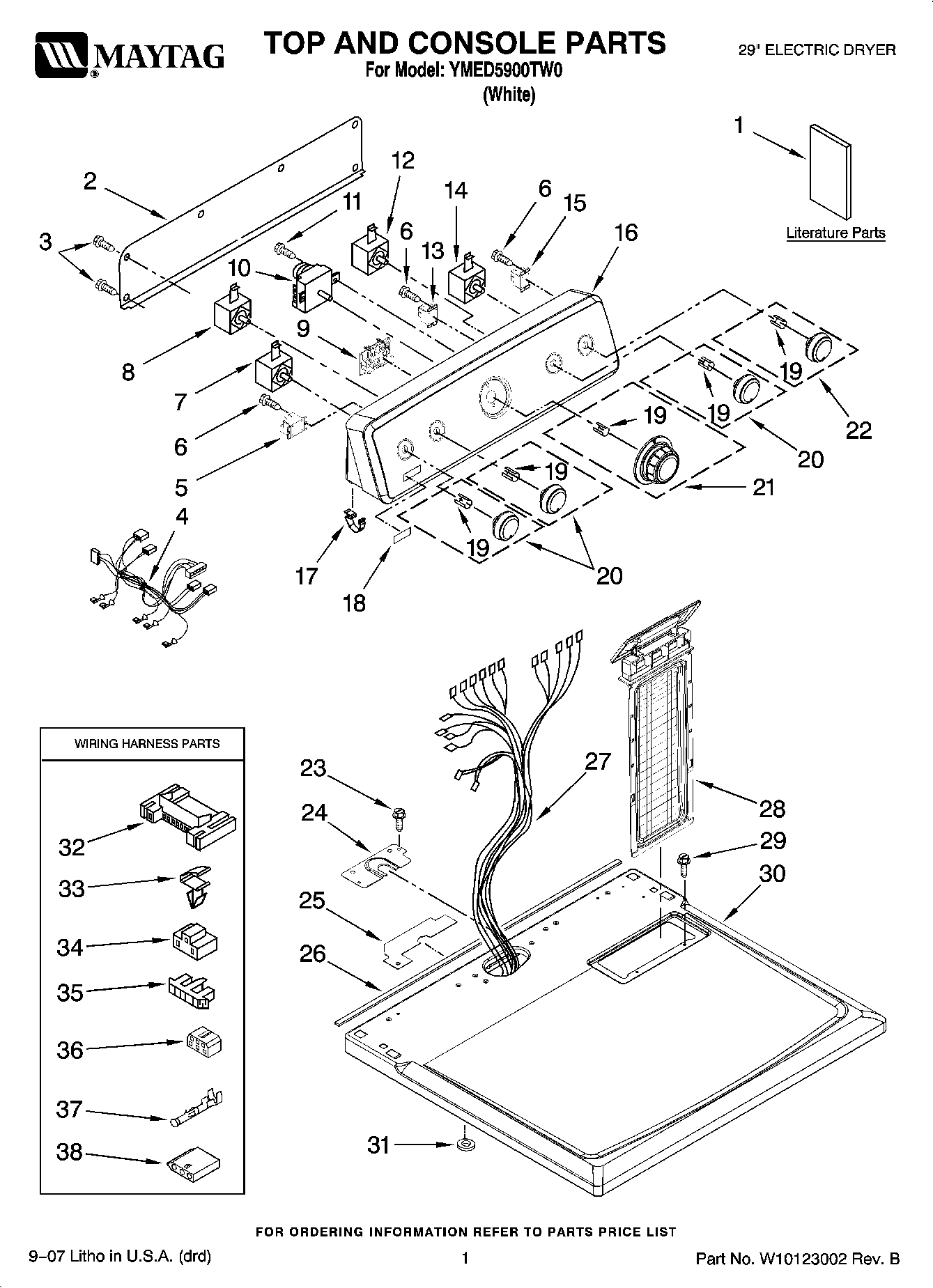

YMED5900TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10118755
1	Dryer, Cycle Sheet
1	MAY W10088770
2	Panel, Rear
3	Screw
4	Harness, Wiring Center Control
6	Screw,8-18 x 11/32
7	Switch, End Of Cycle
8	Switch, Wrinkle Guard
9	MAY W10111812
10	Timer, 60 Hz.
11	MAY 8533971
12	MAY 8299970
13	Relay, Heater
14	MAY W10156101
15	Relay, Heater
16	Console & Shell Assembly (Includes Items 17 & 18)
17	MAY 8312709
18	MAY W10112569
19	CLIP, SPRING
20	Knob, Control (3)
21	Knob, Timer
22	MAY W10110037
23	Screw, 8-18 x 3/4
24	MAY 8565981
25	MAY W10118608
26	Seal, Foam Console Bracket
27	MAY W10115065
28	Screen, Lint
29	SCREW
30	MAY W10112599
31	Washer (Top/Chute)
32	CONNECTOR (MOTOR)
33	CLIP, HARNESS
34	Connector (PTS) Relay
35	Connector-Timer
36	Connector
37	Terminal
38	MAY 3936144
