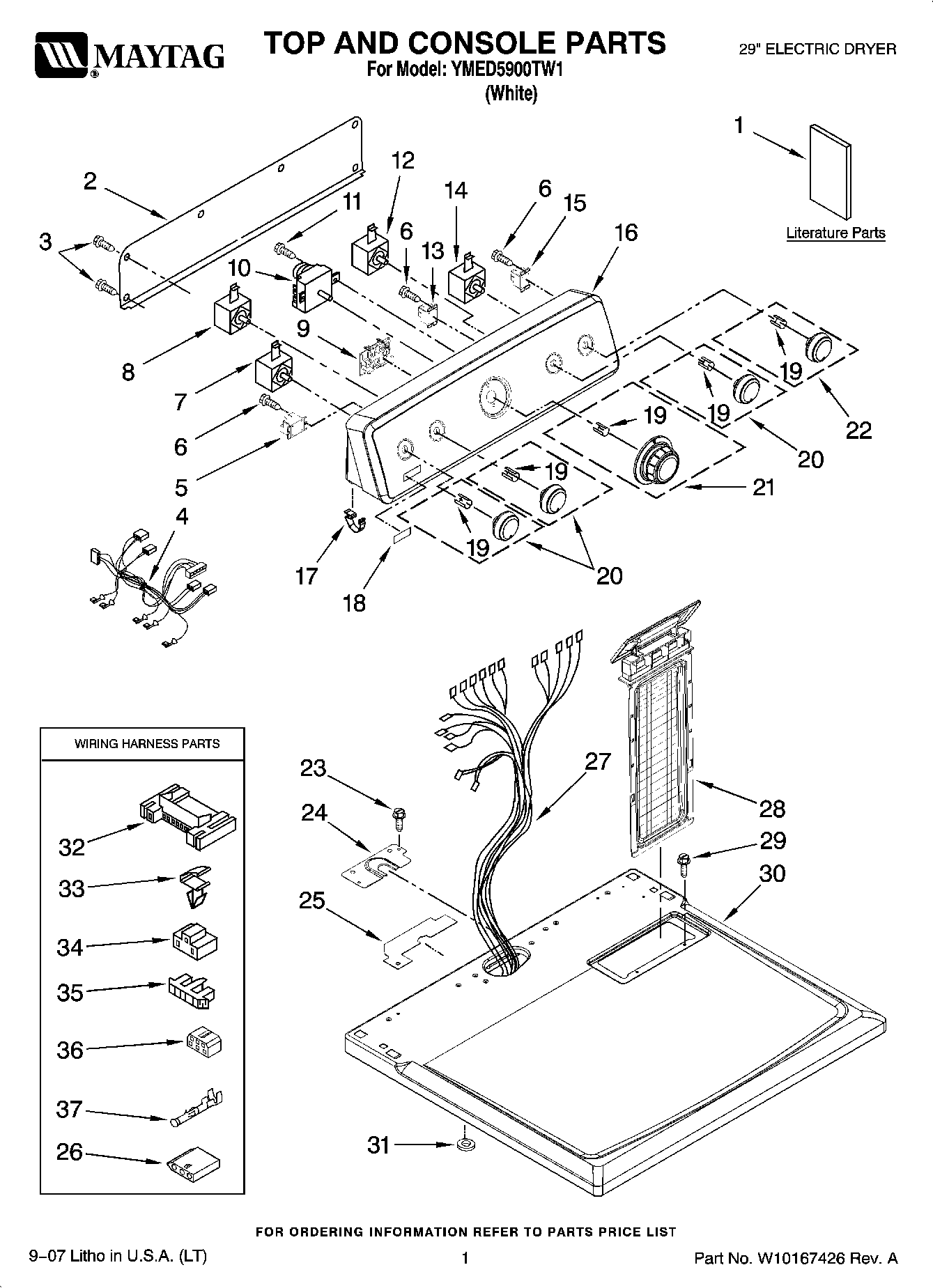

YMED5900TW1 01 – TOP AND CONSOLE PARTS

YMED5900TW1 01 – TOP AND CONSOLE PARTS

Written by

in

YMED5900TW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer, Cycle Sheet
1MAY W10088770
1MAY W10118755
2MAY W10112577
3Screw
4Harness, Wiring Center Control
6Screw,8-18 x 11/32
7Switch, End Of Cycle
8Switch, Wrinkle Guard
9MAY W10116567
10Timer, 60 Hz.
11MAY 8533971
12MAY 8299970
13Relay, Heater
14MAY 3977456
15Relay, Heater
16Console & Shell Assembly (Includes Items 17 & 18)
17MAY 8312709
18MAY W10112569
19CLIP, SPRING
20Knob, Control (3)
21Knob, Timer
22MAY W10110037
23Screw, 8-18 x 3/4
24MAY W10112578
25Seal-Harness
26MAY 3936144
27MAY W10111004
28Screen, Lint
29SCREW
30MAY W10112599
31Washer (Top/Chute)
32CONNECTOR (MOTOR)
33CLIP, HARNESS
34Connector (PTS) Relay
35Connector-Timer
36Connector
37Terminal
