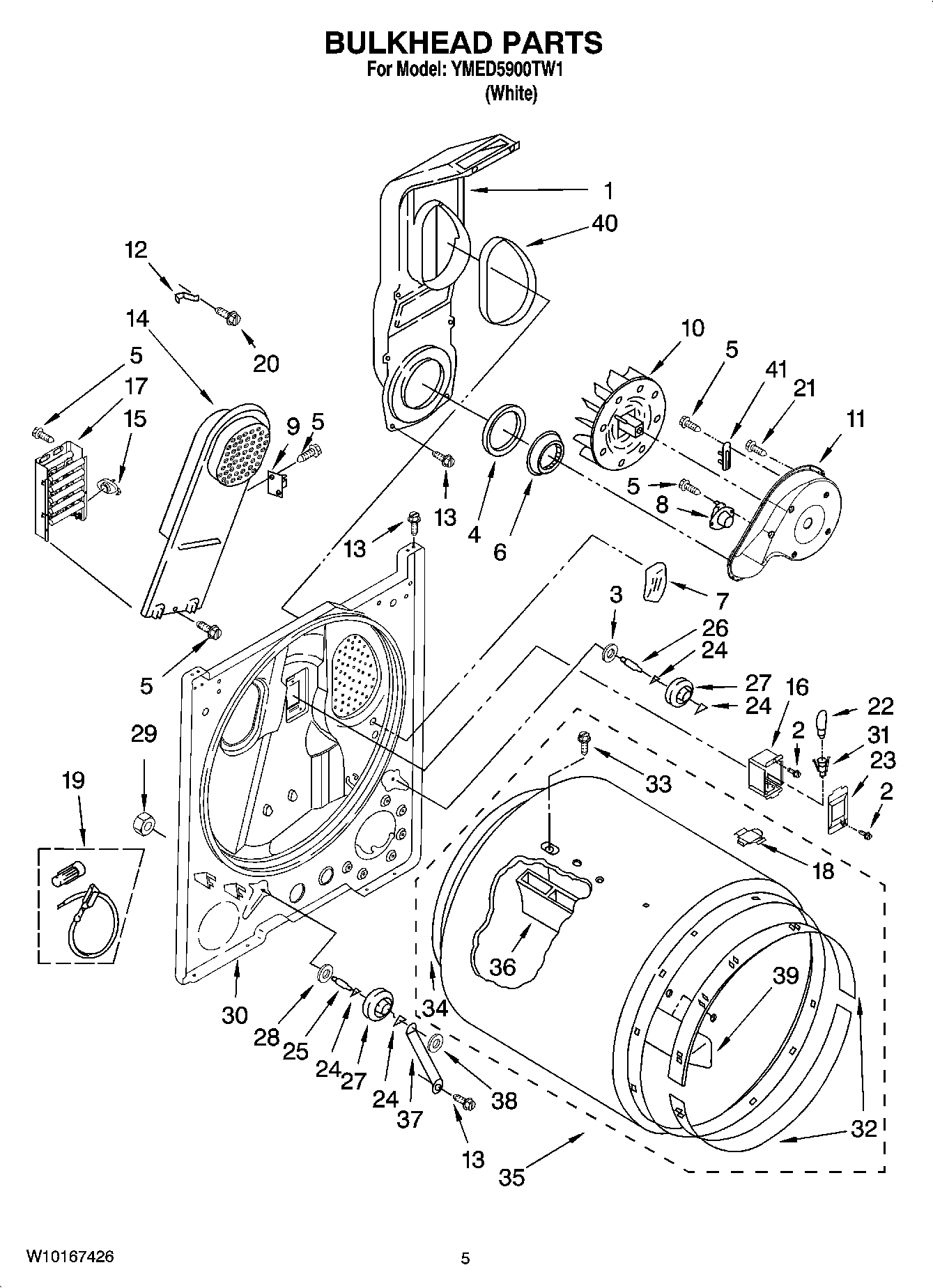

YMED5900TW1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T08:49:24+00:00YMED5900TW1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| NI | PAINT, PRESSURIZED SPRAY (12OZ. WHITE) |
| NI | ACCESSORY PARTS (KIT, DRYER VENT TESTING) |
| NI | PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER) |
| NI | MAY 3406839 |
| NI | ACCESSORY PARTS, KIT, DRYER REPAIR |
| NI | PAINT, TOUCH-UP (1/2OZ. WHITE) |
| NI | PAINT, BULK (1 QT. WHITE (UNCUT)) |
| 1 | MAY 348368 |
| 2 | MAY 487909 |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY 696302 |
| 7 | MAY 3976479 |
| 8 | THERMISTOR |
| 9 | MAY 3977393 |
| 10 | Wheel, Blower |
| 11 | MAY 8577231 |
| 12 | CLIP HEATER BOX |
| 13 | SCREW |
| 14 | MAY 8541818 |
| 15 | Thermostat, 140 F |
| 16 | MAY 3977373 |
| 17 | MAY W10044520 |
| 18 | Plug, Drum Hole |
| 19 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 20 | Screw |
| 21 | SCREW |
| 22 | MAY 3406126 |
| 23 | MAY 3402841 |
| 24 | WASHER, TRI RING |
| 25 | MAY 3399506 |
| 26 | MAY 3399507 |
| 27 | MAY 3397590 |
| 28 | WASHER |
| 29 | Nut, 3/8-16 |
| 30 | MAY 3403413 |
| 31 | MAY W10136369 |
| 32 | Bearing, Ring |
| 33 | MAY W10109200 |
| 34 | MAY 3406130 |
| 35 | MAY 695587 |
| 36 | BAFFLE, DRUM (LONG) |
| 37 | MAY 3976434 |
| 38 | NUT, PUSH ON |
| 39 | BAFFLE, DRUM (SHORT) |
| 40 | MAY 339956 |
| 41 | THERMAL FUSE (91C) |
