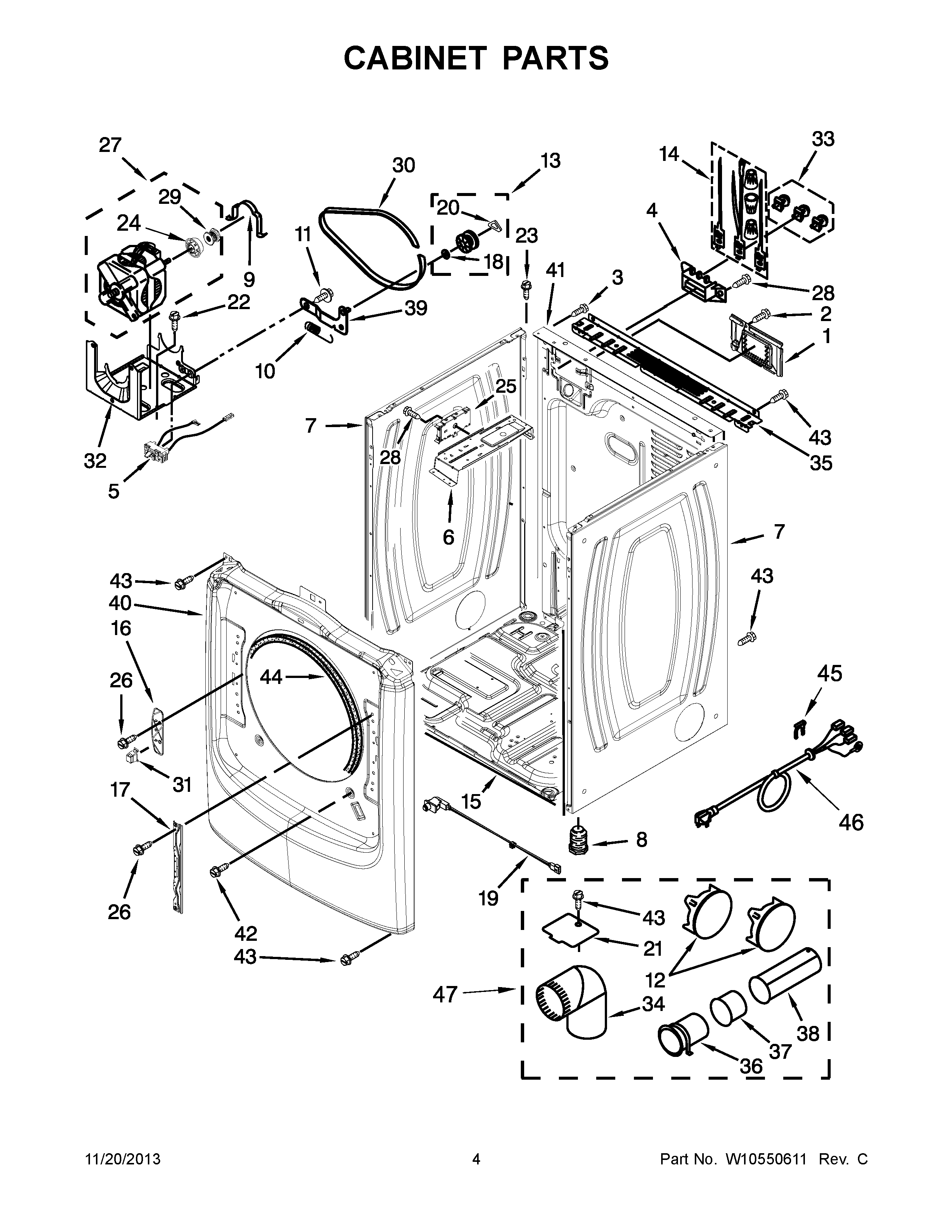

YMED6000AW0 03 – CABINET PARTSadmin2025-04-26T08:49:24+00:00YMED6000AW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY W10316167 |
| 2 | SCREW |
| 3 | MAY 8533974 |
| 4 | MAY 3397659 |
| 5 | MAY W10411936 |
| 6 | MAY W10259611 |
| 7 | MAY W10468495 |
| 7 | PANEL, SIDE (COSMETALLIC) |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 13 | ASSEMBLY, PULLEY |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY 8565046 |
| 16 | MAY W10208250 |
| 17 | MAY W10315109 |
| 18 | MAY W10121334 |
| 19 | MAY W10459029 |
| 20 | WASHER, TRI RING |
| 21 | MAY W10354249 |
| 22 | SCREW |
| 23 | SCREW, 10-16 X 1/2 |
| 24 | MAY 3393657 |
| 25 | MAY W10542001 |
| 26 | MAY W10288126 |
| 27 | ASSEMBLY, MOTOR |
| 28 | SCREW,8-18 X 3/8 |
| 29 | MAY 3389729 |
| 30 | MAY W10112954 |
| 31 | MAY W10208401 |
| 32 | MAY W10242878 |
| 33 | MAY 279393 |
| 34 | MAY W10416072 |
| 35 | MAY W10208382 |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | PIPE, EXHAUST (SHORT) |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | MAY 3388674 |
| 40 | MAY W10363954 |
| 40 | PANEL, FRONT (COSMETALLIC) |
| 41 | MAY W10487430 |
| 42 | SCREW |
| 43 | SCREW |
| 44 | MAY 3387242 |
| 45 | STRAIN-RELIEF CLIP |
| 46 | Power Cord |
| 47 | KIT, 4-WAY VENT |
