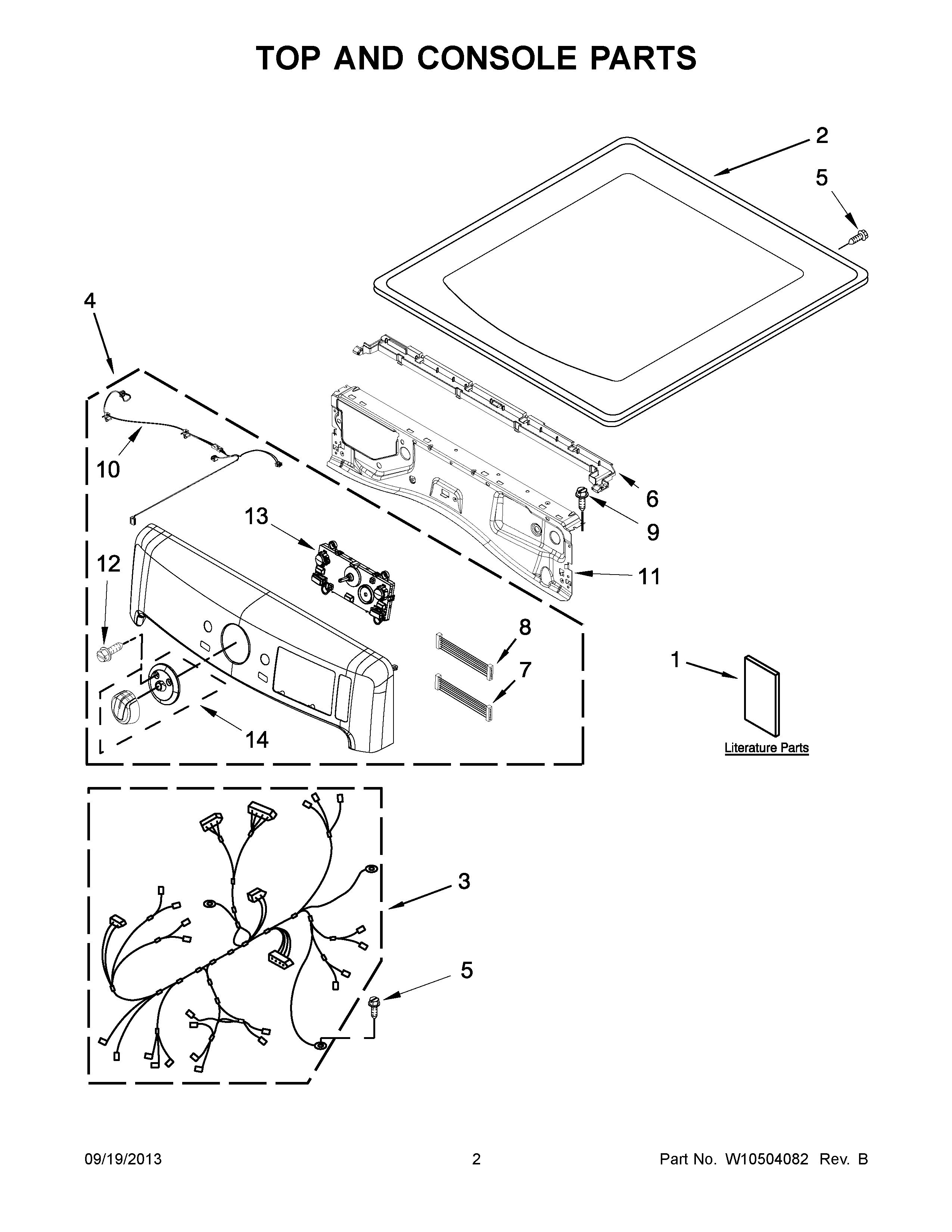

YMED6000XR3 02 – TOP AND CONSOLE PARTS

YMED6000XR3 02 – TOP AND CONSOLE PARTS

Written by

in

YMED6000XR3 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10423115
1	MAY W10297011
1	USE AND CARE GUIDE
1	MAY W10420007
2	MAY W10337792
2	MAY W10208383
2	MAY W10301057
3	MAY W10441588
4	MAY W10464556
4	MAY W10464557
4	MAY W10464555
5	Screw
6	MAY W10259210
7	HARNESS, JUMPER
8	HARNESS, JUMPER
9	SCREW
10	MAY W10450060
11	MAY W10208198
12	MAY W10146359
13	UI, CENTER
14	MAY W10514146
