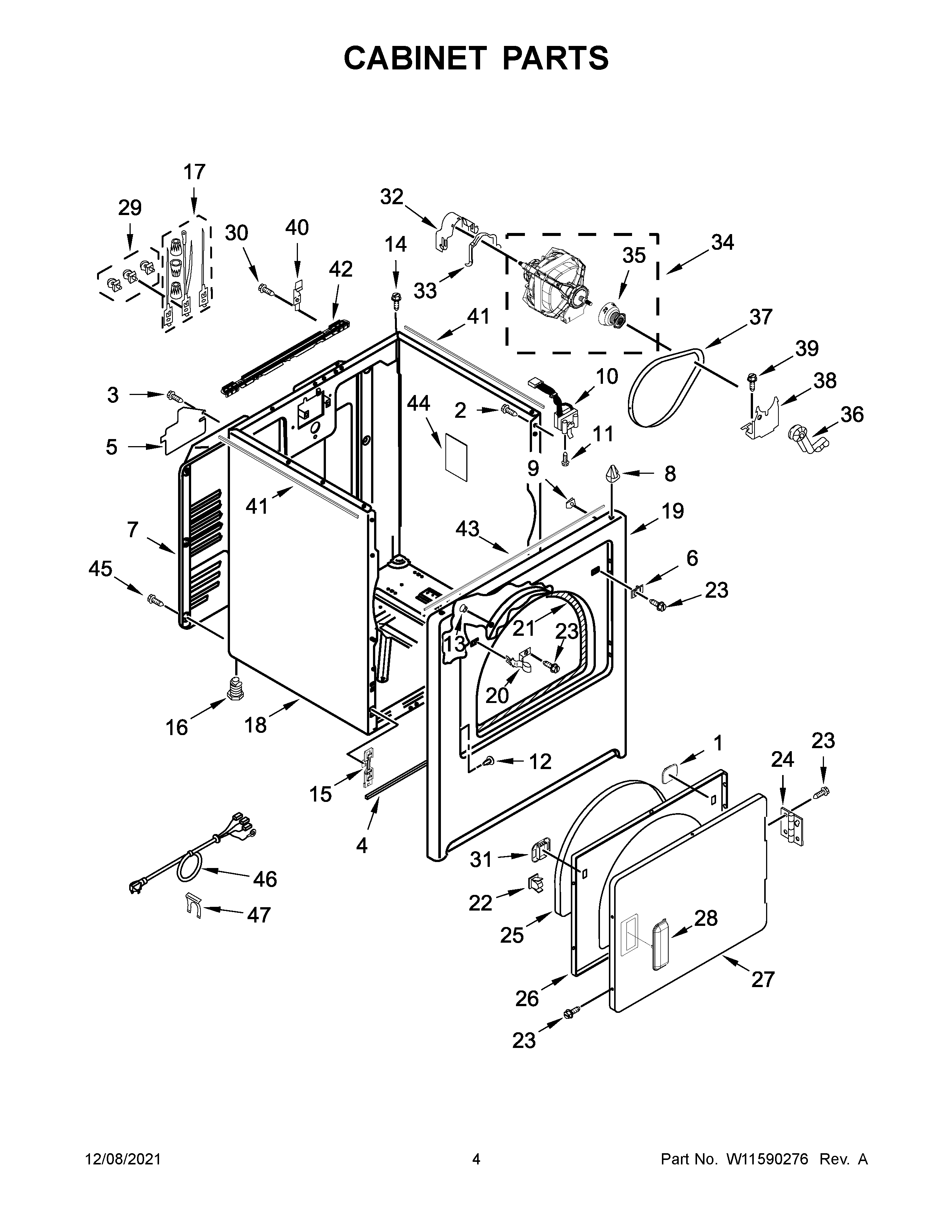

YMED6200KW1 03 – CABINET PARTS

Products

Position	Product
1	W11173656 Whirlpool Cover
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	W11596046 Whirlpool Seal
5	W11298298 Whirlpool Cover
6	W11684591 Whirlpool Dryer Plug
7	280043 Whirlpool Rear Panel
8	WP8066092 Whirlpool Panel Clip
9	WP98234 Whirlpool Nut
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	W11481394 Whirlpool Plug Assembly
13	279220 Whirlpool Clip
14	SCREW
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	W10806345 Whirlpool Panel
20	W11429589 Whirlpool Strike
21	W11035878 Whirlpool Bearing and Seal
22	W11429587 Whirlpool Catch Assembly
23	WP488627 Whirlpool Refrigerator Screw
24	WPW10362431 Whirlpool Hinge Assembly
25	SEAL-DOOR DRYER
26	WPW10463967 Whirlpool Door Assembly
27	W10861224 Whirlpool Door
28	W10861225 Whirlpool Dryer White Door Handle
29	279393 Whirlpool Terminal Block Screw and Nut Kit
30	W10850756 Whirlpool Screw
31	WPW10529197 Whirlpool Catch Assembly
32	WP3404162 Whirlpool Clamp
33	CLAMP
34	279827 Whirlpool Dryer Drive Motor
35	WP8066184 Whirlpool Dryer Motor Pulley
36	WP691366 Whirlpool Dryer Idler Pulley Assembly
37	341241 Whirlpool Dryer Drum Belt
38	WP348780 Whirlpool Base
39	3400500 Whirlpool Screw
40	W11715722 Whirlpool Hinge
41	WPW10157932 Whirlpool Seal Foam
42	W10641295 Whirlpool Bracket
43	W10316619 Whirlpool Seal
44	W11409002 Whirlpool Pad
45	WP9740848 Whirlpool Dishwasher Screw
46	W11710615 Whirlpool Cord-Power
47	W11712577 Whirlpool Clip
