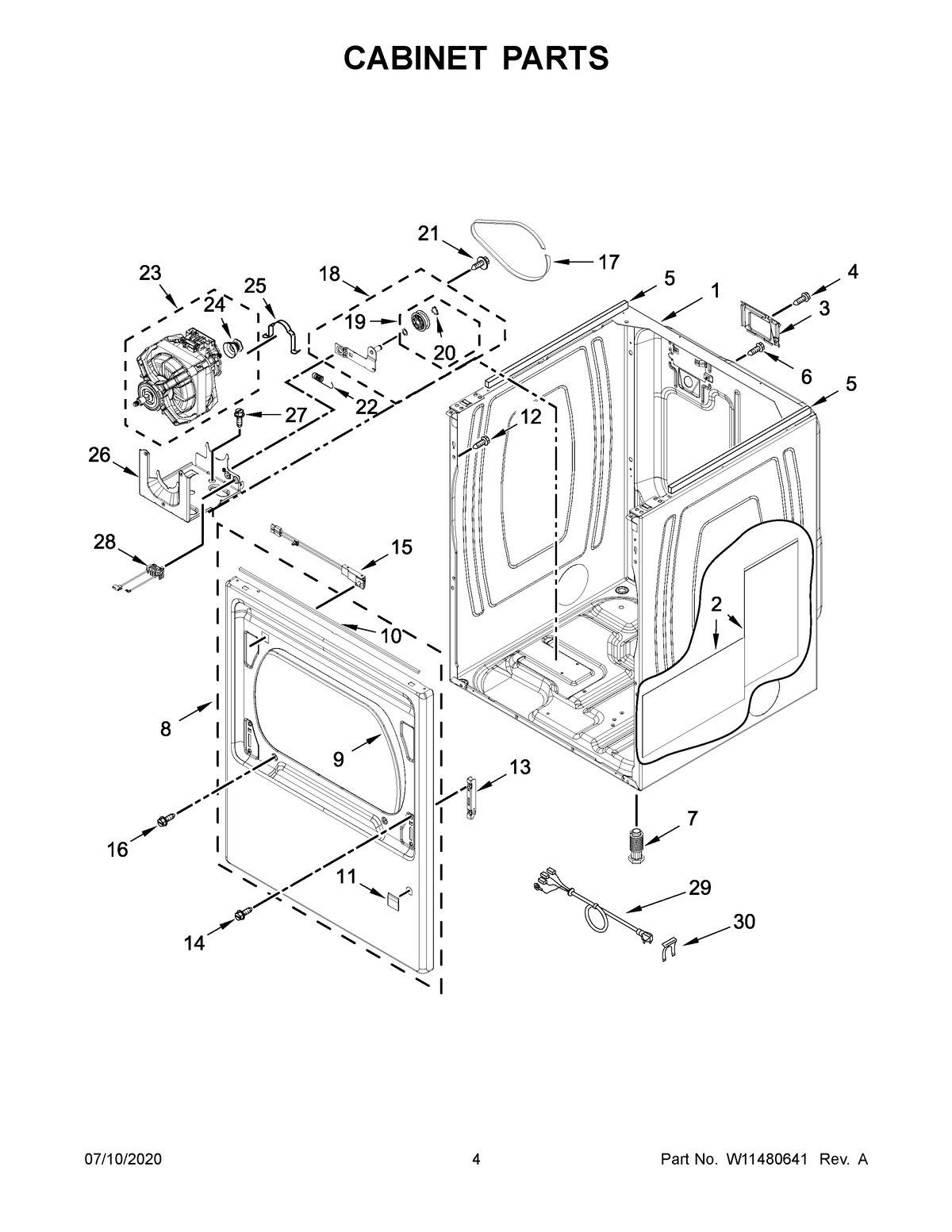

YMED6230HC1 03 – CABINET PARTS

YMED6230HC1 03 – CABINET PARTS

Written by

in

YMED6230HC1 03 – CABINET PARTS

Products

PositionProduct
1CABINET (WHITE)
1ACABINET (CHROME SHADOW)
2PANEL, DAMPENING
3COVER, TERMINAL BLOCK
4SCREW
5SEAL, FOAM
6SCREW
7FOOT, DRYER
8APANEL, FRONT (CHROME SHADOW)
8PANEL, FRONT (WHITE)
9MAY 3387242
10SEAL, FOAM
11PLUG, FRONT PANEL (WHITE)
11APLUG, FRONT PANEL (CHROME SHADOW)
12SCREW
13HINGE, INNER DOOR (RECEPTACLE)
14SCREW
15ASSEMBLY, DOOR SWITCH
16SCREW
17MAY 3387610
18ASSEMBLY, IDLER
19MAY W10468057
20WASHER, TRI RING
21SCREW
22MAY W10446781
23ASSEMBLY, MOTOR
24MAY W10460106
25CLAMP, MOTOR MOUNT
26MAY W10242878
27SCREW
28SWITCH, BROKEN BELT
29CORD, POWER
30STRAIN-RELIEF CLIP
