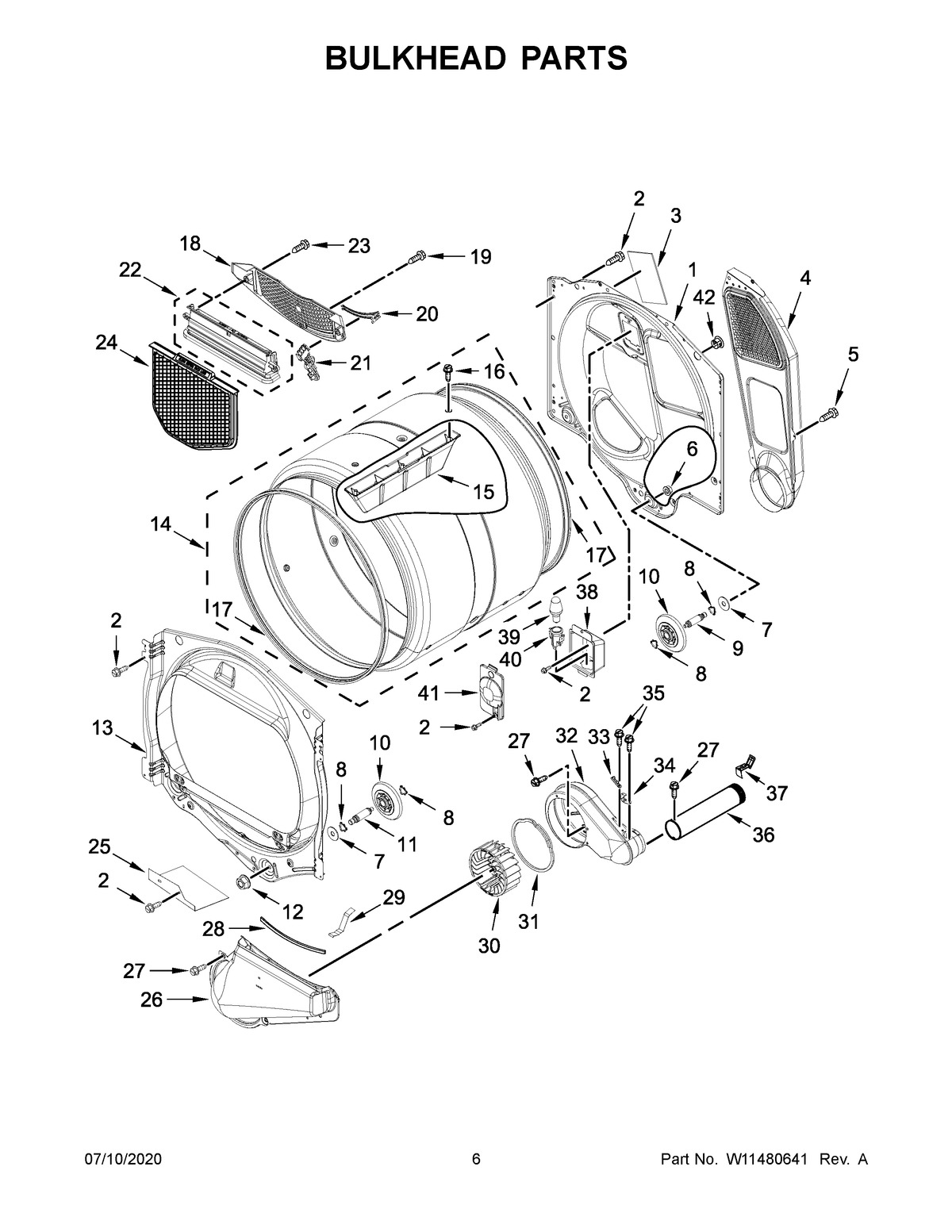

YMED6230HW1 04 – BULKHEAD PARTS

Products

Position	Product
1	BULKHEAD, REAR
2	SCREW
3	MAY W10504381
4	ASSEMBLY, AIR DUCT
5	MAY 8533971
6	NUT, HEX (LEFT HAND THREAD)
7	WASHER
8	WASHER, TRI RING
9	SHAFT, DRUM ROLLER – LEFT HAND THREAD
10	ROLLER, SUPPORT
11	SHAFT, DRUM ROLLER RIGHT HAND THREAD
12	NUT, HEX
13	BULKHEAD, FRONT
14	ASSEMBLY, DRUM
15	BAFFLE, DRUM
16	MAY W10219342
17	MAY W10521118
18	GRILL, OUTLET
19	Screw, 8-18 x 1/2
20	SENSOR, ELECTRODE
21	MAY W10298258
22	ASSEMBLY, OUTLET HOUSING
23	SCREW
24	LINT SCREEN (WHITE)
25	MAY W11257251
26	Lint Duct Assembly
27	Screw
28	MAY 697814
29	CLIP, SPRING
30	MAY 697772
31	SEAL, SPILL GUARD
32	MAY 8544362
33	FUSE, THERMAL (91C)
34	THERMISTOR
35	Screw
36	PIPE, EXHAUST
37	CLIP, EXHAUST
38	MAY 3977373
39	MAY 3406124
40	MAY W10214261
41	MAY 3402841
42	MAY 8529007
