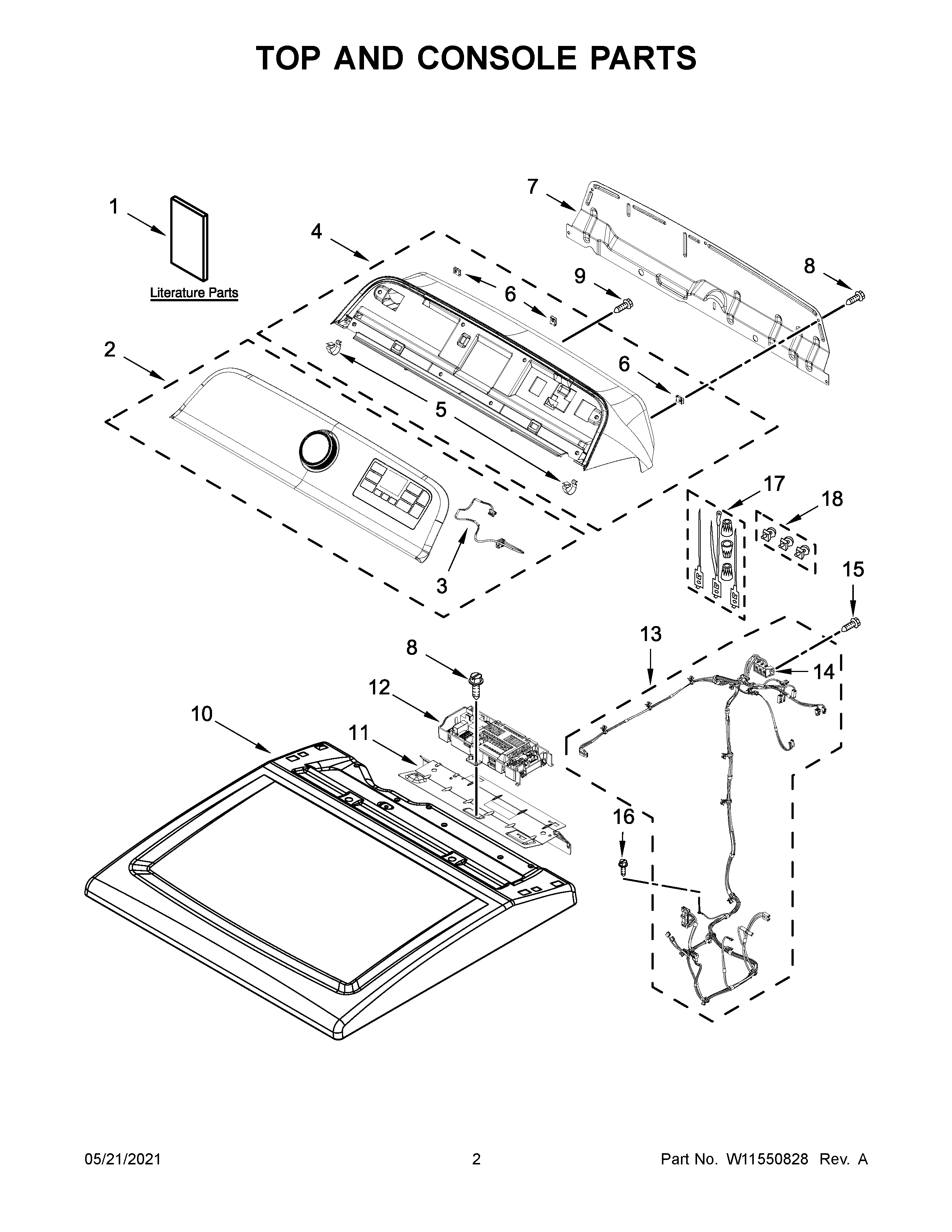

YMED6230HW2 02 – TOP AND CONSOLE PARTS

YMED6230HW2 02 – TOP AND CONSOLE PARTS

Written by

in

YMED6230HW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AWIRING DIAGRAM
1BQUICK START GUIDE
2W11413566 Whirlpool Control Panel
3W11721377 Whirlpool Wire Harness
4AW11406679 Whirlpool Console
4W11406678 Whirlpool Console
5WP8312709 Whirlpool Endcap Clip
6W11213336 Whirlpool Nut
7W11433112 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP9740848 Whirlpool Dishwasher Screw
10TOP (WHITE)
10AW11641122 Whirlpool Top
11W11431865 Whirlpool Bracket
12W11525996 Whirlpool Electronic Control Board + Core
13HARNESS, MAIN WIRING
14WP3397659 Whirlpool Terminal Block
15WP308685 Whirlpool Microwave Screw
16W11693756 Whirlpool Screw Assembly
17279318 Whirlpool Terminal
18279393 Whirlpool Terminal Block Screw and Nut Kit
