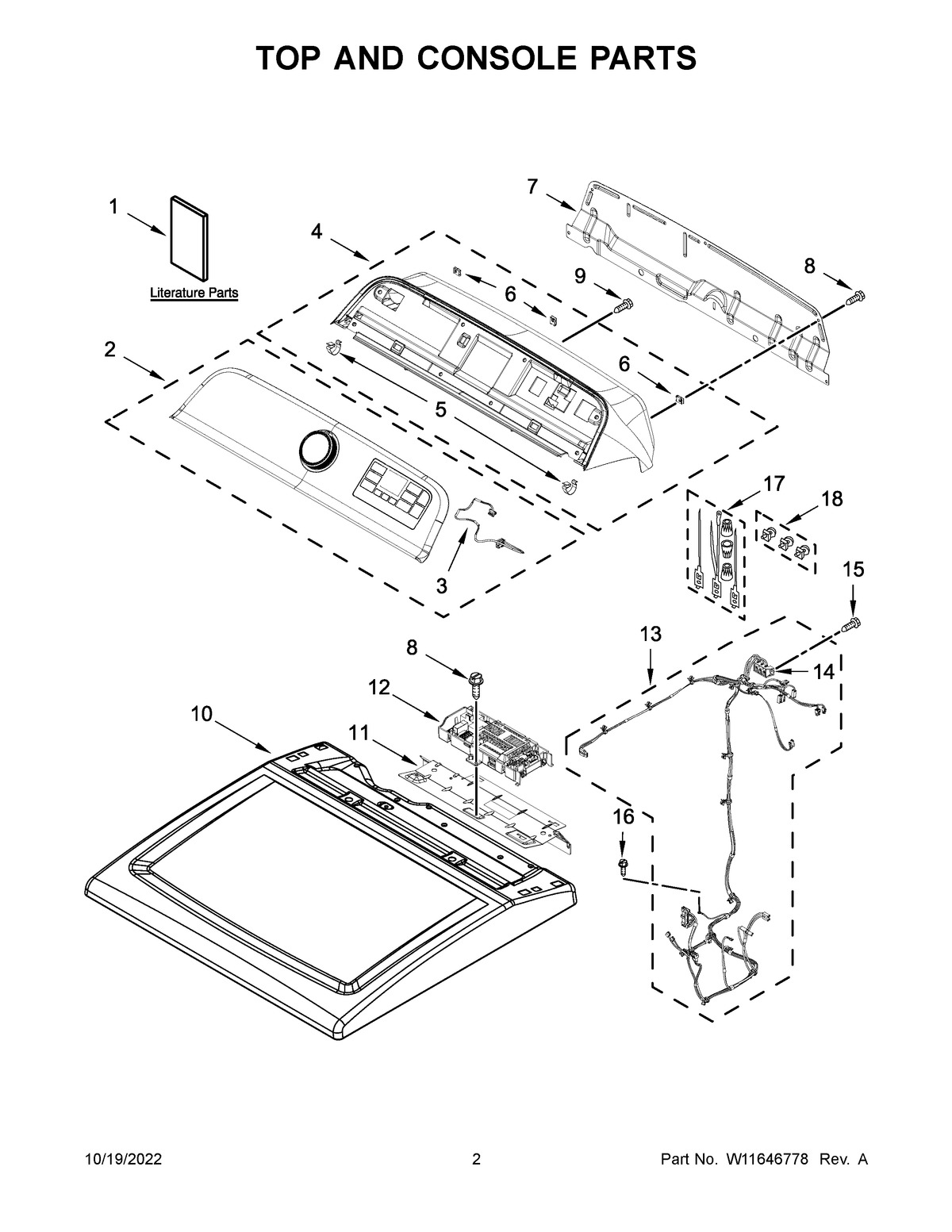

YMED6230HW3 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	QUICK START GUIDE
1	INSTALLATIONIN STRUCTIONS
2	W11413566 Whirlpool Control Panel
3	W11721377 Whirlpool Wire Harness
4	W11406678 Whirlpool Console
4A	W11406679 Whirlpool Console
5	WP8312709 Whirlpool Endcap Clip
6	W11213336 Whirlpool Nut
7	W11433112 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP9740848 Whirlpool Dishwasher Screw
10A	W11641122 Whirlpool Top
10	W11641121 Whirlpool Dryer Top
11	W11431865 Whirlpool Bracket
12	W11525996 Whirlpool Electronic Control Board + Core
13	HARNESS, MAIN
14	WP3397659 Whirlpool Terminal Block
15	WP308685 Whirlpool Microwave Screw
16	W11693756 Whirlpool Screw Assembly
17	279318 Whirlpool Terminal
18	279393 Whirlpool Terminal Block Screw and Nut Kit
