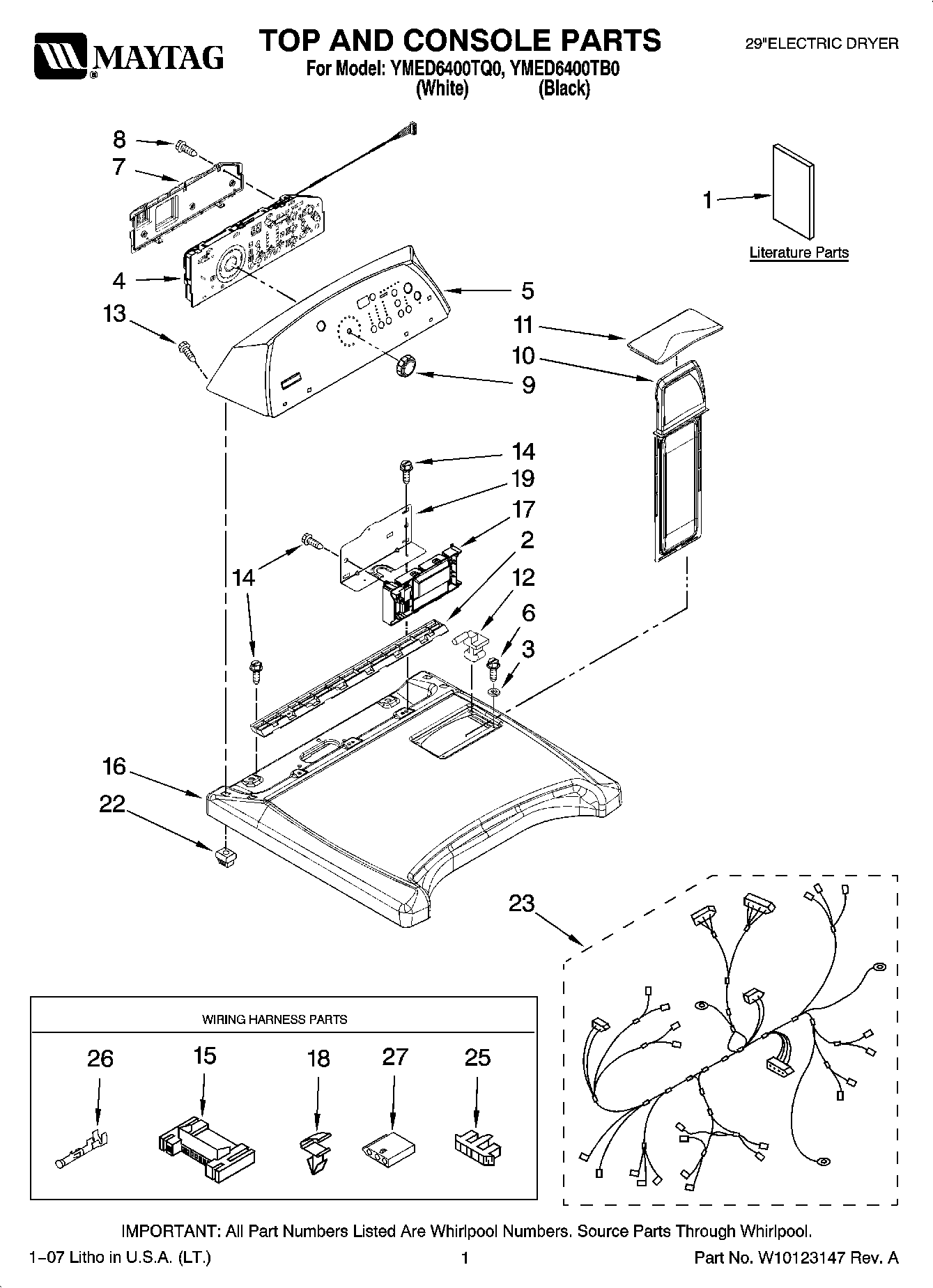

YMED6400TB0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10114196
1Guide, Use & Care
1MAY W10114206
2MAY 8558863
3Washer (Top/Chute)
4MAY W10051096
5Panel, Console (White)
5MAY W10120085
6Screw
7Cover, Rear
8Screw, 6-19 x 3/64
9MAY W10110196
10MAY 8572270
11MAY W10044360
11Cover, Lint Screen (White)
12MAY W10044470
12MAY W10044480
13MAY W10001580
14Screw, 8-18 x 3/4
15CONNECTOR (MOTOR)
16MAY 8565028
16Top (White)
17MAY W10111609
18CLIP, HARNESS
19MAY 8563853
22MAY 8558853
23MAY W10111429
25MAY 3936144
26Terminal
27Connector-Timer
