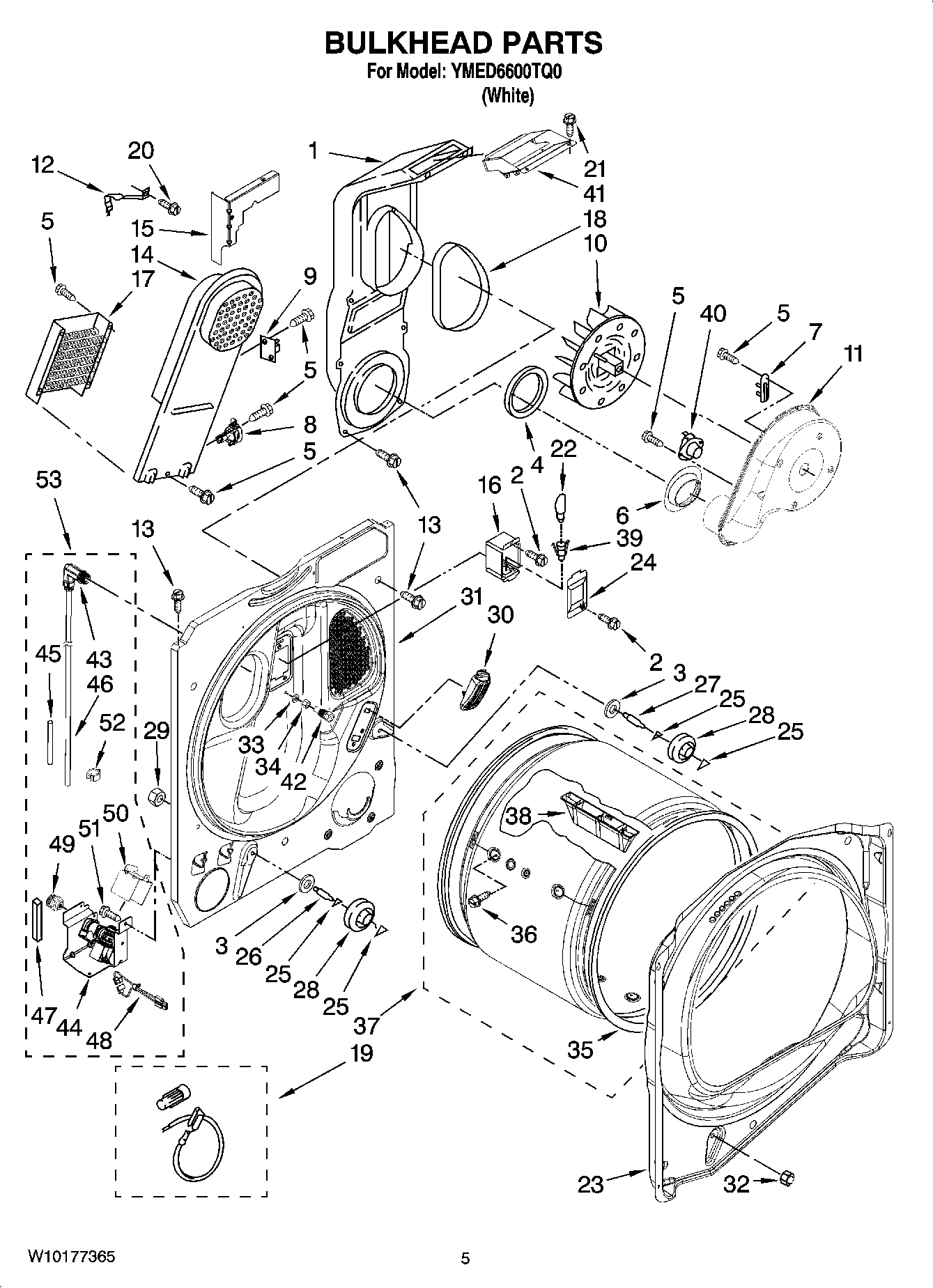

YMED6600TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	ACCESSORY PARTS, KIT, DRYER REPAIR
NI	MAY W10071550
NI	ACCESSORY PARTS, WASHER, INLET HOSE
NI	HOUS-CNTRL
NI	Side Venting
NI	ACCESSORY PARTS (KIT, DRYER VENT TESTING)
NI	Hose, Inlet 6 Ft. Hose With Elbow
NI	MAY 8544761
NI	Hose, Inlet 1 Ft. Hose
NI	Connector, Hose
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	MAY 8544805
2	MAY 487909
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 8573836
7	Fuse, Thermal (91 C)
8	MAY 8577891
9	MAY 3977393
10	Wheel, Blower
11	MAY 8577230
12	MAY 8546149
13	SCREW
14	MAY 8544801
15	MAY W10053480
16	MAY 3977373
17	MAY 3403590
18	MAY 8544813
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	Screw
22	MAY 3406126
23	MAY 8558890
24	MAY 3402841
25	WASHER, TRI RING
26	MAY 8575325
27	MAY 8575324
28	MAY 8536973
29	NUT, HEX (LEFT HAND THREAD)
30	MAY 8576468
31	MAY W10131528
32	NUT, HEX
33	MAY W10044579
34	Nut, Brass 9/16 – 24 x 1/2
35	MAY 8557277
36	MAY W10109200
37	MAY 8557270
38	MAY 8565688
39	Socket Assembly
40	THERMISTOR
41	MAY 8544810
42	MAY W10044629
43	Nozzle & Hose Assembly (Includes Items 33,34,42,46)
44	MAY W10146150
45	MAY W10153865
46	Hose Assembly (Not Servicable)
47	Foam, Bracket
48	Harness, Water Valve
49	MAY W10044605
50	MAY W10160575
51	Screw
52	Clip, Push-To-Connect
53	Valve & Hose Assembly
