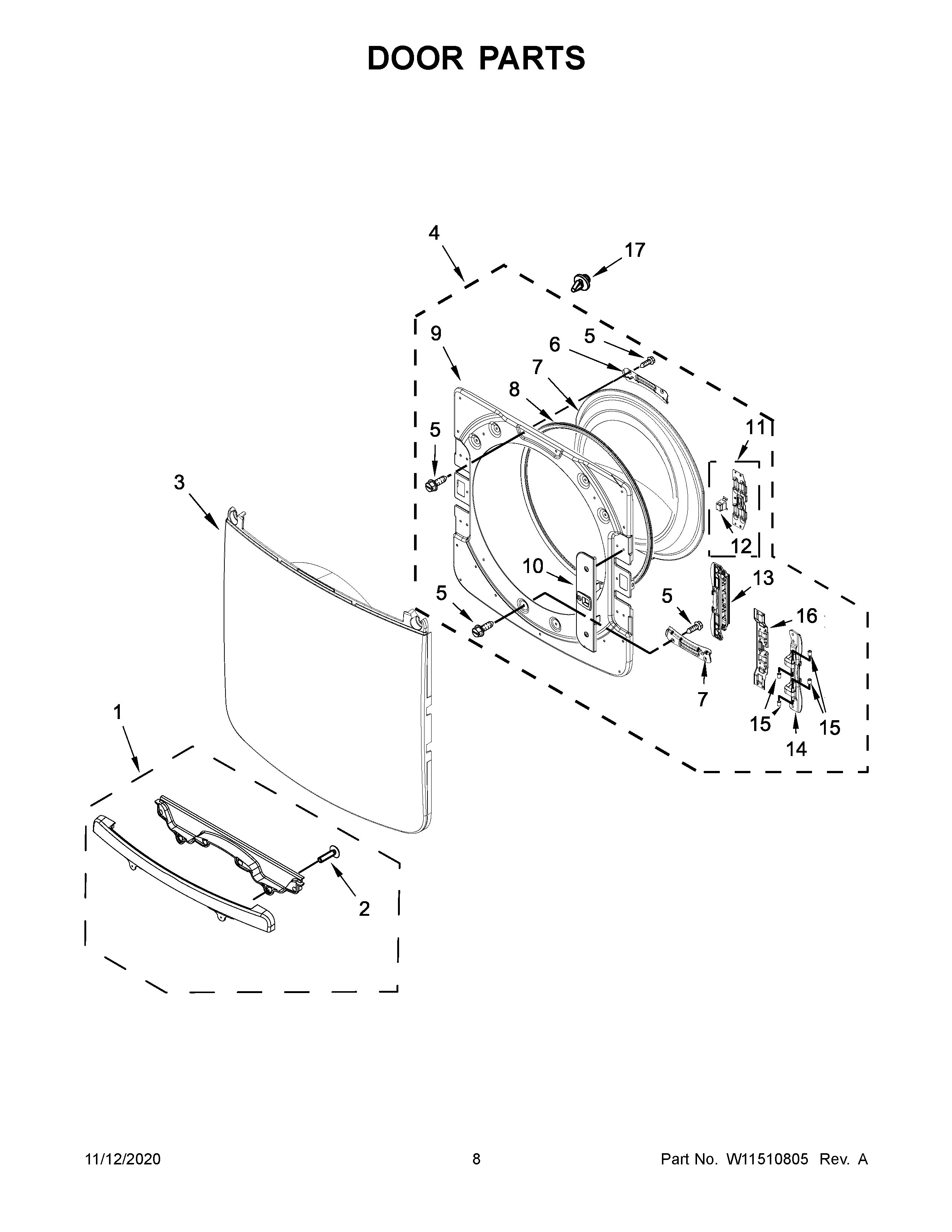

YMED6630HC2 05 – DOOR PARTS

YMED6630HC2 05 – DOOR PARTS

Written by

in

YMED6630HC2 05 – DOOR PARTS

Products

Position	Product
1	W10626039 Whirlpool Handle
2	SCREW
3	W11310052 Whirlpool Door
4	W11465962 Whirlpool Door Assembly
5	SCREW
6	BRACKET, GLASS
7	W11310036 Whirlpool Door Glass
8	W11310035 Whirlpool Seal
9	W11491634 Whirlpool Door
10	W11310050 Whirlpool Cover Assembly
11	WPW10208254 Whirlpool Catch
12	W11240283 Whirlpool Catch Assembly
13	HINGE
14	WPW10208419 Whirlpool Plate
15	WPW10208398 Whirlpool Hinge Pin Cap
16	HINGE
17	W11310051 Whirlpool Bumper
