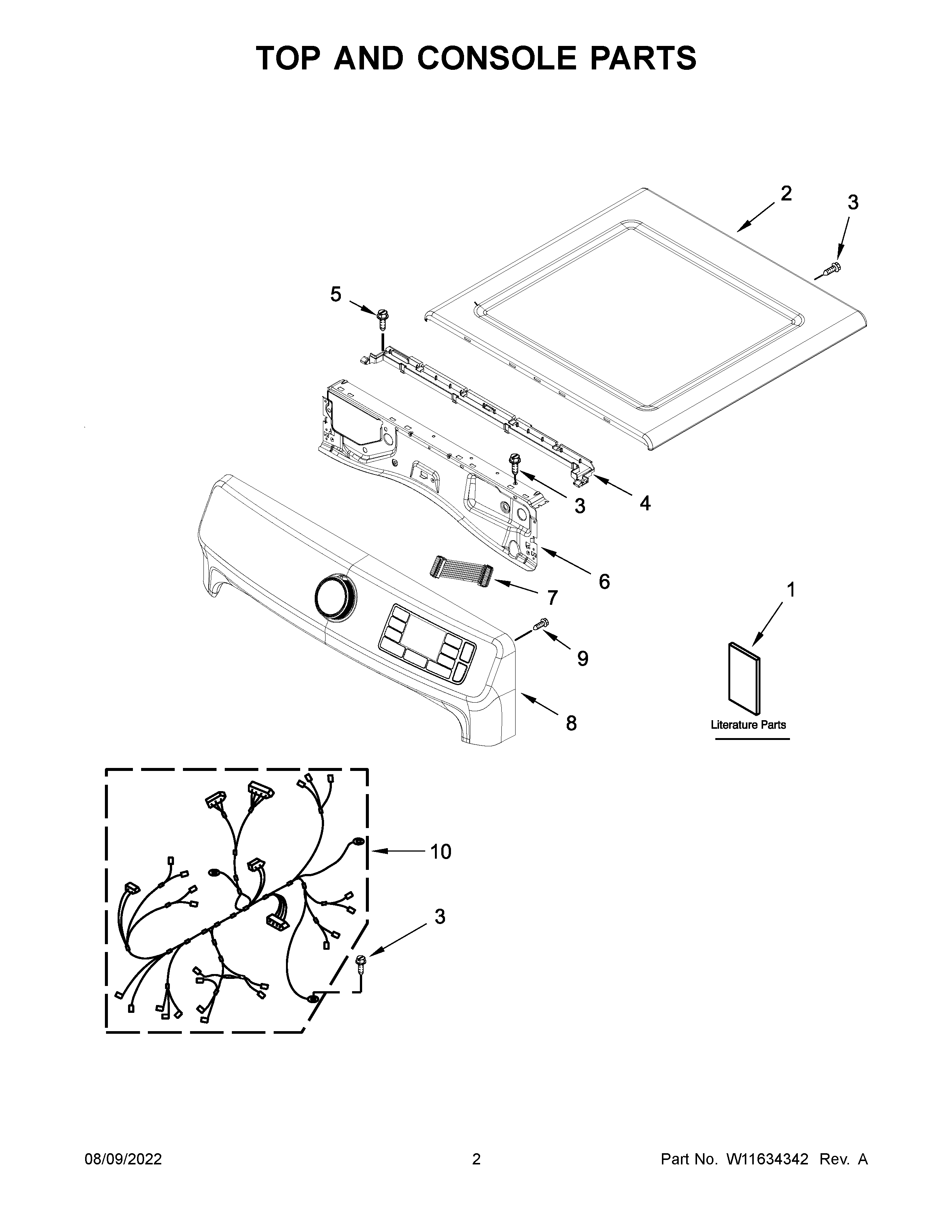

YMED6630MBK0 02 – TOP AND CONSOLE PARTS

YMED6630MBK0 02 – TOP AND CONSOLE PARTS

Written by

in

YMED6630MBK0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1BWIRING DIAGRAM
1ATECH SHEET
1CQUICK START GUIDE
2W11315730 Whirlpool Top
3WP488729 Whirlpool Refrigerator Door Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11316625 Whirlpool Wire Harness
8W11636630 Whirlpool Console + Core
9WP8533993 Whirlpool Refrigerator Screw
10HARNESS, WIRING (MAIN)
