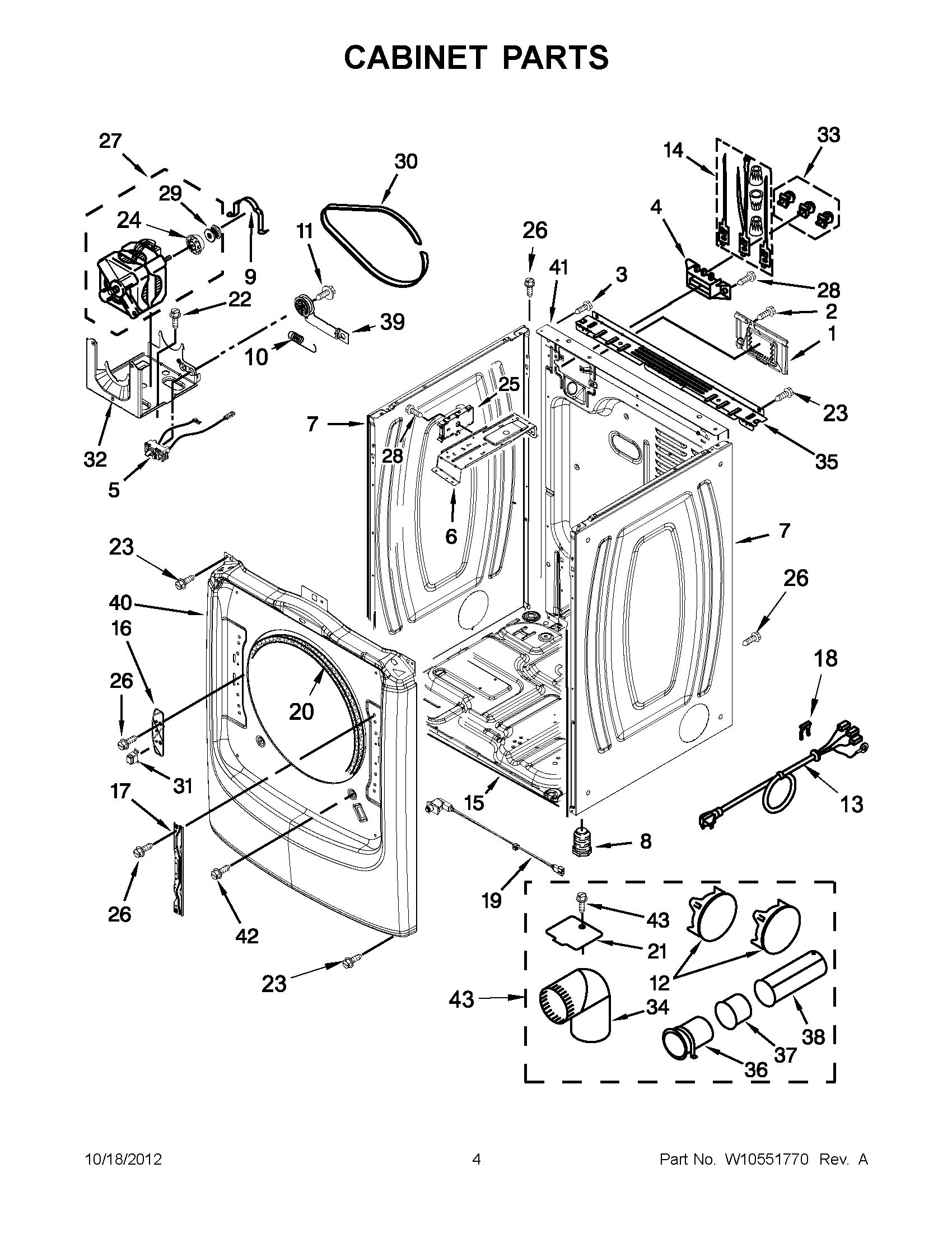

YMED7000AW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	SCREW
3	MAY 8533974
4	MAY 3397659
5	MAY W10411936
6	MAY W10259611
7	MAY W10468495
7	PANEL, SIDE (COSMETALLIC)
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	Power Cord
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8565046
16	MAY W10208250
17	MAY W10315109
18	STRAIN-RELIEF CLIP
19	MAY W10459029
20	MAY 3387242
21	MAY W10354249
22	SCREW
23	SCREW
24	MAY 3393657
25	MAY W10542001
26	MAY W10288126
27	ASSEMBLY, MOTOR
28	SCREW,8-18 X 3/8
29	MAY 3389729
30	MAY W10112954
31	MAY W10208401
32	MAY W10242878
33	MAY 279393
34	MAY W10416072
35	MAY W10208382
36	PIPE, EXHAUST (MEDIUM)
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY W10363954
40	PANEL, FRONT (COSMETALLIC)
41	MAY W10487430
42	SCREW
43	KIT, 4-WAY VENT
