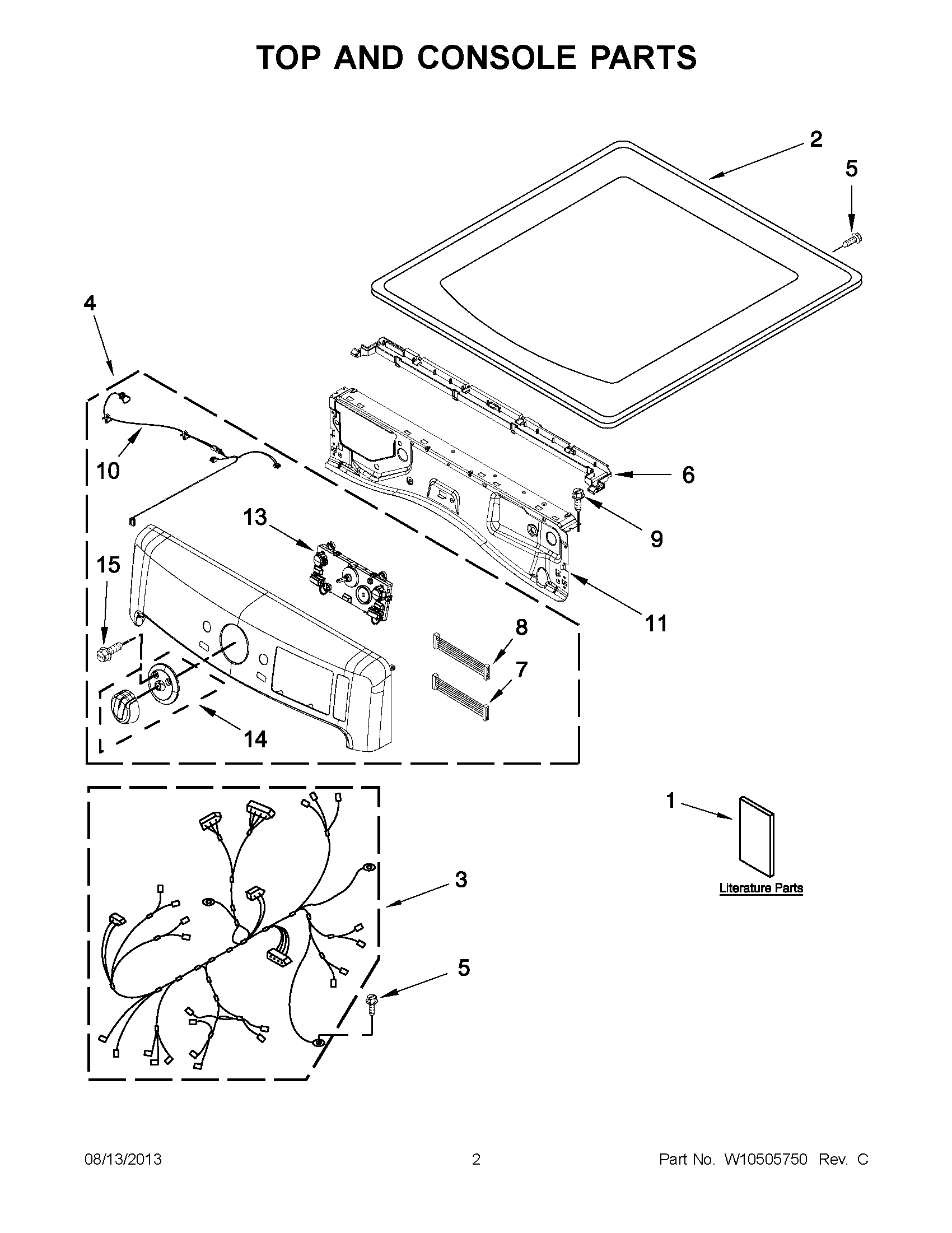

YMED7000XG3 01 – TOP AND CONSOLE PARTS

YMED7000XG3 01 – TOP AND CONSOLE PARTS

Written by

in

YMED7000XG3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10423115
1	MAY W10297011
1	USE AND CARE GUIDE
1	MAY W10420007
2	MAY W10301057
2	MAY W10208383
3	MAY W10441588
4	MAY W10464554
4	MAY W10464552
5	Screw
6	MAY W10259210
7	HARNESS, JUMPER
8	HARNESS, JUMPER
9	SCREW
10	MAY W10450060
11	MAY W10208198
13	MAY W10389298
14	MAY W10514146
15	MAY W10146359
