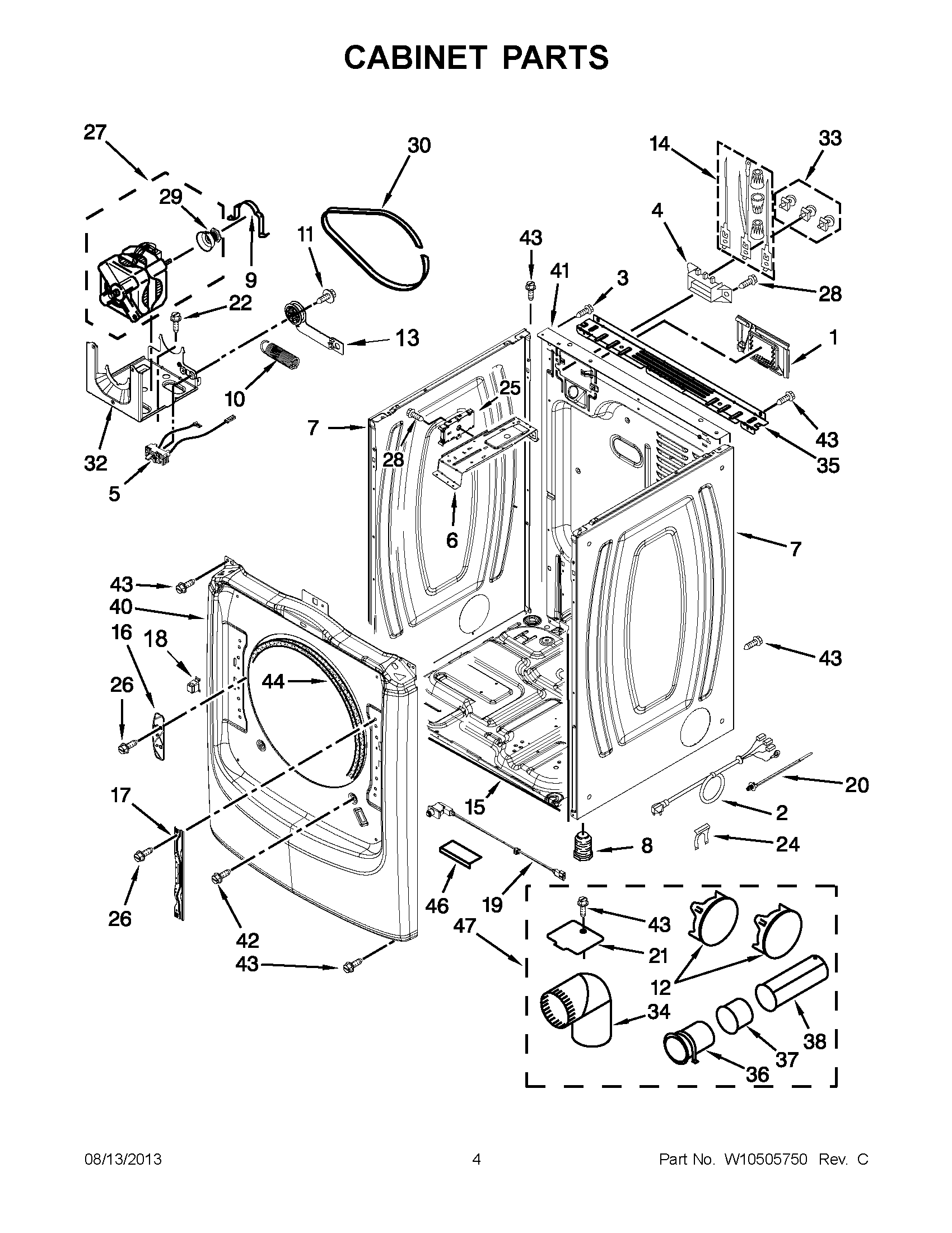

YMED7000XG3 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10316167
2	Power Cord
3	MAY 8533974
4	MAY 3397659
5	MAY W10411936
6	MAY W10259611
7	PANEL, SIDE (COSMETALLIC)
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	ASSEMBLY, IDLER
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8565046
16	MAY W10208250
17	MAY W10315109
18	MAY W10208401
19	DOOR SWITCH ASSEMBLY
20	MAY W10267532
21	MAY W10354249
22	SCREW
24	STRAIN-RELIEF CLIP
25	MAY W10378252
26	MAY W10288126
27	ASSEMBLY, MOTOR
28	SCREW,8-18 X 3/8
29	MAY W10460106
30	MAY W10112954
32	MAY W10242878
33	MAY 279393
34	MAY W10416072
35	MAY W10208382
36	PIPE, EXHAUST (MEDIUM)
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (LONG)
40	MAY W10464575
40	MAY W10464576
41	MAY W10487430
42	SCREW
43	SCREW
44	MAY 3387242
46	MAY W10215725
47	KIT, 4-WAY VENT
