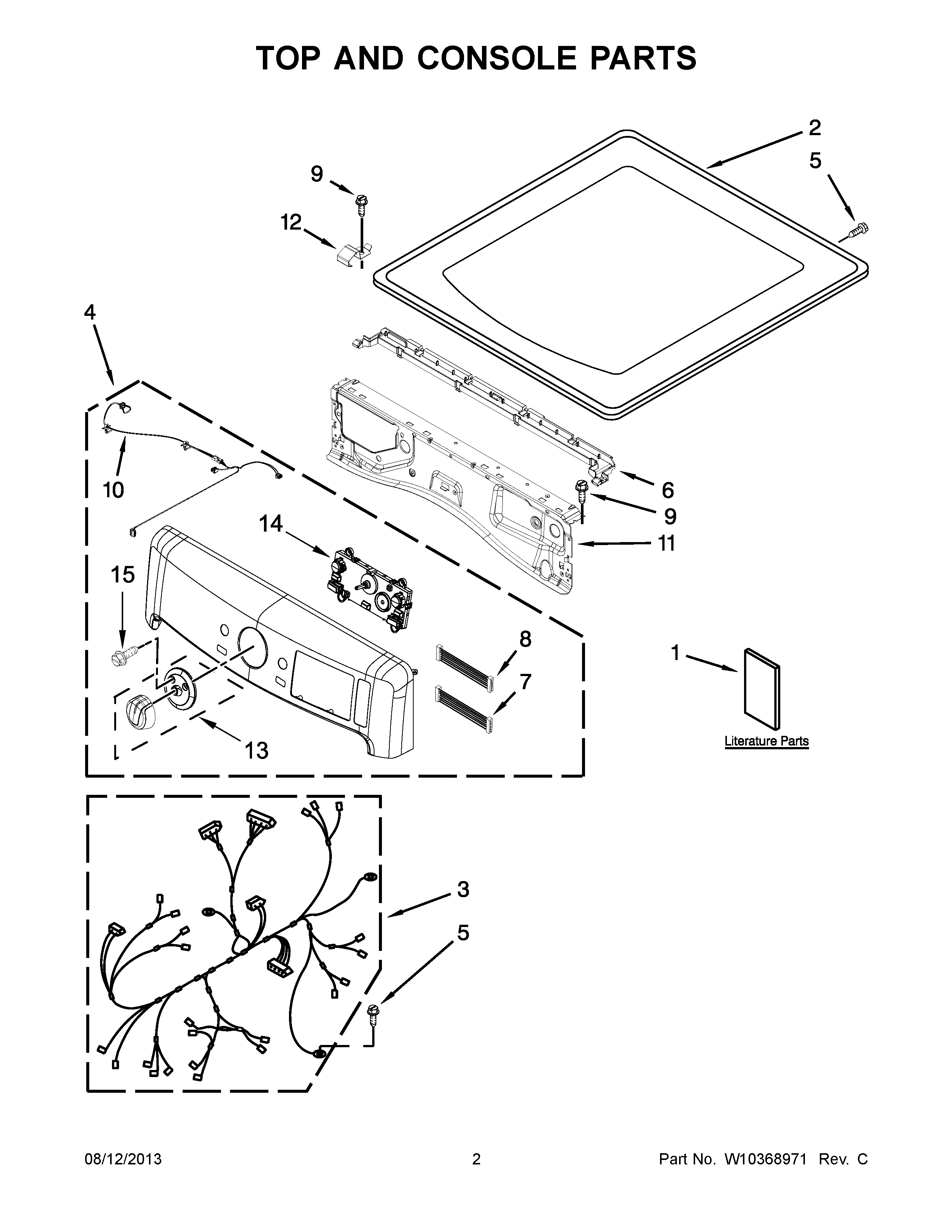

YMED7000XR0 02 – TOP AND CONSOLE PARTS

YMED7000XR0 02 – TOP AND CONSOLE PARTS

Written by

in

YMED7000XR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10057364
1MAY W10316958
1MAY W10297011
1USE AND CARE GUIDE
2MAY W10337792
2MAY W10301057
2MAY W10208383
3MAY W10355895
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (WHITE)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (COSMETALLIC)
4PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BOARD) (RED)
5Screw
6MAY W10317570
7HARNESS, JUMPER
8HARNESS, JUMPER
9SCREW
10MAY W10267833
11MAY W10208198
12MAY W10317566
13MAY W10514146
14MAY W10348583
15MAY W10146359
