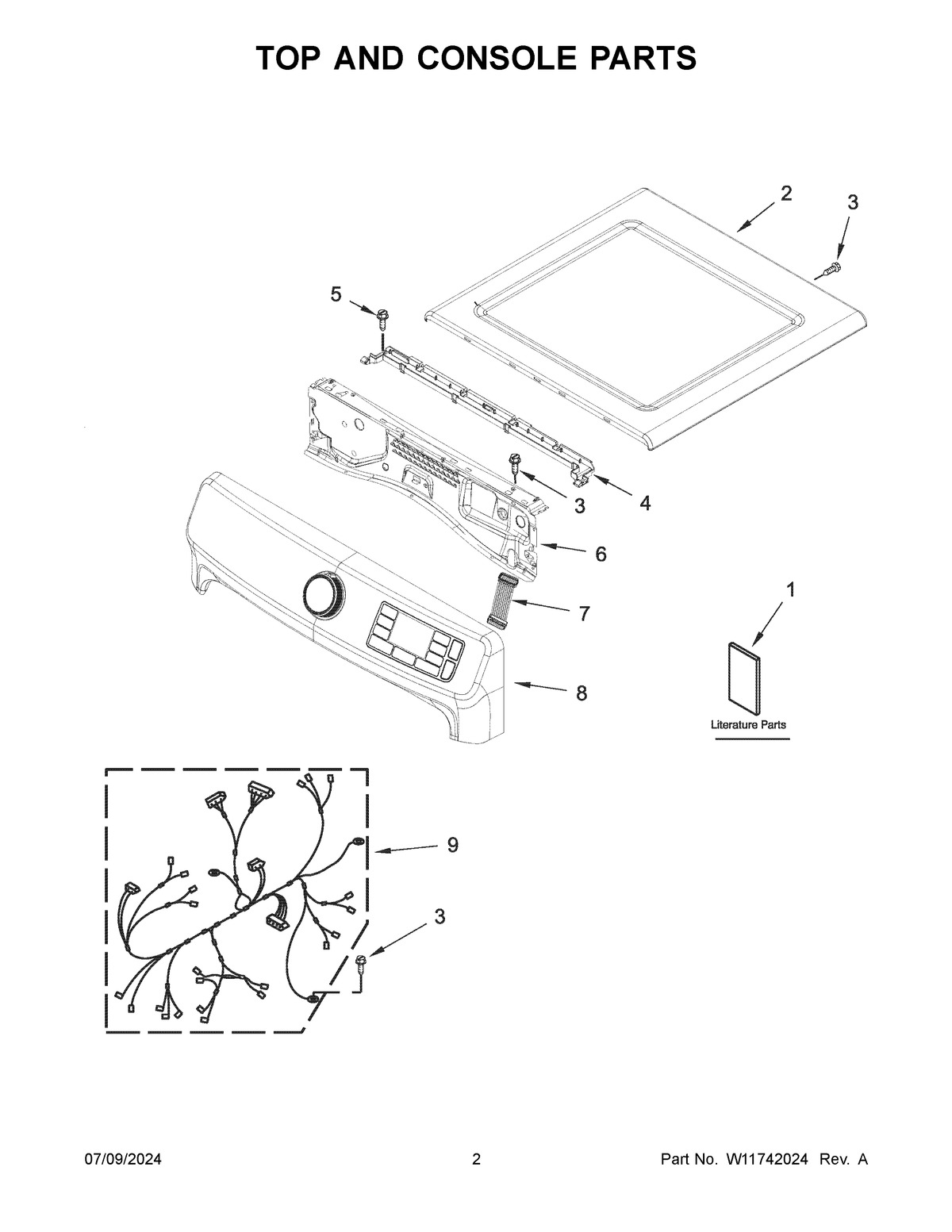

YMED7020RW0 02 – TOP AND CONSOLE PARTS

Written by

Products

Position	Product
1C	ENERGY GUIDE
1B	QUICK START GUIDE
1A	TECH SHEET
1	OWNERS MANUAL
2	WPW10208383 Whirlpool Top Panel
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11310027 Whirlpool Bracket
5	W11686675 Whirlpool Screw
6	W11480682 Whirlpool Bracket
7	JUMPER, HARNESS HMI (BOARD TO BOARD)
8	CONSOLE + CORE
9	HARNESS, WIRING (MAIN)
