YMED7020RW0 03 – CABINET PARTS

YMED7020RW0 03 – CABINET PARTS

Written by

in

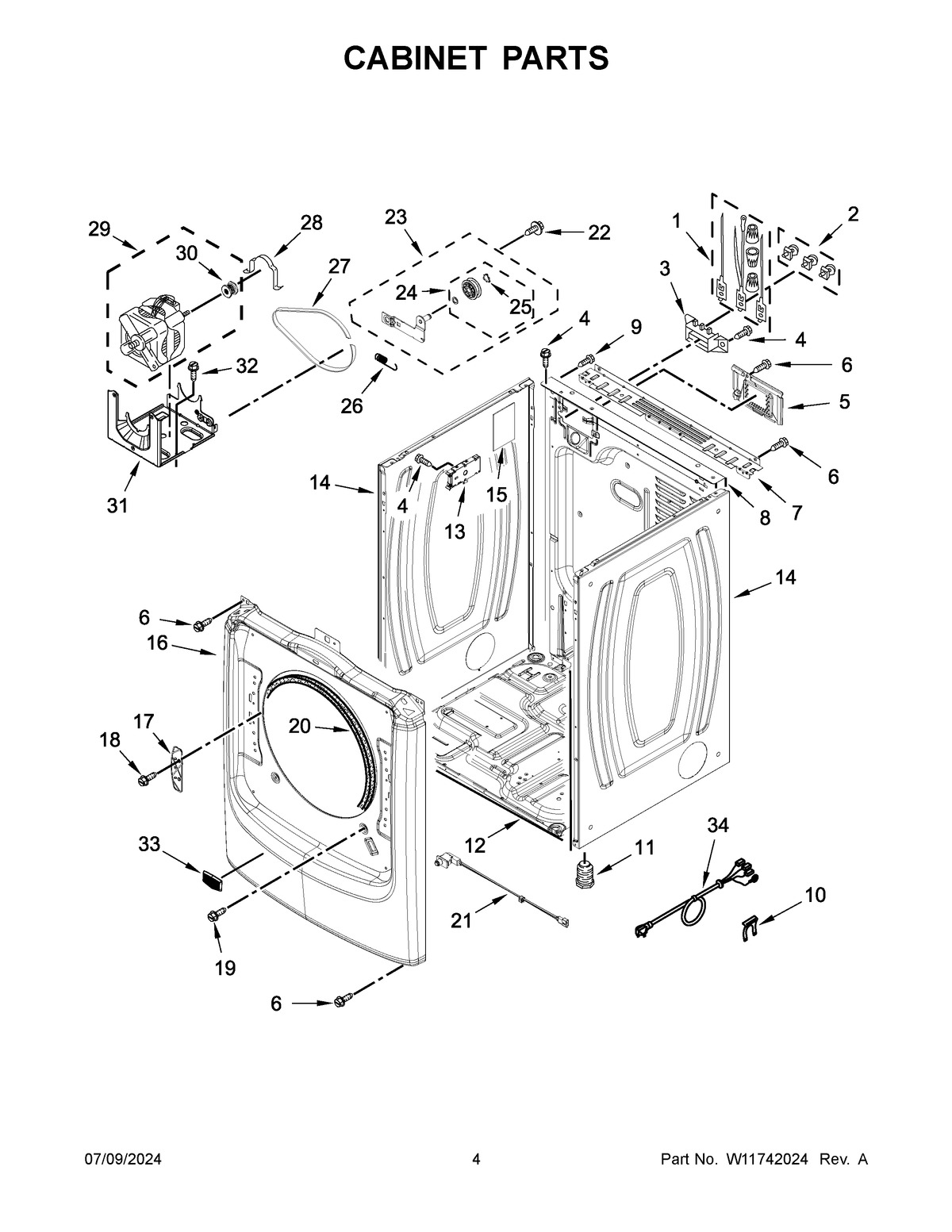

YMED7020RW0 03 – CABINET PARTS

Products

PositionProduct
NIW10323246 Whirlpool Dryer Vent Kit 4-Way
NI49621 Whirlpool Leveling Feet
1279318 Whirlpool Terminal
2279393 Whirlpool Terminal Block Screw and Nut Kit
3WP3397659 Whirlpool Terminal Block
4WP489463 Whirlpool Refrigerator Screw
5W11662367 Whirlpool Dryer Cover
6WP488729 Whirlpool Refrigerator Door Screw
7WPW10208382 Whirlpool Dryer Bracket
8W10487430 Whirlpool Rear Panel
9W10850756 Whirlpool Screw
10W11712577 Whirlpool Clip
12W11215531 Whirlpool Base
14W11233548 Whirlpool Panel
15W11409002 Whirlpool Pad
16W11491471 Whirlpool Panel
17WPW10208250 Whirlpool Strike
18SCREW
19WP308685 Whirlpool Microwave Screw
20WP3387242 Whirlpool Seal
21W11551763 Whirlpool Door Switch
22WP3389420 Whirlpool Screw
23W10837240 Whirlpool Dryer Idler Pulley
24279640 Whirlpool Dryer Idler Pulley Kit
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26WPW10446781 Whirlpool Spring
27W11667280 Whirlpool Belt Assembly
28CLAMP
29MOTOR-DRVE
30WP8066184 Whirlpool Dryer Motor Pulley
31W11481730 Whirlpool Bracket
32SCREW
33WPW10612925 Whirlpool Microwave Nameplate
34W11710615 Whirlpool Cord-Power
