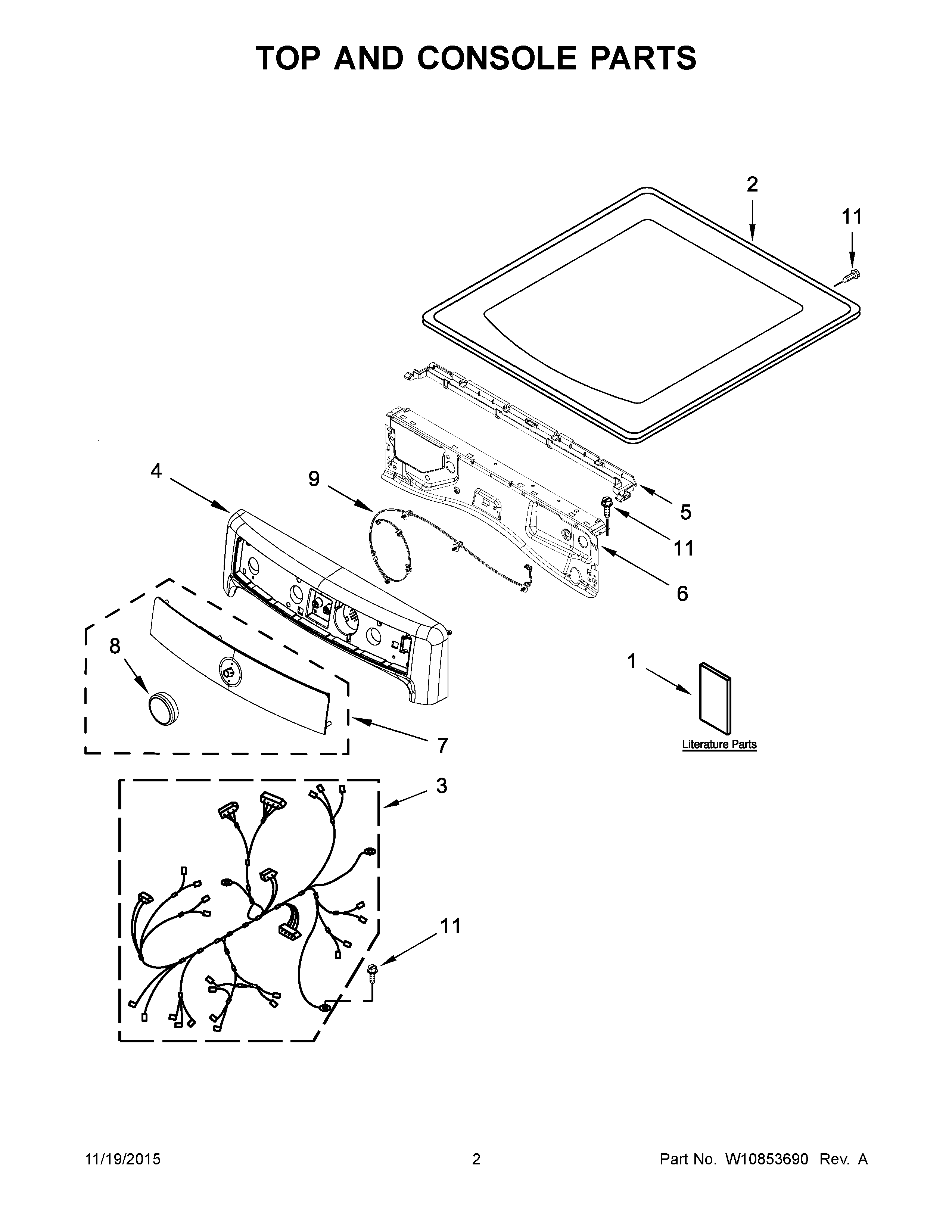

YMED7100DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1EMAY W10781884
1BTECH SHEET
1CMAY W10804376
1AMAY W10676163
1DQUICK START GUIDE
2ATOP (CHROME SHADOW)
2MAY W10208383
3MAY W10637534
4MAY W10391555
4ACONSOLE ASSEMBLY (CHROME SHADOW)
5WATER CHANNEL
6MAY W10208198
7MAY W10800517
7AMAY W10800518
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
