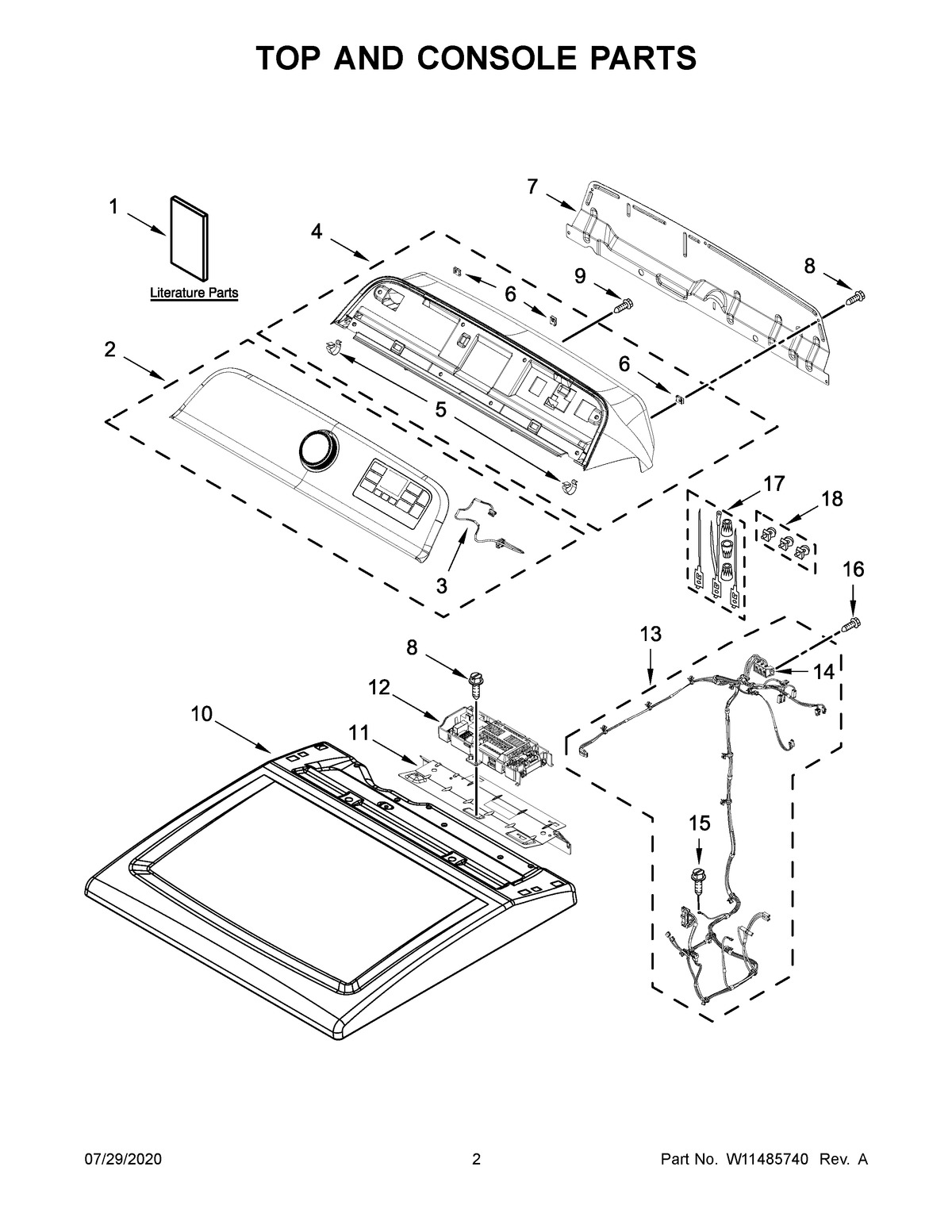

YMED7230HC1 02 – TOP AND CONSOLE PARTS

YMED7230HC1 02 – TOP AND CONSOLE PARTS

Written by

in

YMED7230HC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AMAY W11175222
1BQUICK START GUIDE
1INSTALLATION INSTRUCTIONS
2ASSEMBLY, CONSOLE FASCIA (COMPLETE)
3HARNESS, USER INTERFACE (HMI)
4CONSOLE (CHROME SHADOW)
5MAY 8312709
6NUT, "U"
7PANEL, REAR CONSOLE
8SCREW
9SCREW
10TOP (CHROME SHADOW)
11BRACKET, ELECTRONIC CONTROL
12APPLIANCE CONTROL UNIT (ACU)
13HARNESS, MAIN WIRING
14MAY 3397659
15MAY 359625
16SCREW, 10-16 X 1/2
17TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18MAY 279393
