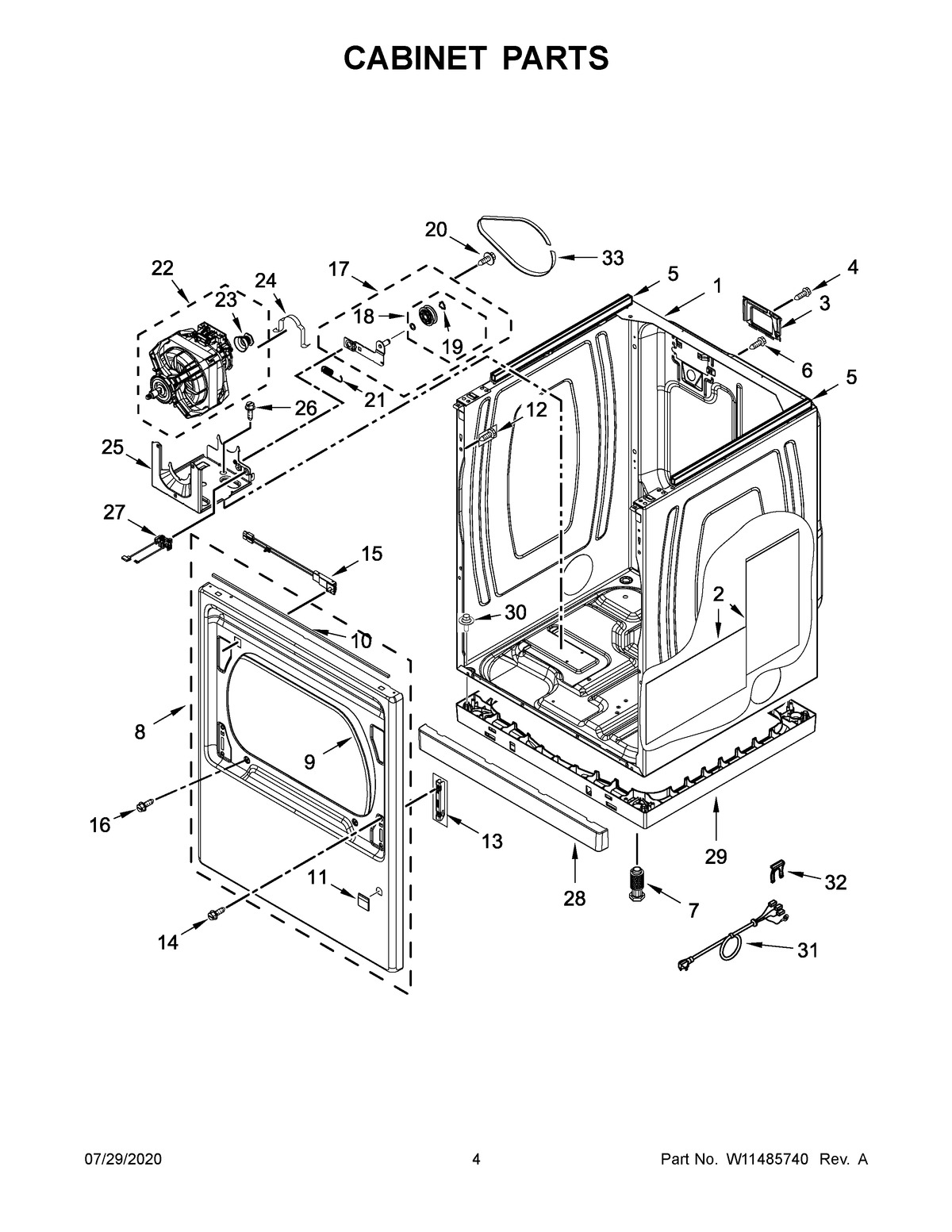

YMED7230HC1 03 – CABINET PARTS

Products

Position	Product
1	CABINET (CHROME SHADOW)
2	PANEL, DAMPENING
3	COVER, TERMINAL BLOCK
4	SCREW
5	SEAL, FOAM
6	SCREW
7	FOOT, DRYER
8	PANEL, FRONT (CHROME SHADOW)
9	MAY 3387242
10	SEAL, FOAM
11	PLUG, FRONT PANEL (CHROME SHADOW)
12	SCREW
13	HINGE, INNER DOOR (RECEPTACLE)
14	SCREW
15	ASSEMBLY, DOOR SWITCH
16	SCREW
17	ASSEMBLY, IDLER
18	MAY W10468057
19	WASHER, TRI RING
20	SCREW
21	MAY W10446781
22	ASSEMBLY, MOTOR
23	MAY W10460106
24	CLAMP, MOTOR MOUNT
25	BRACKET, MOTOR MOUNTING
26	SCREW
27	SWITCH, BROKEN BELT
28	RISER, SKIRT (CHROME SHADOW)
29	RISER, WASHER (CHROME SHADOW)
30	SCREW W/WASHER
31	CORD, POWER
32	STRAIN-RELIEF CLIP
33	MAY 3387610
