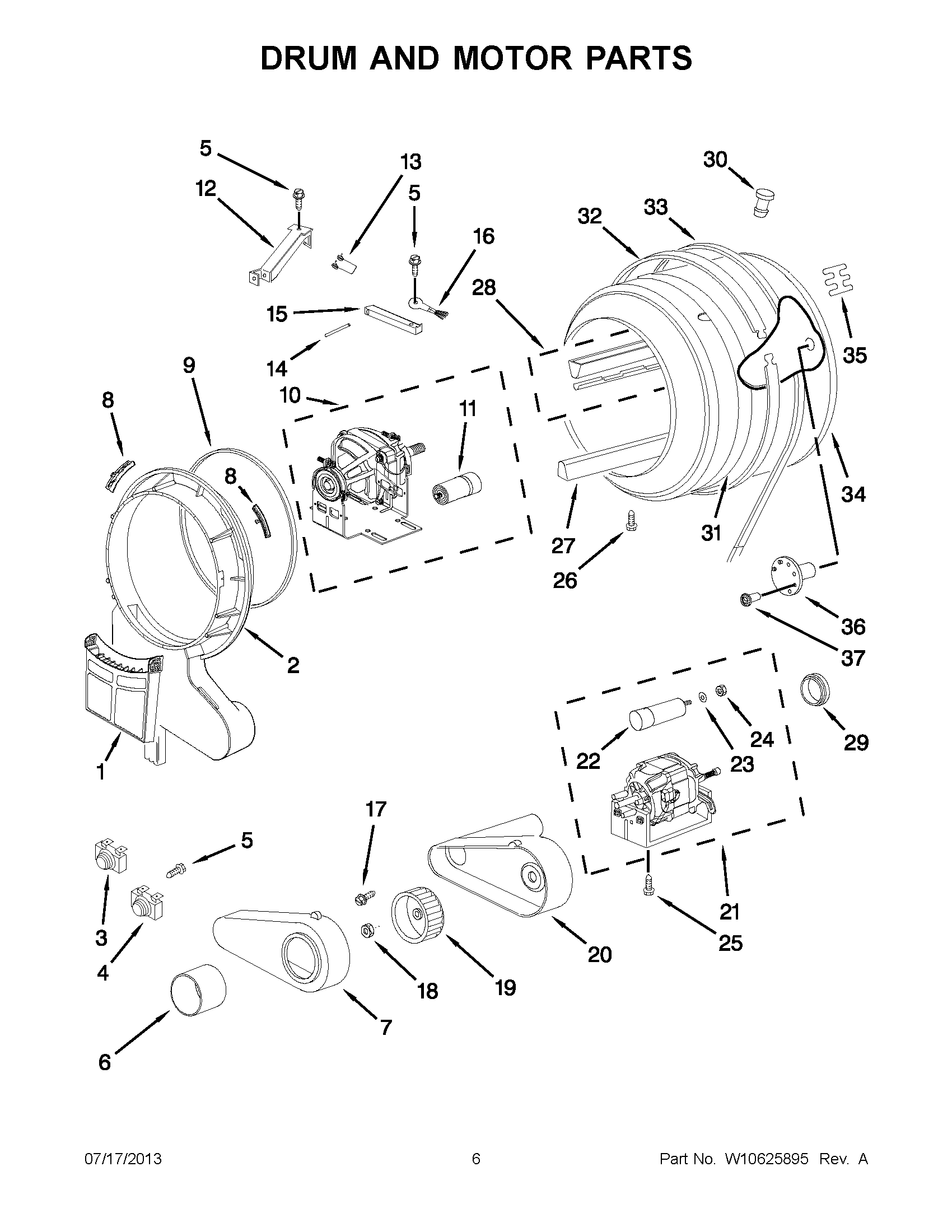

YMED7500YW1 03 – DRUM AND MOTOR PARTS

Products

Position	Product
1	MAY 8182489
2	MAY 8182485
3	THERMOSTAT, 203F (95C)
4	THERMOSTAT, OPERATING 122F
5	MAY 8182323
6	MAY 8182478
7	MAY 8182631
8	MAY 8182492
9	MAY 8182692
10	DRIVE MOTOR
12	MAY 8182499
13	MAY 8182494
14	MAY 8182501
15	MAY 8182498
16	MAY 8182500
17	MAY 8183100
18	NUT, BLOWER WHEEL
19	BLOWER WHEEL
20	MAY 8183099
21	MAY 8182472
22	MAY 8182473
23	MAY 8182580
24	MAY 8182579
25	MAY 8182486
26	MAY 8182488
27	BAFFLE (NO STEEL STRIP)
28	BAFFLE (WITH STEEL STRIP)
29	MAY 8182468
30	MAY 8183103
31	MAY 8182497
32	MAY 8182496
33	MAY 8182481
34	DRUM ASSEMBLY
35	MAY 8182493
37	LINER (NOT A SERVICEABLE PART)
