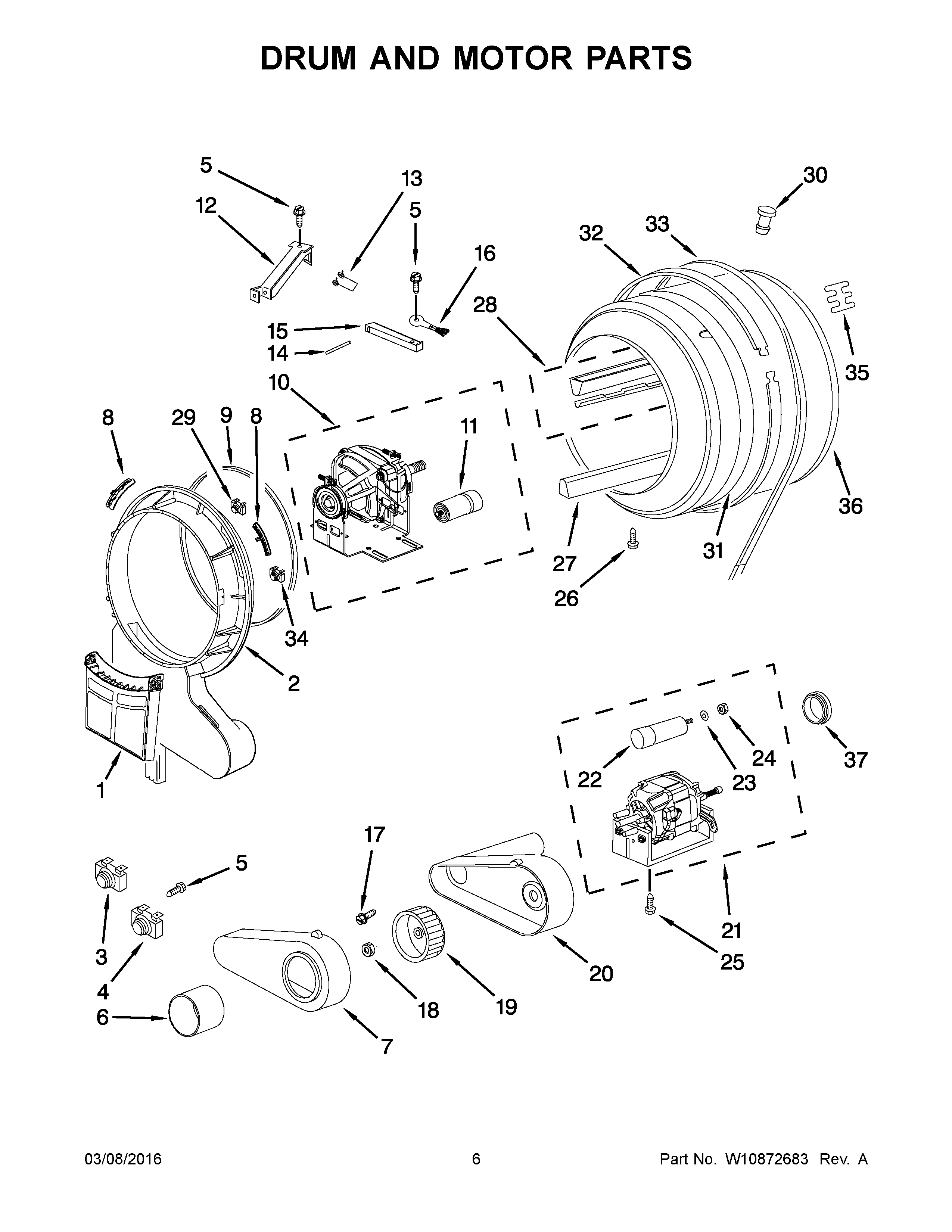

YMED7500YW2 04 – DRUM AND MOTOR PARTS

Products

Position	Product
1	MAY 8182489
2	MAY W10870285
3	THERMOSTAT, 203F (95C)
4	THERMOSTAT, OPERATING 122F
5	MAY 8182323
6	MAY 8182478
7	MAY W10238692
8	MAY W10119103
9	MAY 8182692
10	DRIVE MOTOR
11	LINER (NOT A SERVICEABLE PART)
12	MAY 8182499
13	MAY 8182494
14	MAY 8182501
15	MAY 8182498
16	MAY 8182500
17	MAY 8182458
18	NUT, BLOWER WHEEL
19	BLOWER WHEEL
20	MAY W10238691
21	MAY 8182472
22	MAY 8182473
23	MAY 8182580
24	MAY 8182579
25	SCREW, MOTOR
26	MAY 8182488
27	BAFFLE (NO STEEL STRIP)
28	BAFFLE (WITH STEEL STRIP)
29	MAY W10870283
30	MAY 8183103
31	MAY 8182497
32	MAY 8182496
33	MAY 8182481
34	MAY W10870284
35	MAY 8182493
36	DRUM ASSEMBLY
37	MAY W10296394
