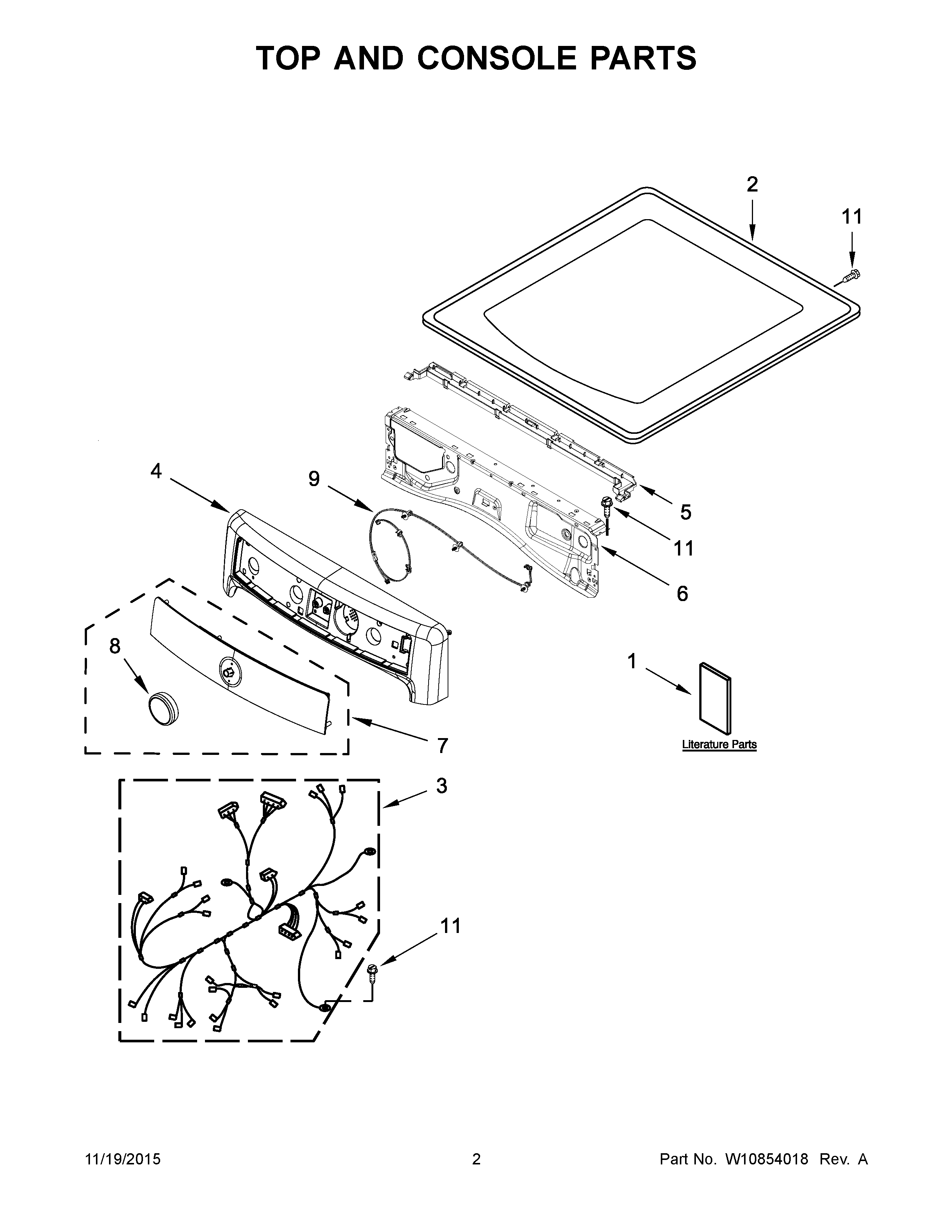

YMED8100DC1 02 – TOP AND CONSOLE PARTS

YMED8100DC1 02 – TOP AND CONSOLE PARTS

Written by

in

YMED8100DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1BTECH SHEET
1EMAY W10781884
1CMAY W10804376
1AMAY W10676163
1DQUICK START GUIDE
2ATOP (CHROME SHADOW)
2MAY W10208383
3MAY W10637534
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5WATER CHANNEL
6MAY W10208198
7MAY W10800519
7AMAY W10800520
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
