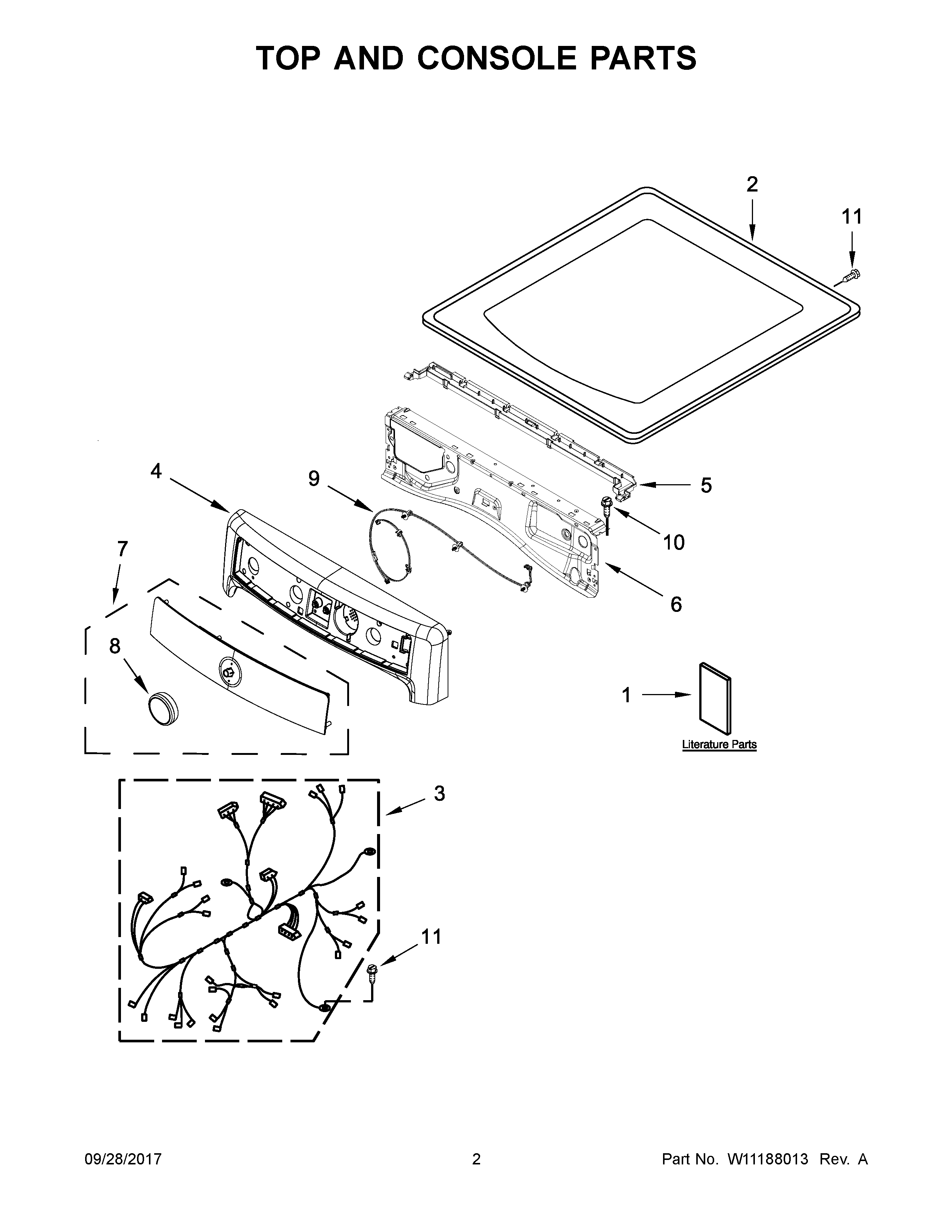

YMED8200FC1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1A	TECH SHEET
1	USE AND CARE GUIDE
1E	ENERGY GUIDE
1D	QUICK START GUIDE
1C	MAY W10804376
2A	TOP (CHROME SHADOW)
2	MAY W10208383
3	MAY W10637534
4A	CONSOLE ASSEMBLY (CHROME SHADOW)
4	MAY W10391555
5	WATER CHANNEL
6	MAY W10208198
7	ASSEMBLY, IML (WHITE)
7A	ASSEMBLY, IML (CHROME SHADOW)
8	ASSEMBLY, CONTROL KNOB (CHROME)
9	MAY W10540653
10	MAY W10489172
11	SCREW
