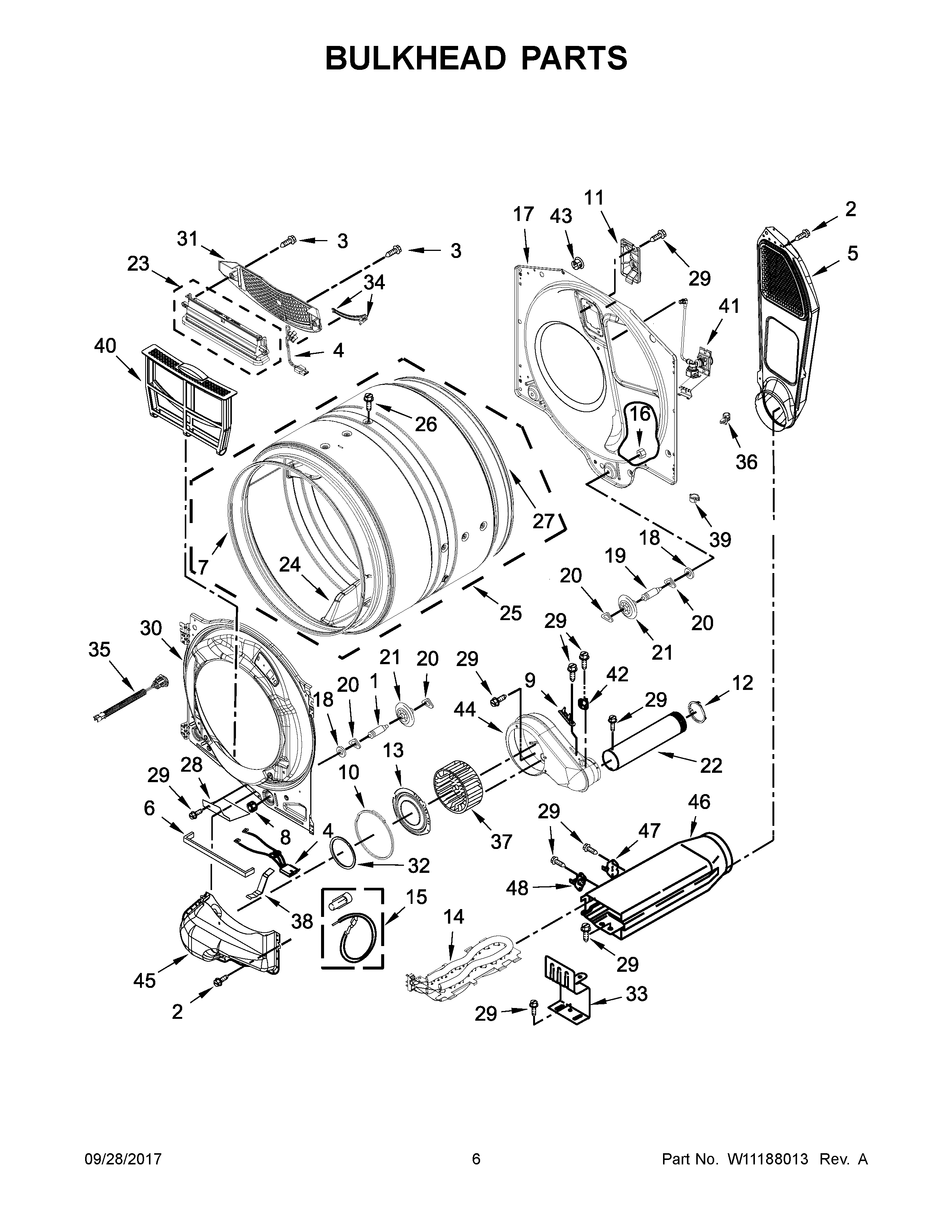

YMED8200FC1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	SCREW
4	MAY W10298258
5	ASSEMBLY, AIR DUCT
6	MAY W10211950
7	MAY W10521122
8	NUT, HEX
9	FUSE, THERMAL (91C)
10	SEAL, PLATE COVER
11	MAY W10208422
12	MAY W10344699
13	MAY W10211901
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10342188
23	ASSEMBLY, OUTLET GRILL AND HOUSING
24	MAY W10280771
25	MAY W10541657
26	MAY W10219342
27	MAY W10521118
28	MAY W10128629
29	Screw
30	BULKHEAD, FRONT
31	GRILL, OUTLET
32	MAY W10211899
33	MAY 8066099
34	SENSOR, ELECTRODE
35	MAY W10460935
36	MAY 3391018
37	MAY W10211915
38	MAY W10414388
39	MAY W10044599
40	LINT SCREEN (WHITE)
41	VALVE AND HOSE ASSEMBLY
42	THERMISTOR
43	MAY 8529007
44	MAY W10211911
45	MAY W10211896
46	ASSEMBLY, WELD HEATER BOX
47	KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THERMOSTAT)
48	MAY 8557403
