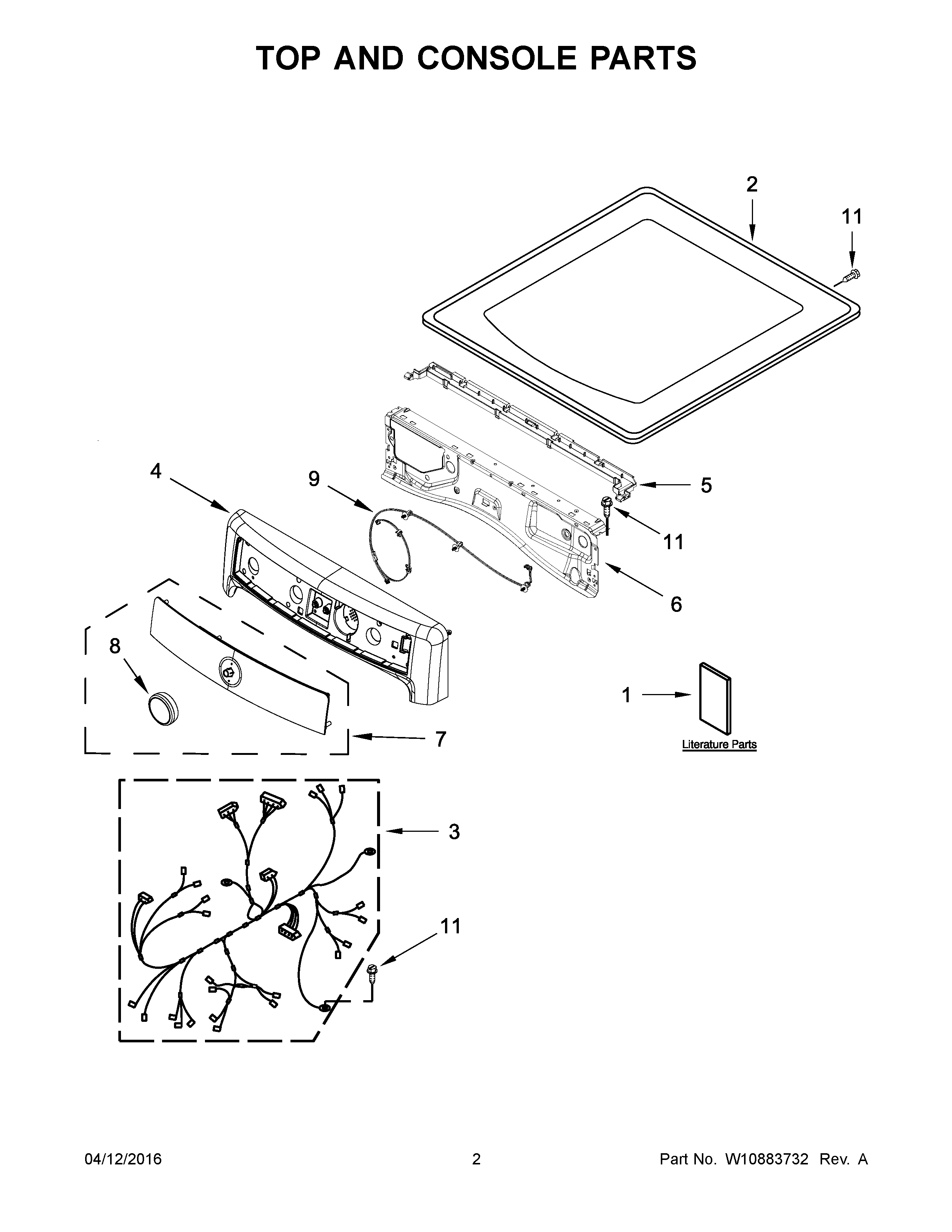

YMED8200FW0 02 – TOP AND CONSOLE PARTS

YMED8200FW0 02 – TOP AND CONSOLE PARTS

Written by

in

YMED8200FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DQUICK START GUIDE
1ATECH SHEET
1USE AND CARE GUIDE
1EENERGY GUIDE
1BMAY W10775221
1CMAY W10804376
2ATOP (CHROME SHADOW)
2MAY W10208383
3MAY W10637534
4ACONSOLE ASSEMBLY (CHROME SHADOW)
4MAY W10391555
5WATER CHANNEL
6MAY W10208198
7MAY W10783694
7AMAY W10783696
8ASSEMBLY, CONTROL KNOB (CHROME)
9MAY W10540653
10MAY W10489172
11SCREW
