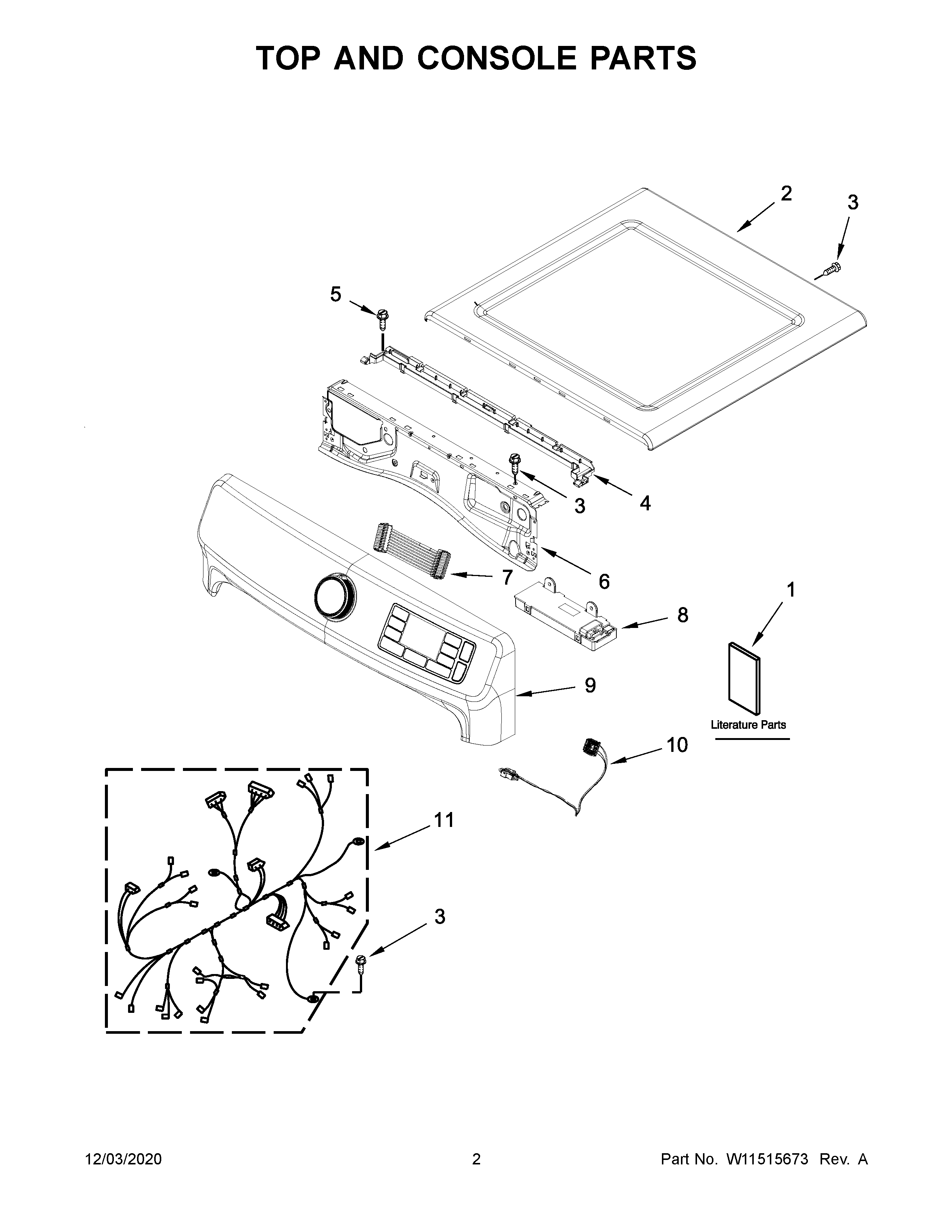

YMED8630HC2 02 – TOP AND CONSOLE PARTS
Written by
in
YMED8630HC2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1B
WIRING DIAGRAM
1C
QUICK START GUIDE
1A
TECH SHEET
1
OWNERS MANUAL
2
WPW10460919 Whirlpool Top
3
WP488729 Whirlpool Refrigerator Door Screw
4
W11310027 Whirlpool Bracket
5
W11686675 Whirlpool Screw
6
W11480682 Whirlpool Bracket
7
W11316625 Whirlpool Wire Harness
8
W11316276 Whirlpool Refrigerator Electronic Control Board
9
W11367320 Whirlpool Console + Core
10
W11315705 Whirlpool Wire Harness
11
HARNESS, WIRING (MAIN)
←
