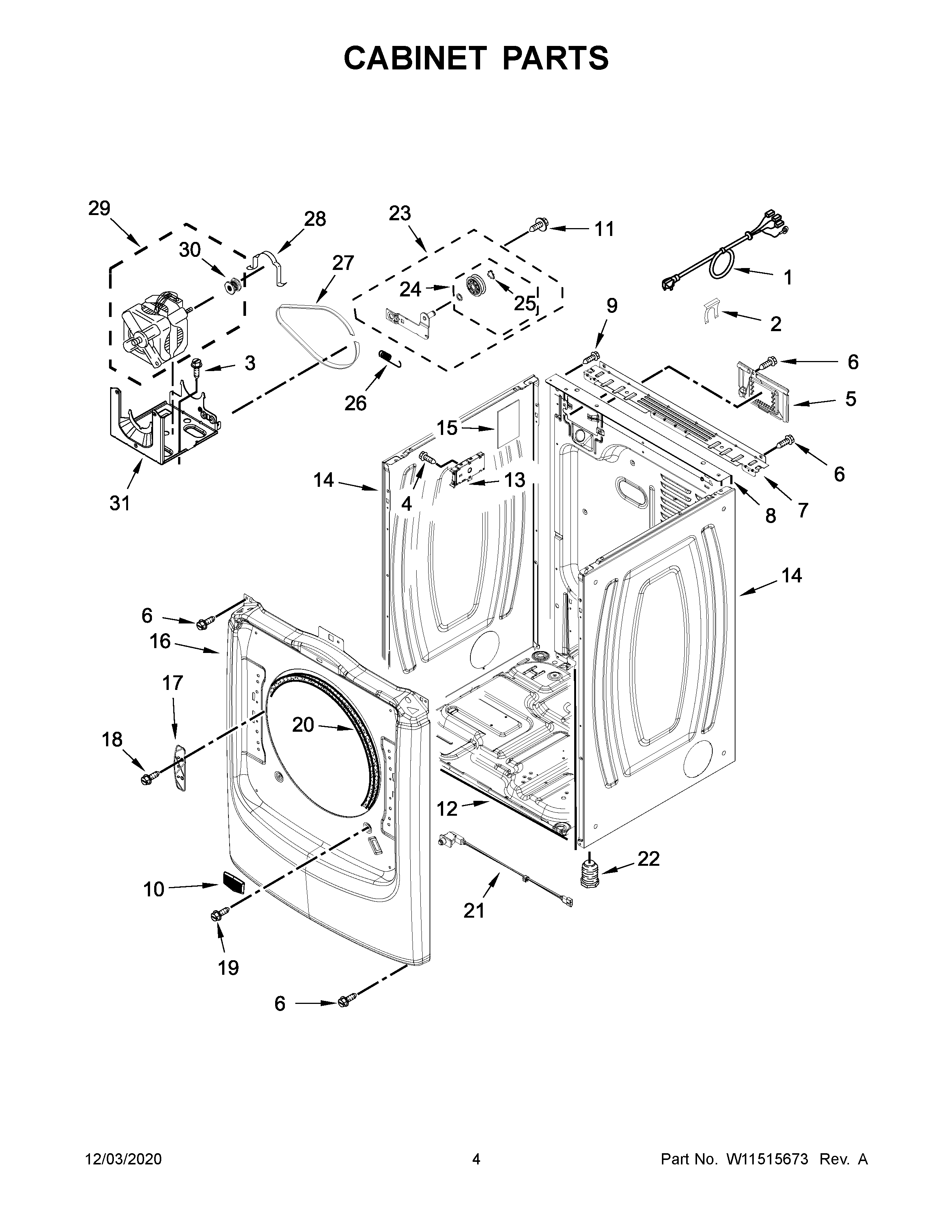

YMED8630HC2 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	W11710615 Whirlpool Cord-Power
2	W11712577 Whirlpool Clip
3	SCREW
4	WP489463 Whirlpool Refrigerator Screw
5	W11662367 Whirlpool Dryer Cover
6	WP488729 Whirlpool Refrigerator Door Screw
7	WPW10208382 Whirlpool Dryer Bracket
8	W10487430 Whirlpool Rear Panel
9	W10850756 Whirlpool Screw
10	W10908007 Whirlpool Medallion
11	WP3389420 Whirlpool Screw
12	W11215531 Whirlpool Base
13	W11512534 Whirlpool Electronic Control Board + Core
14	W11315726 Whirlpool Panel Assembly
15	W11409002 Whirlpool Pad
16	W11491749 Whirlpool Panel
17	WPW10208250 Whirlpool Strike
18	SCREW
19	WP308685 Whirlpool Microwave Screw
20	WP3387242 Whirlpool Seal
21	W11551763 Whirlpool Door Switch
23	W10837240 Whirlpool Dryer Idler Pulley
24	279640 Whirlpool Dryer Idler Pulley Kit
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	WPW10446781 Whirlpool Spring
27	661570V Whirlpool Dryer Drum Belt
28	CLAMP
29	MOTOR-DRVE
30	WP8066184 Whirlpool Dryer Motor Pulley
31	W11481730 Whirlpool Bracket
